Summary of Contents for JUMAR REG-03TFT

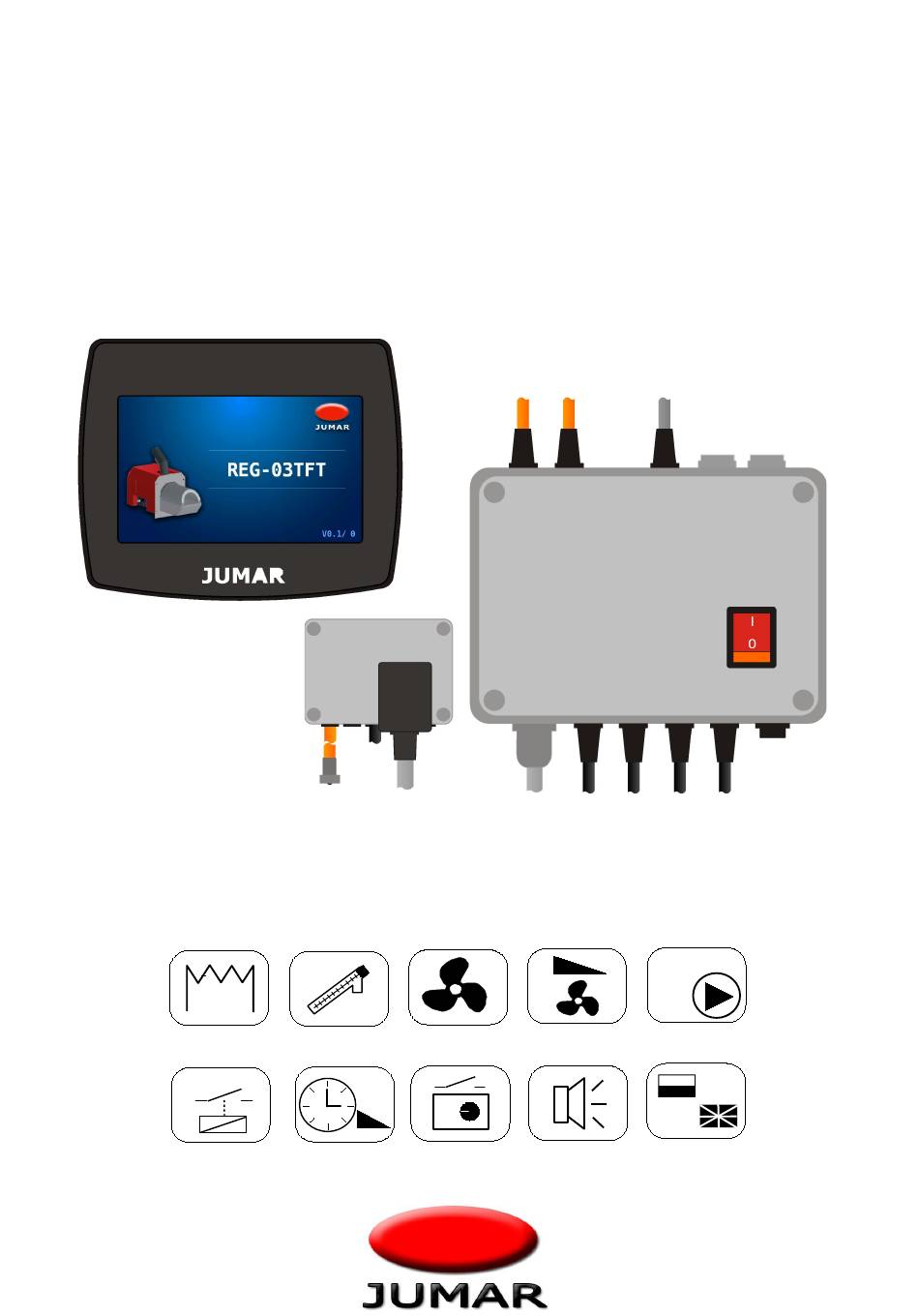

- Page 1 JUMAR REG-03TFT MICROPROCESOR CONTROLLER OF THE PELLET'S BURNER REG-03 TFT v1.0 INSTRUCTION OF INSTALLING AND THE MAINTENANCE FAN SPEED IGNITER CH PUMP FEEDER REGULATOR ºC ALARMS CLOCK ROOM LANGUAGES THERMOSTAT /TIMER IN-BUILD - 1 -...
- Page 2 JUMAR REG-03TFT - 2 -...
-
Page 3: Table Of Contents
JUMAR REG-03TFT TABLE OF CONTENTS SAFETY OF OPERATIONAL USE................5 INSTALLATION GUIDANCE.................5 TECHNICAL DATA....................6 THE IMPLEMENTATION..................7 THE PRICIPLE OF WORKING................7 THE CONNECTION DIAGRAM................8 THE DRIVER'S HANDLING................12 OPERATION CONTROLLER................14 ALARMS......................16 WORKING MODES..................18 MENU STRUCTURE..................20 CENTRAL HEATING TEMPERATURE SETTINGS.............21 WARM USAGE WATER TEMPERATURE SETTINGS (optional)........21 SETTINGS' TABLES..................22... - Page 4 Before installing please read the instruction carefully and get to know the functioning of the driver. Any questions occur, contact with the JUMAR company. P.P.U.H JUMAR Jerzy Podhajski ul. Opawska 112 47-400 Racibórz...
-
Page 5: Safety Of Operational Use
JUMAR REG-03TFT SAFETY OF OPERATIONAL USE Before using read carefully the instruction. Installing and connecting the regulator should be done by a professional staff. All available safety requirements should be taken into consideration. Before switching the regulator on, the accuracy of all connections ought to be checked. -
Page 6: Technical Data
JUMAR REG-03TFT TECHNICAL DATA Burner handling: to 500kW * Sensors: KTY / PT1000 / NTC * Measurement range: -30 – 120°C / -30 – 400°C / -30 - 250°C * Measurement resolution: 0.1 °C Time of measurements: Data's reading: TFT display with touch screen 3" or 5" *... -
Page 7: The Implementation
JUMAR REG-03TFT THE IMPLEMENTATION REG – 03TFT controller is a modern microprocessor device controlling the work of the pellet's burner. Implementation of advanced driver's algorithm and the flame sensor ensures the simplicity of maintenance and the full automatization of the burning process. -
Page 8: The Connection Diagram
JUMAR REG-03TFT THE CONNECTION DIAGRAM The figure above shows a scheme demonstrating connection of sensors and controlling elements to the controller. Before connecting the regulator to network, it is necessary to check all the connections carefully. One has to take particular note of not placing ~230V power supply cables instead of the sensor. - Page 9 JUMAR REG-03TFT CONNECTION DESCRIPTION Terminal Input/ Designation Description Output input Power supply connector input input Main fuse connector 4A input output Igniter connector output output Central heating pump connector output output Cleaning system connector * Warm usage water pump connector *...
- Page 10 JUMAR REG-03TFT Terminal Input/ Designation Description Output BSTB input ° ° Burner feeder sensor connector (bimetal 75 C - 90 input PL (+) input Fire sensor connector (opto element) GND (-) input output Igniter connector output Air fan connector output...
- Page 11 JUMAR REG-03TFT In the picture below, illustrates an example of placing sensors: Sensor Designation Name Description STB sensor (securing sensor) has to be places in Sensor the boiler along with the CH sensor. Central heating water sensor (CH). Sensor The sensor protects the burner against excessive...
-
Page 12: The Driver's Handling
JUMAR REG-03TFT THE DRIVER'S HANDLING After switching the driver on, on the LCD screen appears the programme's logo defining the type of the driver and the manufacturer's logo. VERSION After a few seconds controller show measurement panel. The following figure shows an example of the appearance of LCD screens. - Page 13 JUMAR REG-03TFT Additionally, the user is required to set the date of the burner on the first start. From that moment, the warranty of the control device is counted. If some problems with the device or configuration will be appear, please contact with service.
-
Page 14: Operation Controller
JUMAR REG-03TFT OPERATION CONTROLLER The main screen is divided into panels: HEATING PANEL, HUW PANEL, BURNER PANEL. The figure below shows how to switch between panels. - 14 -... - Page 15 JUMAR REG-03TFT The last panel shows the operation of boiler elements and the burner: fan, igniter, feeder, pump, values from sensors. TEMPERATURE IGNITER FEEDER SENSOR INTERNAL CHIMNEY BURNER AIR FAN FEEDER SENSOR SENSOR ROOM THERMOSTAT/ AIRFAN BURNER FIRE EXTERNAL CONTROL...
-
Page 16: Alarms
JUMAR REG-03TFT ALARMS If the sensor is damaged or it is not connected, the temperature display will show a "–-" image along with giving sound alarm. The alarm is switched off automatically after failure removal (connecting the sensor or replacing it with a new one). The figure below visualized an exemplary screen informing about missing sensor or sensor damage: The alarm will be also activated, if the temperature exceeds safe value (90ºC). - Page 17 JUMAR REG-03TFT The controller also monitors the temperature of burner's case. If the temperature will exceed above pre-set value, the controller will launch the burner protection procedures and display a message: The burner's operation is blocked during alarm. After decreasing the temperature below critical, the controller automatically returns into previous state.
-
Page 18: Working Modes
JUMAR REG-03TFT WORKING MODES The controller may work in two working modes („ON”, „OFF”). The „OFF” mode activates procedures connected with the burner's putting out i.e. burning off and cleaning. . FUNCTIONS FUNCTION NAME DESCRIPTION STOP Burner stopped. FILLING Filling the feeder. - Page 19 JUMAR REG-03TFT While activating the driver for the first time, the „OFF” mode is activated. Every next time, its status is saved in the regulator's non-volatile memory. Activating the driver again, automatically causes switching on of the lately used working mode.
-
Page 20: Menu Structure
JUMAR REG-03TFT MENU STRUCTURE The controller menu is divided into eight groups: „HEATING”, „HUW”, „BURNER”, „DEVICE”, „CLOCK”, „TIMER”, „LOGS”, „SERVICE”. The following figures show how to navigate between menus. - 20 -... -
Page 21: Central Heating Temperature Settings
JUMAR REG-03TFT CENTRAL HEATING TEMPERATURE SETTING The controller has an ability to set heating temperature in the range of minimum temperature to 85°C (KTY sensor) or to 350°C (PT1000 sensor) or to 250°C (NTC sensor). After reaching the set temperature, the controller switches into maintain/pause mode or completely turns the burner off. -
Page 22: Settings' Tables
JUMAR REG-03TFT SETTINGS' TABLES ➢ HEATING SETTINGS: PARAMETER PARAMETER UNIT SETTING DEFAULT NAME RANGE VALUE CH PUMP TEMPERATURE °C 20 – 80/200/300°C * 35°C CH HYSTERESIS °C 1 – 30/50/100°C * 2°C MINIMUM CH TEMPERATURE °C 15 - 60°C 35°C ➢... - Page 23 JUMAR REG-03TFT ➢ TIMER SETTINGS: PARAMETER PARAMETER UNIT SETTING DEFAULT NAME RANGE VALUE DAY / MO – SU / TIMERS SETTINGS HOURS / 00 – 23 / STATE 1/2/3 ➢ SYSTEM LOGS: PARAMETER PARAMETER UNIT SETTING DEFAULT NAME RANGE VALUE...
-
Page 24: Parameters
JUMAR REG-03TFT PARAMETERS MENU HEATING In this group of adjustments, the user has the ability to set the adjustments related to temperature. Given below are the parameters you can change. Parameter's description: Parameter Description name The threshold temperature of starting the pump of the central heating (CH pump). -
Page 25: Menu Wuw
JUMAR REG-03TFT MENU WUW In this menu, the user sets the temperature of the warm water usage. Given below are the parameters you can change. Parameter's description: Parameter Description name If the priority is set on “CH” the boiler heats the heating water and simultaneously the useful warm water. -
Page 26: Menu Burner
JUMAR REG-03TFT MENU BURNER In this group of adjustments, the user has the ability to set the adjustments related to the burner. Given below are the parameters you can change. Parameter's description: No Parameter Description name The power of the burner in the working function (the temperature of the heating water is lower than the pre-set). - Page 27 JUMAR REG-03TFT During the first start-up of the burner or when detecting a lack of fuel, it is necessary to backfill the feeder pipe. The "FILL" function is used in the BURNER menu. This function works only in "STOP" mode.
-
Page 28: Menu Timer
JUMAR REG-03TFT MENU TIMER In this group of adjustments, the user has the ability to set the time programs determining the burner's operation time. For correct operation of the timer, it is necessary to set the current day of the week and the current time in the "CLOCK"... - Page 29 JUMAR REG-03TFT Different types of burner operation can be set for each hour. The following variants are available: Icon Description The burner is working normally. Burner is switched off. The burner automatically switches to BURNING OFF mode and next to the STANDBY mode.
-
Page 30: Menu Clock
JUMAR REG-03TFT MENU CLOCK In this group of settings, the user has ability to set current day of the week and time. It is very important to set these parameters, e.g. in order to ensure correct function of time programs. Data and time are kept after lack of power for approx. 48 hours. -
Page 31: Menu Device
JUMAR REG-03TFT MENU DEVICE In this group of adjustments, the user has ability to change the parameters of controller's function. Parameter's description: Parameter Description name CHOICE Changing the menu language. LANGUAGE SOUND Enable/disable screen touch sounds. TIMER Enable/disable timer function. -
Page 32: System Logs
JUMAR REG-03TFT SYSTEM LOGS Counters for errors and alarms generated by the controller are available in this group. Saved errors are kept in the non-volatile memory of the controller and one can delete them using service codes only. Only device's manufacturer or service technician have access to them. -
Page 33: Terms Of Warranty
3. JUMAR will repair or replace equipment in possibly short time, appropriate to the damage complication degree (maximum of 14 working days or 31 if this requires shipping of hardly available parts). - Page 34 6. In order to avoid unnecessary complications and inconveniences, prior to contacting the service, we suggest reading the INSTRUCTION MANUAL carefully or contacting JUMAR. JUMAR's responsibility is limited to the value equalling the price of faulty product. P.P.U.H JUMAR Jerzy Podhajski ul. Opawska 112 47-400 Racibórz...
-
Page 35: Notes
JUMAR REG-03TFT NOTES - 35 -...
