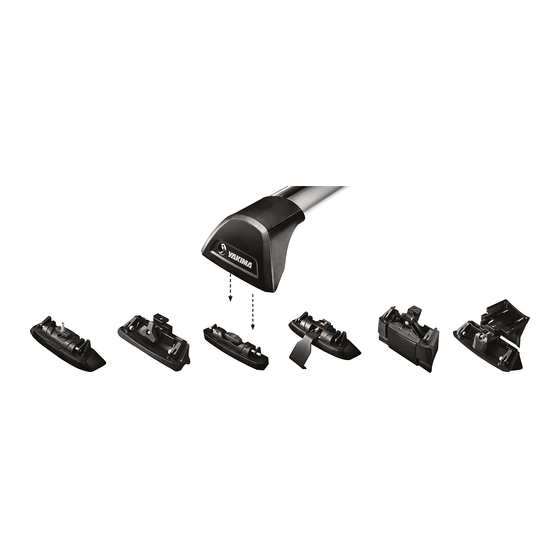

- Page 1 K455 Fitting Kit GB Fitting Instructions for Basic Carrier Revision No:...

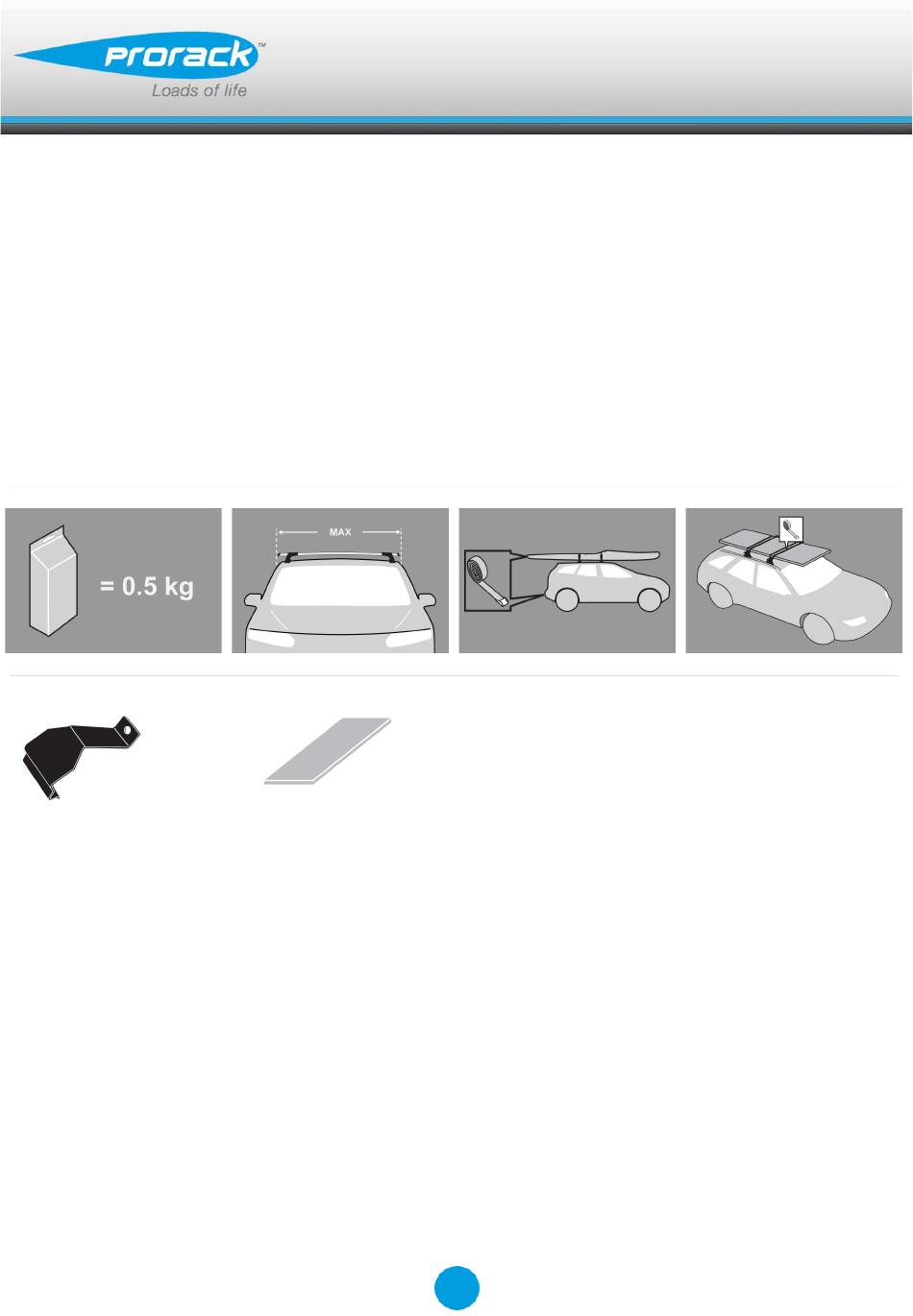

- Page 2 Fitting Kit K455 MAX kg MAX kg W/P WHD W/P WHD Land Rover Freelander 2, 5dr SUV 07-+ Freelander 2, 5dr SUV 07-+ Freelander 2, 5dr SUV 07-+ Freelander 2, 5dr SUV 07-+ Freelander 2, 5dr SUV 07-+...
-
Page 3: First Time Installation
Fitting Kit K455 First Time Installation Remove parts from packaging and check contents. Contact your Prorack dealer if parts are missing or damaged. This kit fits type A, B, C and D. These instructions show type A crossbar fitted. They also apply to type B, C and D. - Page 4 Fitting Kit K455 Use keys to remove covers. Use hex screwdriver to reverse adjusting screw 10 turns. Press adjusting screw and pull crossbar legs out. Refer to the crossbar instructions for crossbar adjustment. Ensure each end of the crossbar is adjusted...
- Page 5 Fitting Kit K455 Remove locking screw. Apply protective strip as shown. Trim if required. A= Clamp B= Roof line C= Body rubber D= Protective strip Attach clamp to each leg. NOTE; clamps may have labels showing their positions on the vehicle (For example; "Front Right").
- Page 6 Fitting Kit K455 Refit locking screw so that it goes through the hole in the clamp. Do not begin to tighten the locking screw. Fit rubber pad (supplied with crossbar) to foot. Make sure the pad fits into the holes...
- Page 7 Fitting Kit K455 Fitment Place crossbar on vehicle. Minimum recommended spacing between the bars is 700mm (unless otherwise stated). Clamps over rubber door frame mouldings. Please check the rear of this manual for information relating specifically to your vehicle. Adjust the legs on the crossbar so that they...
- Page 8 Fitting Kit K455 Tighten locking screw on both legs evenly. Final clamp position when tight. Just touching point A Pressure applied point B Check crossbar is securely attached to the vehicle.
- Page 9 Fitting Kit K455 Use keys to fit and lock covers CAUTION: Recheck all fasteners immediately after a load is applied to the crossbars. Regularly check screws are tight.
-
Page 10: Maintenance
Fitting Kit K455 Maintenance Clean the car roof and surfaces of the product that will be in contact with the car roof. Follow the fitting instructions for fitting the product to your vehicle. Make sure all steps are carried out in order. - Page 11 Fitting Kit K455 A loaded roof rack system can alter the performance of your vehicle. Be especially aware of the effects of side winds, changing of direction, and braking performance. Avoid rapid acceleration and deceleration. Drive carefully. Note that the total height of the vehicle increases when upright loads are carried.
- Page 12 Fitting Kit K455 -18cm 57cm 960mm 940mm Land Rover Freelander 2, 5dr SUV 07-+ (AU) -7 1/16ths" 22 7/16ths" 37 13/16ths" 37 " Land Rover Freelander 2, 5dr SUV 07-+ (EU) -18cm 57cm 960mm 940mm -7 1/16ths" 22 7/16ths" 37 13/16ths"...
