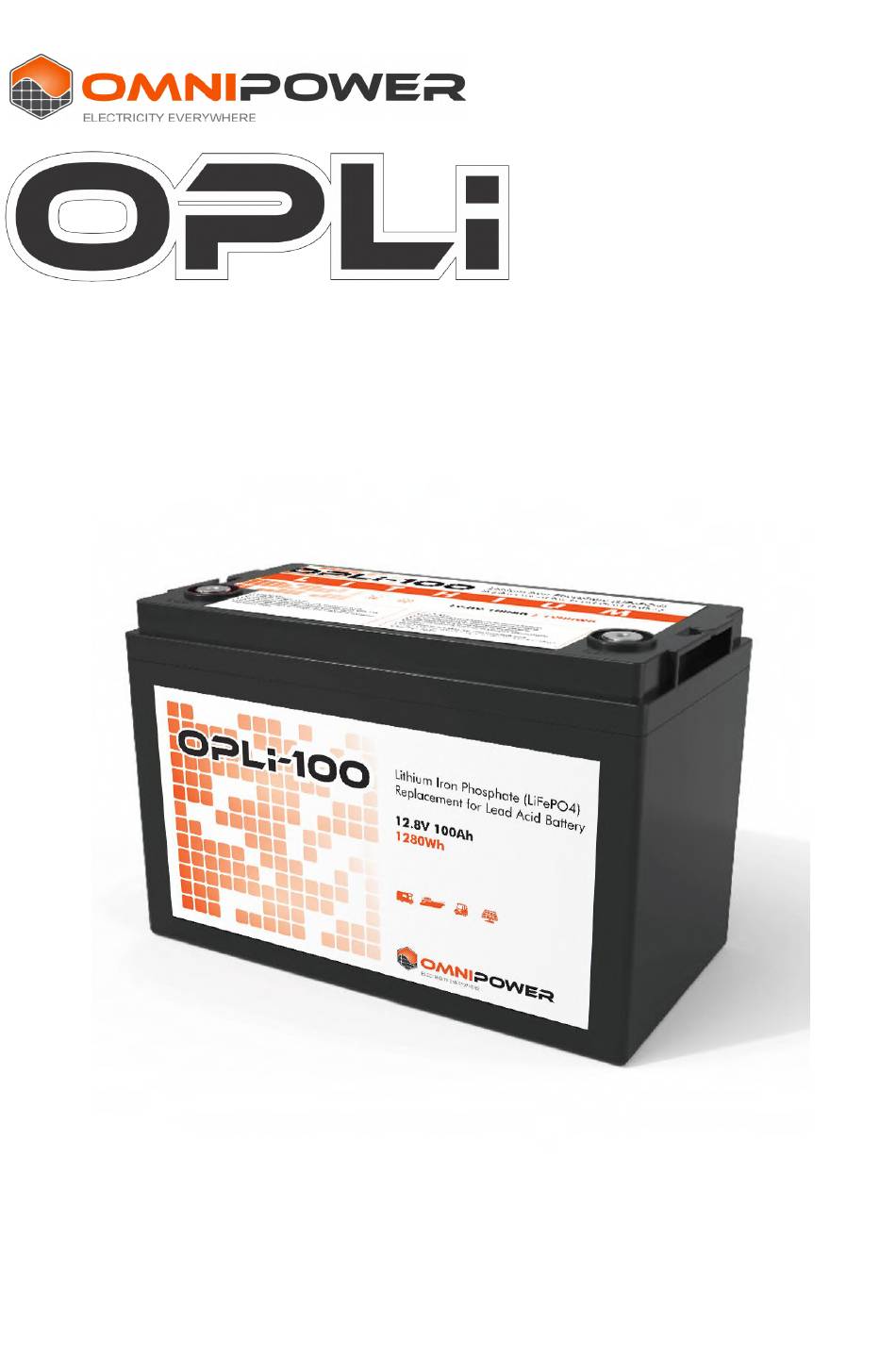

- Page 1 Lithium Iron Phosphate (LiFePO4) Rechargeable Battery User Manual PLEASE KEEP THIS MANUAL FOR FUTURE REFERENCE...
-
Page 2: Product Introduction
Product Introduction Terminal Terminal Battery Cell Battery Casing Description Item Description Charge and discharge wiring port, M8 threaded hole, can directly Terminal replace lead-acid battery application. Compliant to BCI Dimensions. Battery Casing Built-in BMS, with overcharge, over discharge, over current, over temperature, short circuit and other protection functions;... -
Page 3: Specifications
Specifications PULSE CHARGE CAPACITY DISCHARGE CURRENT DIMENSIONS CHARGE MODEL CURRENT TERMINAL BLUETOOTH (Ah) CURRENT (MM) CURRENT (＜3S) 12V7Ah 151*65*100 F1/F2 12V10Ah 151*98*100 12V20Ah 181*77*167 12V33Ah 196*132*180 12V40Ah 196*166*184 12V75Ah 260*169*227 12V90Ah 307*169*228 Optional 12V100Ah 333*172*221 Optional 12V150Ah 483*170*241 Optional 12V200Ah 522*240*245 Operating Conditions •... -
Page 4: Installation Instruction
* Charging voltage is 14.4V * Ambient humidity: ≤85% Cautions: Improper use will cause irreversible damage to the battery, and could cause battery swelling and smoke in extreme cases. Installation Instruction Please follow the vehicle/equipment manufacturer's instructions: • When replacing various types of deep cycle applications, please ensure the battery capacity is not less than the original lead-acid battery. - Page 5 * "Equalization mode" * "Desulfation mode" * "Pulse function" • DO NOT leave the lead-acid battery charger connected to maintain or store the battery, because most will NOT maintain the proper voltage charge algorithm for lithium batteries and damage will occur to the battery.
- Page 6 • Parallel batteries can only increase the capacity of the battery system and increase the working time of the connected electrical devices. However, the maximum/peak discharge current can only be in accordance with a single battery. For e.g., use four 100Ah batteries configured in parallel to connect an inverter/motor or other devices, the maximum continuous power cannot be more than 1100W (according to conversion efficiency of 85%).
- Page 7 4) You can rename the battery after being connect- 3) Choose the device and connect it: ed.The connected device will appear in the history when accessing the App again.
- Page 8 4. After connecting, you can see the SOC (States of Charge) from the Basic Info. There are 4 battery cells in total. If the voltage difference between any two of them reaches or even is higher than 400mV, these two cells will be displayed in red: 13.2V 100.0Ah Standby...
- Page 9 5. You can also check the individial cell voltage from the Details Info. 13.2V 100.0Ah Standby Perfect 6. You can disconnect battery from the connecting device list.
- Page 10 Note: You can check Manual and other informations from the menu. Contact Manual Notification Devices Bluetooh About...
-
Page 11: Troubleshooting
Warning and Attention • Do not reverse the positive and negative of the battery. • Do not touch or store the electrodes of the battery with unnecessary wires or other metal materials to avoid short circuit. • Do not puncture, impact, drop, or step on the battery. •... -
Page 12: Storage And Transportation
Over current Reduce load power. Battery heat Working within the Over temperature operating temperature. Initial connect to capacitive No action required. load or inductive load Spark occurs on cable Check the cause of the terminals Power supply short circuit short circuit and disconnect it.
