- Page 1 USB 3.0 4-Port Industrial Hub Metal Case Product Manual Coolgear, Inc. Version 1.1 September 2017 Model Number: USBG-4U3ML www.coolgear.com...
- Page 2 Coolgear New Manual Format About this document This product manual outlines installation and features of the USBG-4U3ML USB 3.0 4- Port Industrial Hub Metal Case. Scope The scope of this manual is to give the user of the product an understanding of its use with detailed diagrams and verbiage.
-
Page 3: Table Of Contents
USBG-4U3ML – Product Manual Table of Contents 1. Introduction ......................4 Features ........................4 Connector Layout ....................4 Hardware Installation ..................... 5 Checking the Hub Installation ................. 6 Environmental Specifications ................. 7 2. Notes, Tips, Warnings, and Safety ................. 8 3. -
Page 4: Introduction
USBG-4U3ML – Product Manual 1. Introduction Super-Speed 4-port USB 3.0 hub providing an ideal solution to expand 4 USB 3.0 ports from one single USB 3.0 host port. It provides a wide range self power source (+12~24VDC from 2-pin Terminal Blocks) to supply enough power on USB 3.0 buses. -
Page 5: Hardware Installation

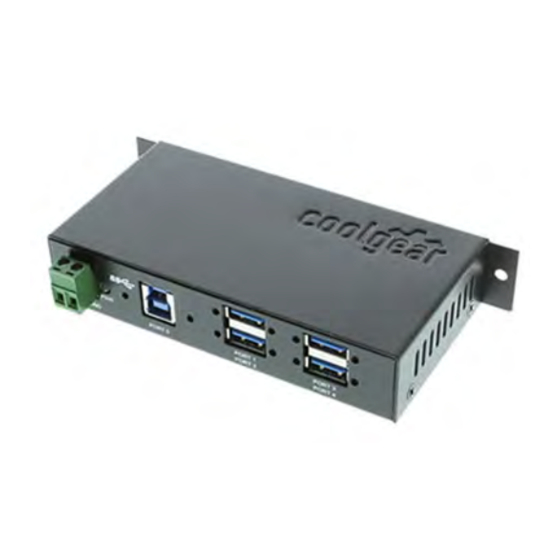

USBG-4U3ML – Product Manual USB 3.0 Upstream Port USB 3.0 Downstream Port Self Power Input Type-B connector from There are 4 Type-A This 2-pin (one pin for upstream USB3.0 port. It is connectors for USB3.0, positive voltage and the connected from host or USB2.0 or USB1.1 devices. -
Page 6: Checking The Hub Installation
USBG-4U3ML – Product Manual Figure 3 1.4 Checking the Hub Installation To check the USB hub installation in Windows device manager, please follow the following steps: 1. Click Start 2. Click Control Panel 3. Click System 4. Click Device Manager button 5. -
Page 7: Environmental Specifications
USBG-4U3ML – Product Manual 1.5 Environmental Specifications Specification Data Operating Temperature: 0-55°C (32 to 131°F) Operating Humidity: 5 to 95% RH www.coolgear.com... -
Page 8: Notes, Tips, Warnings, And Safety
USBG-4U3ML – Product Manual 2. Notes, Tips, and Warnings Note Please make sure the polarity of the input power should be correctly matched with the terminal block pins to function properly. Warning Figure 5 • Read the entire Product Manual before implementing this product for your application. -
Page 9: Supporting References
USBG-4U3ML – Product Manual 3. Supporting References Document Link Website Product Page https://www.coolgear.com/product/usb-3-0- 4-port-industrial-hub-metal-case © 2017 Coolgear, Inc. All Rights Reserved. All products and accompanying digital documentation including images are the property and / or trademarks of Coolgear Inc. Coolgear Inc. are continuously improving upon its products. Product specifications are subject to change without notice.
