  • Page 1 Body Infrared Thermometer User's Manual Please read this manual before use!
  • Page 2: Safety Precautions

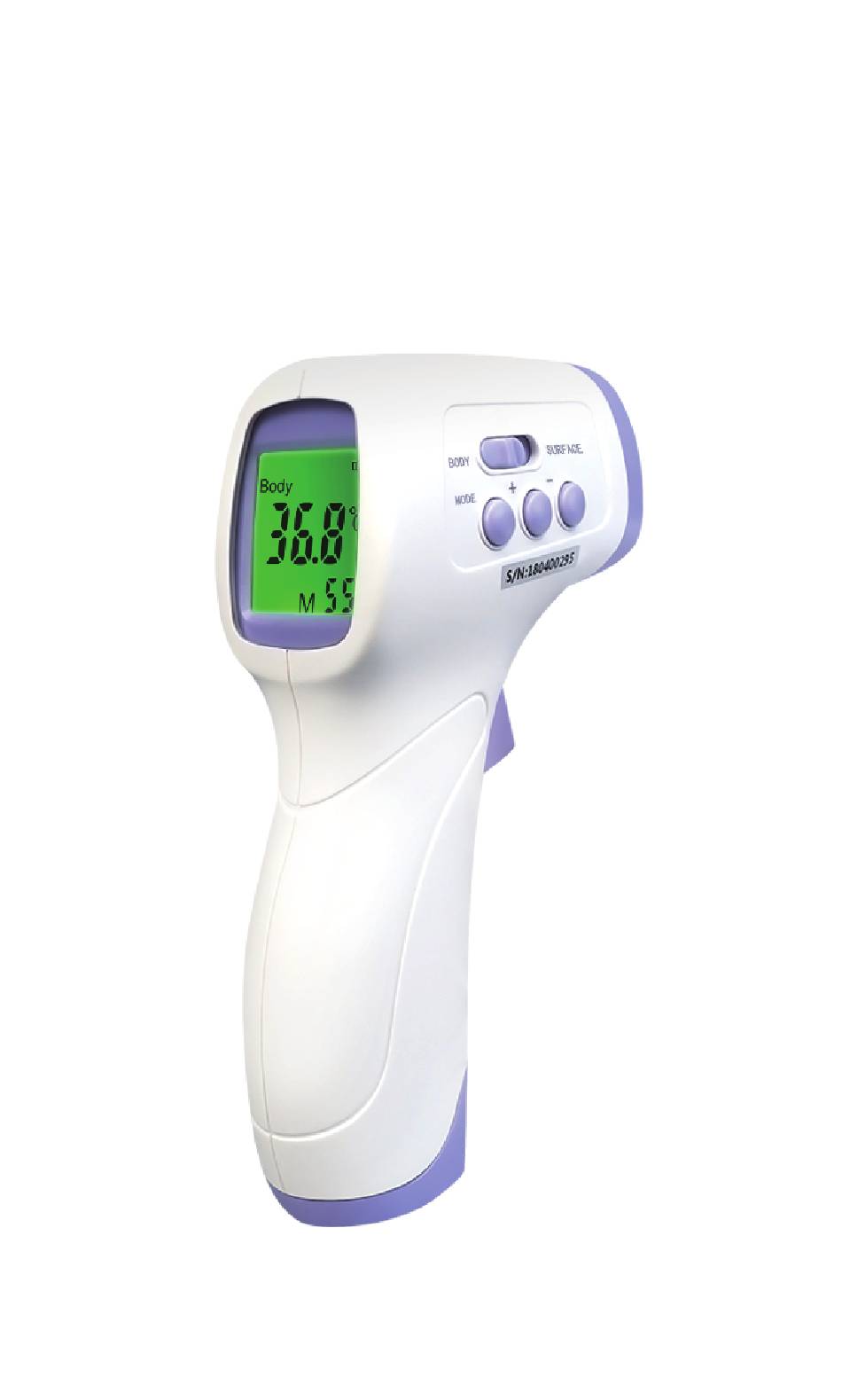

    1. Summary of Infrared Thermometer Thank you for choosing our Infrared Thermometer. The PC868 Infrared Thermometer is used to measure an objects temperature based on the relationship between temperature and measurable infrared radiation. Simply aim the unit’ s probe toward the surface to be measured to obtain a quick and accurate temperature.
  • Page 3 Notice The device is precision instrument, don’ t drop, tramp or impose any vibration or impact on the thermometer. Do not touch the lens of the probe with your fingers, and do not dissemble the device by yourself. Before measuring forehead temperature, make sure the hair re-moved, sweat dried.
  • Page 4: Intended Use

    In order to ensure the accuracy of measurement data, please don’ t take measurement of body temperature in strong electro- magnetic interference environment (such as microwave, high frequency equipment operation environment). Do not disassemble, repair, or modify the unit. This thermometer only a personal device, please do not user with others.
  • Page 5 2 weeks at the same ear canal, forehead position and time. NOTE: When consulting your physician, communicate that the infrared thermometer PC868 temperature is a temperature measured which position, note the individual’ s normal infrared thermometer PC868 temperature range as additional reference.
  • Page 6: Overall Description

    5. Feature Precise non-contact measurements User selectable ℃ or ℉ Set alarm temperature value Automatic data hold and auto power save Automatic selection range and display resolution 0.1℃ (0.1℉) 3 colors backlight 2 measurement mode: Forehead and surface mode 6. Overall description 1.
  • Page 7 【LCD display description】 7. Operation Instruction 【Preparation】 1) Check battery Replace the batteries to ensure power supply if there is low voltage icon for the thermometer. 2) Check sensor If have pollution and spray, please clean it. (The cleaning method see the chapter 8 Care and Cleaning for detailed.) If the sensor’...
  • Page 8 【Instruction for use】 1) Advice for the first use For stable and reliable results, it is essential to check the infrared thermometer and changes as needed, as follows: step: Take the temperature of a person using a conventional thermometer, you will get 37.5 ℃ (99.5℉) for instance.
  • Page 9 5.If the measurement temperature is 38.0℃ or more (can be setting, refer to sub-clause 3)), the sound should be “be-be-be-be-be” 5 repid sounds. TEMPERATURE TAKING HINTS - Before take the temperature, please fix the forehead hair to prevent measured deviation. - The sweat on head or cosmetic can affect the accuracy of measurement, please maintain the cleanness of the forehead when measuring.
  • Page 10 3) Setting operation Mode code Function Operation step Press MODE button for 2 seconds, the screen ℃/℉ scale will display F1 on the bottom right, press UP or DOWN button can change temperature unit ℃or℉ Set alarm temp. Press MODE button for 2 seconds, the screen display F1, press MODE button to get F2, select UP to increase the threshold by 0.1 ℃...
  • Page 11 Measurement mode There are 2 measurement modes for this device. That is forehead, surface. It is able to take the body temperature of human beings, take the temperature of an area or an object, a food, a liquid or a room. Forehead Put the mode selection button on mode...
  • Page 12 -- Range of alarm temperature When into the “F-2” mode, the range of settable alarm tempera- ture is from 37.6℃(99.7℉) to 43.0℃(109.4℉). -- Range of temperature difference When into the “F-3” mode, the range of settable temperature difference is from 5℃(9℉) to -5℃(-9℉). Note: F-3 mode is only for professional doctor and nurse use! 4)...
  • Page 13 LCD will be showing the recorded values or “ ---- “ symbol if not record accompanied with memory M symbol. The PC868 can restore up to 99 sets data. the query interface can display memory serial number, body mode and recorded tempera- ture values.
  • Page 14: Care And Cleaning

    8) Restore the factory default function Press the [Setup] button for 5s to restore the factory default status. The factory default setup is “℃” and “Body measurement” mode. 9) Battery installment and replacement 1. When the quantity of electric charge is not sufficient, the icon of low battery will appear on the lower part of the screen.
  • Page 15: Maintenance

    2) Take out the battery if don’ t use the device in a long time. 12. Accessories Only use original accessories. Check that the contents of the delivery are complete. Quantity Parts PC868 device 2pcs AAA battery User Manual - 14 -...
  • Page 16: Troubleshooting

    13. Trouble-shooting Troubles or error Checklists or situation Countermeasures or solution message The batteries are used up? Replace new batteries. No response/ Take out the batteries and replace Battery in wrong polarity or type? Automatically reset new ones. Poor battery contact Take out batteries and reinsert it correct.
  • Page 17: Specifications

    14. Specifications Device name Infrared Thermometer Model PC��� Measurement mode Forehead and object temperature modes Power supply d.c.�V, � pcs AAA battery For forehead temperature: ��.�-��.�℃ Measuring range: For object surface temperature: �-���℃ for forehead temperature: Measuring accuracy: ± �.� during ��. �℃ -��.�℃; (At laboratory conditions) ±...
  • Page 18: Standard List

    15. Standard list Shenzhen PACOM Medical Instruments Co., Ltd declares that the PC868 complies with following applicable standards: Symbols for use in the labeling of medical devices EN ��� Information supplied by the manufacturer with medical EN ���� devices Medical electrical equipment Part �: General requirements EN �����-�...
  • Page 19: Normalized Symbols

    Complies with the European Medical Device Directive (��/��/EEC and amended Directive ����/��/EC. Notified Body is SGS FIMKO YO. Manufacturer information: The manufacturer is: Shenzhen PACOM Medical Instruments Co., Ltd. Authorized representative in the European Community. The European representative is: Shanghai International Holding Corp.
  • Page 20 Please pack your defective instrument well and send with sufficient postage to the distributor. Shenzhen Pacom Medical Instruments Co., Ltd. Address: On the 8th floor of B District, B Building, No.5, Industry five road, Jiangbian Community, Songgang, Shenzhen, China.
