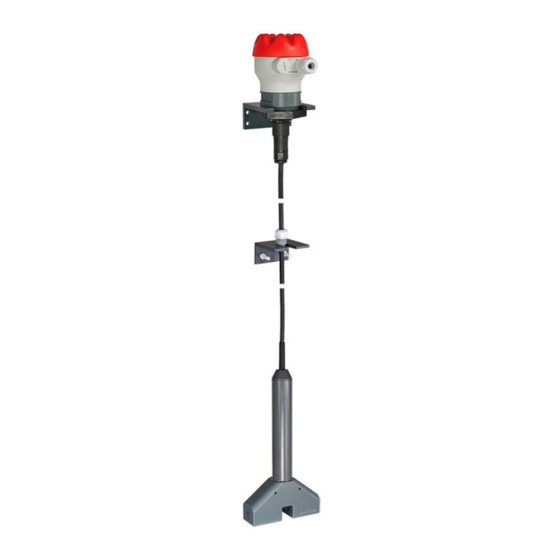

- Page 1 TURBISENS Turbidity transmitter, Immersion Probe According to ISO 7027 INSTRUCTION MANUAL Turbidity transmitter, Immersion Probe TURBISENS 443-01 443 M1 01 E 10-03-2015...
-
Page 2: Safety Precautions
• The device may only be operated under the conditions specified in the operating instructions. FUNCTIONS – DESCRIPTION - TURBISENS determines the turbidity of liquids according ISO 7027, using infrared light in pulsating light mode with 2 emitters and 1 receiver. - Page 3 Compare the value in FNU engraved on the kit with the reading value - If reading is 15% under the kit value –> Calibration test is right. - If reading is 15% over the kit value –> send the instrument to BAMO for a factory calibration...
-
Page 4: Technical Features
TECHNICAL FEATURES Output signal 4-20 mA ; 4 wire technique ; compatible with BAMOPHOX 436 (230 V AC version) Power supply: 24 V DC (10 ... 30 V DC), galvanic insulated Consumption: about 0.8 W; if the 4-20 mA loop is separately powered the consumption is 0.5 W CAUTION: if a connection is done with another instrument than BAMOPHOX 436 (230 V AC version) a separated power supply could be necessary according to power supply available on the PLC. - Page 5 Page 5 443 M1 01 E 10-03-2015...
- Page 6 Page 6 443 M1 01 E 10-03-2015...
