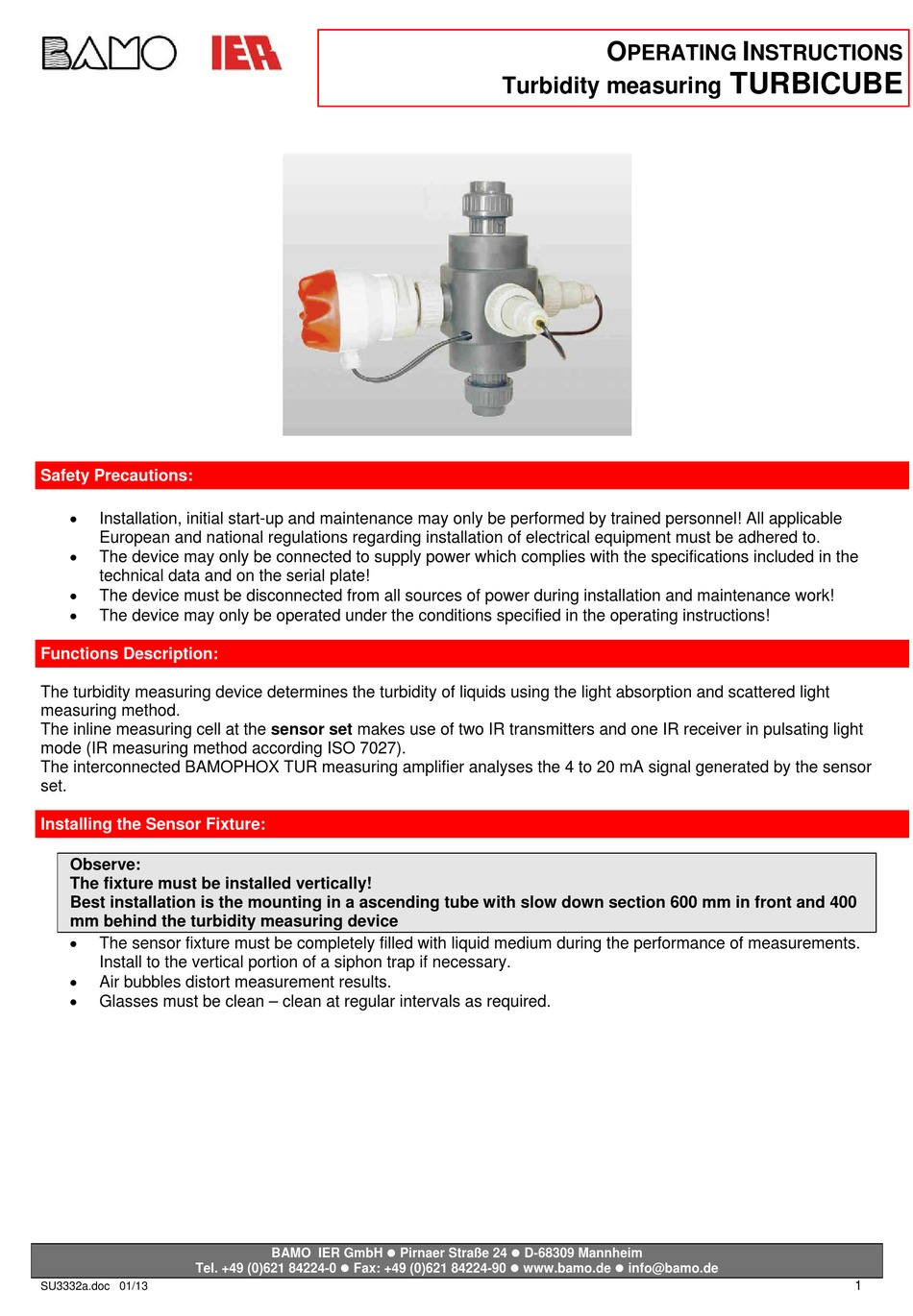

Bamo IER Turbicube 20 Operating Instructions Manual

Safety Precautions:

Installation, initial start-up and maintenance may only be performed by trained personnel! All applicable
European and national regulations regarding installation of electrical equipment must be adhered to.

The device may only be connected to supply power which complies with the specifications included in the
technical data and on the serial plate!

The device must be disconnected from all sources of power during installation and maintenance work!

The device may only be operated under the conditions specified in the operating instructions!
Functions Description:
The turbidity measuring device determines the turbidity of liquids using the light absorption and scattered light
measuring method.
The inline measuring cell at the sensor set makes use of two IR transmitters and one IR receiver in pulsating light
mode (IR measuring method according ISO 7027).
The interconnected BAMOPHOX TUR measuring amplifier analyses the 4 to 20 mA signal generated by the sensor
set.

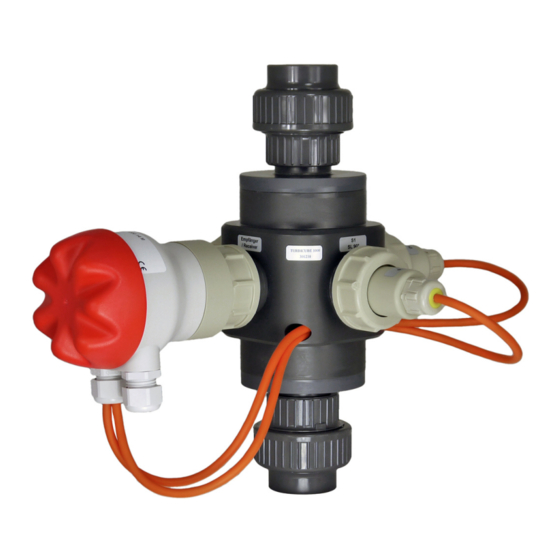

Installing the Sensor Fixture:
Observe:
The fixture must be installed vertically!
Best installation is the mounting in a ascending tube with slow down section 600 mm in front and 400
mm behind the turbidity measuring device

The sensor fixture must be completely filled with liquid medium during the performance of measurements.
Install to the vertical portion of a siphon trap if necessary.

Air bubbles distort measurement results.

Glasses must be clean – clean at regular intervals as required.
