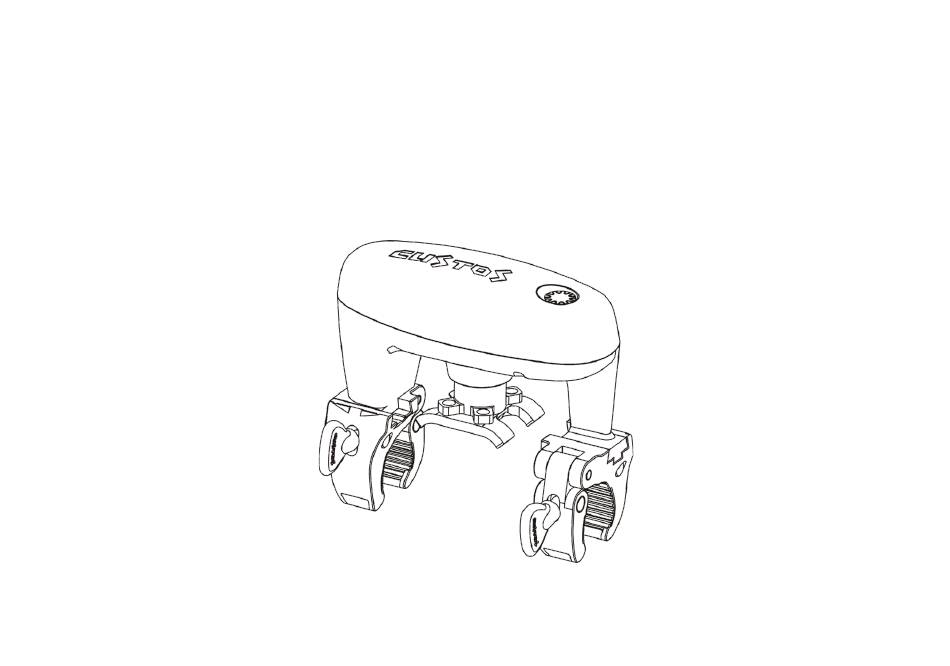

- Page 1 BVS-ZWx User Manual Custos Ball Valve Servo Technology for Humanity Ubitech Ltd. Page: 1 Version: 0.9.4...
- Page 2 4. WHAT INSIDE IN THE BOX 10.1 Check Custos BVS Status 10.2 Add Custos BVS Into Z-Wave Network 5. UNDERSTANDING CUSTOS BVS 10.3 Remove Custos BVS From Z-Wave Network 5.1 Connectors & Interfaces 10.4 Factory Default Reset Ubitech Ltd. Page: 2 Version: 0.9.4...
- Page 3 14.1 Z-Wave Terminology 14.2 System Event Status 14.3 Touch Sensor Button Key Lock 14.4 Operation Mode 14.5 Network Operation & Status 14.6 Water Valve Operation & Status 14.7 Water Leak Alarm Operation & Status Ubitech Ltd. Page: 3 Version: 0.9.4...
- Page 4 Custos BVS can be operated in any Z-Wave network with other Z-Wave certified gateways or devices from other manufacturers. All mains operated nodes within the network will act as repeaters regardless of vendor to increase reliability of the network. Ubitech Ltd. Page: 4 Version: 0.9.4...
-
Page 5: Features And Specifications
Sound Indicator Buzzer (Max. 85dB) Power Supply AC-DC: AC (110V 60Hz / 220V 50Hz); DC (12V / 1A) Power Consumption Standby: ~10mA @ 12VDC = 0.12W Full Operation: Max ~700mA @ 12VDC = 8.4W Ubitech Ltd. Page: 5 Version: 0.9.4... -
Page 6: Software Specifications
Support: Firmware upgrade support via RF, “Over The Air (OTA)” Association Support. Factory Default Reset Support: Device Locally Reset Support: Valve ON/OFF and Leak Alarm support suddenly power cut and restore previous status Power Down Memory Ubitech Ltd. Page: 6 Version: 0.9.4... - Page 7 Number of firmware targets 0x00 Manufacturer Specifications Parameter Value Manufacturer ID 1 0x02 Manufacturer ID 2 0x70 Product Type ID 1 US=0x01 Product Type ID 2 0x01 Product ID 1 0x00 Product ID 2 0x0A Ubitech Ltd. Page: 7 Version: 0.9.4...
- Page 8 0xFF = OFF / Water Valve CLOSE (Valve doesn’t let water run through) BASIC_GET BINARY SWITCH GET 0x00 = ON / Water Valve OPEN (Valve lets water run through) 0xFF = OFF / Water Valve CLOSE (Valve doesn’t let water run through) Ubitech Ltd. Page: 8 Version: 0.9.4...
- Page 9 0x00 = IDEL / CANCEL (Based on Configuration Parameter 0x27 Setting) 0xFF = TRIGGERED (Based on Configuration Parameter 0x26 Setting) Underheat - Basic Set 0x00 = IDEL / CANCEL (Based on Configuration Parameter 0x2C Setting) 0xFF = TRIGGERED (Based on Configuration Parameter 0x2B Setting) Ubitech Ltd. Page: 9 Version: 0.9.4...
- Page 10 Support Support SUPERVISION Support Support Support Support FIRMWARE_UPDATE_MD Support Support Support Support MULTI_CHANNEL_ASSOCIATION Support Support Support Support SENSOR_BINARY Support Support Support Support SENSOR_MULTILEVEL - Temperature Support Support Support Support CONFIGURATION Support Support Support Support Ubitech Ltd. Page: 10 Version: 0.9.4...
- Page 11 Second 4 bits = Celsius/Fahrenheit; 0 = °C, 1 = °F 0x1100~0x11FF = Set -°F value Name: Overheat Trigger Value 0x0000~0x00FF = Set °C value 0x0040=°C 0x24 2 Bytes Info: Configure Overheat Trigger Report Value 0x0100~0x01FF = Set °F value 0x0168=°F Ubitech Ltd. Page: 11 Version: 0.9.4...
- Page 12 Info: Configure Water Leak Cancellation value 0x01 = Send Basic ON (0xFF) 0x02 = Send Basic OFF (0x00) Name: Water Leak Detection 0x00 = Disable 0x33 1 Byte 0x01 Info: Enable / Disable Water Leak Detection 0x01 = Enable Ubitech Ltd. Page: 12 Version: 0.9.4...
- Page 13 Name: Notification Report 1 Byte Bit 0 = Water Valve Report 0x51 0x0D Report Info: Configure Notification Report (Bitmask) Bitmask Bit 1 = Overheat Report Bit 2 = Freeze Report Bit 3 = Water leak Ubitech Ltd. Page: 13 Version: 0.9.4...
- Page 14 4 WHAT INSIDE IN THE BOX Standard Custos BVS package comes with below items Custos BVS Main Unit x 1 AC-DC Adaptor x 1, (AC 110/220V to DC 12V/1A) Local Leak Sensor Probe x 1 (Optional) Ubitech Ltd. Page: 14 Version: 0.9.4...
- Page 15 ○ Connector ○ Number ○ Temperature LED Indicator Buzzer Sensor ○ Touch Sense ○ Button Dust Cover ○ Clamp 2.5” ~ 4.9” ○ Leak Sensor ○ Connector Knob Max. Max. 0.7” 1.0” ○ Fork Ubitech Ltd. Page: 15 Version: 0.9.4...
-
Page 16: Visual Indicator
Long Hold: Press and holding the key. “Come with 1 x short beep per second” Visual Indicator - 3 Colors LED: GREEN, YELLOW & RED - ON Event: ON, quick blinking and slow blinking Sound Indicator Buzzer: Long & short beep sound. Ubitech Ltd. Page: 16 Version: 0.9.4... -
Page 17: Physical Installation
Connect the power socket to DC Adaptor, screw up the water seal cover. Plug DC Adaptor into AC Power Outlet. Leak Sensor Connector Power socket Dust Cover Figure B Local Water Sensor Probe Figure A Figure C Ubitech Ltd. Page: 17 Version: 0.9.4... -
Page 18: Standalone Mode
Once Local Water Leak is detected then Custos BVS will also send out Water Leak Alarm with no location support to Z-Wave Gateway. (Only in Mesh Network Mode) Temperature Sensor By default, BVS sends temperature report automatically to gateway when every 1°C or 1.8°F degree changed. (Only in Mesh Network Mode) Ubitech Ltd. Page: 18 Version: 0.9.4... - Page 19 Start: Long hold Touch Sense Button 3 seconds then short click 3 times. ii. Process: Yellow LED on 1 second then Red LED on 1 second with 3 beep sounds. iii. Success: LED indicator resume previous status. (Yellow LED blinking or Green LED slow blinking) Ubitech Ltd. Page: 19 Version: 0.9.4...
- Page 20 Start: Short press Touch Sense Button 3 times. short beep sound keeping continue. Processing: Yellow LED and iii. Success: Green LED on 1 second with 2 short beep sounds. iv. The LED indication Changes to Yellow LED blinking. Ubitech Ltd. Page: 20 Version: 0.9.4...
-
Page 21: Factory Default Reset
Success: Green LED on 2 second with long beep sounds for 2 seconds. *Factory Default Reset will: a. Remote the product from Z-Wave Network; b. Delete the association setting; Restore the configuration settings to the default. Ubitech Ltd. Page: 21 Version: 0.9.4... -
Page 22: Water Valve Operation
Finished: The LED indicator changes to Yellow LED blinking 11.4 Pause OPEN/CLOSE Operation Pause only take effect during OPEN or CLOSE operation. Start: Short click Touch Sense Button once. Processing: Yellow LED blinking and Valve stop operation. Ubitech Ltd. Page: 22 Version: 0.9.4... - Page 23 11.5 Resume OPEN/CLOSE Operation Resume only take effect during Pause operation. Start: Short click Touch Sense Button once. Finished: Valve resume to operation (Continue to Opening / Closing) and LED indicator changes to LED blinking. Ubitech Ltd. Page: 23 Version: 0.9.4...
- Page 24 Water Leak Alarm Cancellation operation only accepted when Local Water Leak Sensor Probe is no longer detected water. Start: Long hold Touch Sensor Button 2 seconds. Success: The LED indicator changes to previous status. (Yellow LED blinking or Green LED slow blinking and buzzer goes silence.) Ubitech Ltd. Page: 24 Version: 0.9.4...
-
Page 25: Temperature Sensor
13.1 Temperature Report By default, Custos BVS will send report to Gateway automatically in 1 °C or 1.8°F change of ambient temperature. - Custos will send out °F in US version and °C for other versions. Ubitech Ltd. Page: 25 Version: 0.9.4... - Page 26 Green LED ON 2 seconds Short beep x 2 Event Error Operation fail or not available RED LED blinking 3 times Long beep x 3 Event Timeout Operation timeout RED LED ON 1” Pulse sound Ubitech Ltd. Page: 26 Version: 0.9.4...
-
Page 27: Operation Mode
Perform calibrate position and torque force Support Support Water Leak 11. Trigger to close valve Auto close water valve Support Support Alarm 12. Alarm Cancellation Resume to normal operation mode if no Support Support alarm triggered Ubitech Ltd. Page: 27 Version: 0.9.4... -
Page 28: Network Operation
Hold 10 seconds Yellow LED ON 1 second Factory Reset & click 5 times “Device Reset Success Green LED ON 2 seconds 2” Pulse sound Locally” Next status à Standalone Mode Yellow LED keep blinking Ubitech Ltd. Page: 28 Version: 0.9.4... - Page 29 Processing – Open & Close 1-2 cycles Yellow LED keep blinking Keep short beep Calibration Next status – “In Network Mode” Green LED slow blinking Next status – “In Standalone Mode” Yellow LED keep blinking Ubitech Ltd. Page: 29 Version: 0.9.4...
- Page 30 Leak Alarm Success cancellation Green LED blinking 3 times Short beep x 3 Cancellation Next status – “In Network Mode” Green LED slow blinking Next status – “In Standalone Mode” Yellow LED blinking Ubitech Ltd. Page: 30 Version: 0.9.4...
- Page 31 BVS-ZWx User Manual Date:02-APR-2020 Contact us if you have any questions Website: http://www.ubitech.hk/BVS/Z-Wave/ Ubitech Ltd. Page: 31 Version: 0.9.4...
