Summary of Contents for enware AQUABLEND ESQX ATWB C2L3
Page 1

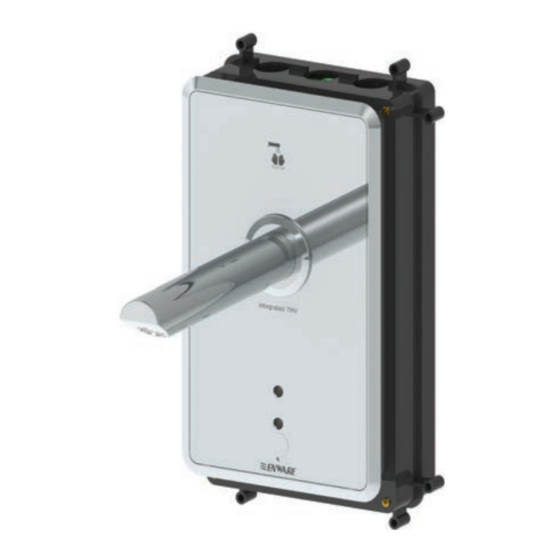

TOUCH FREE THERMOSTATIC MIXERS Installation and User Guide AUTO SENSE SYSTEM ON DEMAND SENSE SYSTEM I00057_May 19 Call 1300 369 273 www.enware.com.au Enware Australia Pty Limited 9 Endeavour Rd Caringbah NSW 2229 Australia Ph: +61 2 8556 4000 info enware.com.au...
SERVICE AND MAINTENANCE PAGE 21 CHANGING THE SENSOR PROGRAM PAGE 28 PROGRAMMING AUTO SENSE PAGE 29 PROGRAMMING ON DEMAND SENSOR PAGE 30 COMMISSIONING AND / OR MAINTENANCE REPORT PAGE 31 TROUBLESHOOTING PAGE 33 PRODUCT WARRANTY PAGE 36 Call 1300 369 273 www.enware.com.au...
Page 3
IN WALL ADJUSTMENT 73.3 73.3 TRIM DOWN TO SUIT AFTER INSTALLATION NOTE: Enware Australia advises: 1. Due to ongoing Research and Development, specifications may change without notice. 2. Component specifications may change on some export models www.enware.com.au Call 1300 369 273...
FRONT OF with battery with mains WALL operated operated component FRONT OF WALL FRONT OF WALL Sensors will not operate if components are not paired correctly MAINS MAINS POWER ATM621 12V Mains Power In-Wall Component MAINS www.enware.com.au Call 1300 369 273...
P R E S S U R E L O S S F L O W R A T E * In accordance with AS/NZS3500. Enware products are to be installed in accordance with the Plumbing Code of Australia (PCA) and AS/NZS3500.
INSTALLATION COMPLIANCE INSTALLATION The Enware Aquablend Thermostatic Mixers should be installed using the appropriate Standard, Code of Practice and legislation applicable to each state and following the details outlined in this section. They must be installed by a licensed plumber, or where applicable, a licensed plumber who has undertaken accredited training in Thermostatic Mixing Valves.
865mm, according to AUSHFG (Australasian Health Facility Guidelines). If installing within a frame wall, fit mounting timber STEP 2 in the desired location for box support. Enware recommend 13mm ply wood fixed between two vertical in wall studs. NOTE: plywood needs to cover the entire back section of the box, so the valve body can be fixed.
Page 9
If the cable is not long enough, use an extended transformer (ENMS230 - available from Enware). Use a conduit to run the transformer cable between the power point and the box, to allow for easy component replacement in future.
Check that no part of the box protrudes past the finished wall, and deburr trimmed edges. Fit the chrome back support bracket and secure STEP 2 with four screws supplied. SEE IMAGE 9 IMAGE 8 IMAGE 9 Call 1300 369 273 www.enware.com.au...
Page 11
STEP 5 screw on the spout retainer using 3/8” Allen key, making sure it finishes hard up against the spout IMAGE 10: SPOUT SUPPORT NUT support nut. SEE IMAGE 13 IMAGE 11 IMAGE 12 IMAGE 13 www.enware.com.au Call 1300 369 273...
Page 12
Using the 3/8” Allen key, wind the temperature STEP 8 IMAGE 14 adjustment gear anti clockwise until it comes to a firm stop. This will close the thermostatic valve. SEE IMAGE 16 IMAGE 15 IMAGE 16 Call 1300 369 273 www.enware.com.au...
Page 13
2x voids in the base of the faceplate bracket until it sits flush. Secure in place using the 2x M4 Allen head screws and tighten with an Allen key. SEE IMAGE 20 and 21 IMAGE 19 IMAGE 20 IMAGE 21 www.enware.com.au Call 1300 369 273...
Page 14
SEE IMAGE 25 IMAGE 23 (Refer to Page 19 Setting the Outlet Temperature, Steps 3 & 4). When complete, fit the chrome temperature STEP 17 adjuster cover onto the plate. IMAGE 24 IMAGE 25 Call 1300 369 273 www.enware.com.au...
Afterflow can be increased to 4 seconds. Default sensor range 250mm can be reduced to 170mm. Sensor sensitivity level can be reduced if it is over sensitive. *After installation this sheet may be affixed adjacent to the tap for user instruction. www.enware.com.au Call 1300 369 273...
Page 16
Wave quickly in front of sensor (does not activate) (does not activate) 1 sec 10 cm Place hand in front of sensor at Move hand in towards sensor and 10cm for 1 sec pulling up Call 1300 369 273 www.enware.com.au...
THERMAL DISINFECTION PROCEDURE PROCEDURE FOR FLUSHING WITH HOT WATER FOR DISINFECTION Enware Product Code: ATMS698 - eSQX™ Bypass Adaptor Kit The internal components can be flushed with full hot water temperature by adding a bypass to strainer / check valve assembly ports, using the following procedure.
Page 18
IMAGE 58 Take spout off. Then fit front plate and install spout back on. STEP 15 Commission the valve and set the valve to required temperature, STEP 16 according to the Commissioning Procedure on page 19. Call 1300 369 273 www.enware.com.au...
(maximum) temperature is achieved. SEE IMAGE 27 Once this desired temperature is set, make sure it STEP 4 stays steady for a minimum of 60 seconds. Remove the Allen key without changing the temperature gear position. IMAGE 27 www.enware.com.au Call 1300 369 273...
Page 20
Ensure that all details of the Commissioning Report are completed and signed by the relevant signatories and a copy is kept with the installer and owner of the premises. The valve is now commissioned and it can be used within the technical limits of operation. Call 1300 369 273 www.enware.com.au...
ANNUAL MAINTENANCE PROCEDURE Every 12 months the Enware Aquablend™ SQX™ Thermostatic Mixer must be inspected and tested. The valve and surrounding area should be inspected for leaks or water damage and appropriate action taken if required.
Page 22
SERVICE AND MAINTENANCE SERVICING THE STRAINERS AND CHECK VALVES Enware Product Code: ATMS693 - Strainer / Check Valve Assembly (1 Pair) Prior to servicing the strainers, turn off both the hot and cold water supply via the isolation valve within the inlet connectors. SEE IMAGE 26 on page Using a 3/8”...
Page 23
SERVICING THE THERMOSTATIC CARTRIDGE Enware Product Code: ATMS600 - Aquablend™ SQX™ Thermostatic Cartridge ATMS649 - eSQX™ Temperature Control Gear Ensure the water supplies to both the hot and cold inlets are isolated prior to commencing. SEE IMAGE 31 Remove the faceplate bracket by...
Page 24
SERVICE AND MAINTENANCE SERVICING THE SOLENOID VALVE Enware Product Code: ATMS625 - Solenoid Prior to servicing, turn off both the hot and cold water supply via the Isolation valve within the inlet connectors. SEE IMAGE 26 on page 19. Ensure faceplate bracket is removed and the solenoid valve is disconnected from the sensor.
Page 25
CHANGING THE BATTERY For battery operated models only. Enware Product Code: ENMS204 - 6V Lithium 2CR5 Battery ENMS205 - 6V Lithium 2CR5 Battery with casing If the mixer fails to function, and there is a RED light displayed within the sensor when trying to activate the product, this means that the battery is low in voltage and needs to be replaced.
Page 26
Using an M6 Allen key, unwind the access cover and keep at STEP 2 hand. SEE IMAGE 45 Apply thread tape or equivalent to a Pete’s Plug (Enware STEP 3 part - ATMS1221) and thread into the 1/4” thread port.
Page 27
IMAGE 49 CLEANING Enware products should be cleaned with a soft damp cloth using only mild liquid detergent or soap and water. Do not use cleaning agents containing a corrosive acid, scouring agent or solvent chemicals. Do not use cream cleaners, as they are abrasive. Use of unsuitable cleaning agents may damage the surface.
TURNS OFF Once the program is chosen, wait for 5 seconds. The LED will STEP 5 blink back to confirm the program number it is set to. The sensor is now set. MAXIMUM 5 SECS Call 1300 369 273 www.enware.com.au...
Flush - Approx 1 minute Automatic flow 12h ON – – – SENSITIVITY LEVEL 3 Least sensitive for 1 Most sensitive 2 Less sensitive for difficult the most difficult light light conditions or conditions or interference interference www.enware.com.au Call 1300 369 273...
2. The valve manufacturer / 3. The Australian Standards authority supplier requirements for Plumbing and Drainage YES NO YES NO YES NO If NO, give details and action taken: www.enware.com.au Call 1300 369 273...
Page 32
Contractor Name (print) Signature Licensed Plumber Contractors Phone No Date Owner / Occupier Signature Date NOTE: A duplicate copy of this report is to be retained at the site for any inspection by authorised persons Call 1300 369 273 www.enware.com.au...
Clean strainers ensuring debris is removed Water is leaking Mixer body o-rings are worn or Replace sealing o-rings from mixer body damaged Fitting connections have loosened Tighten all connections and threads, ensure they are sealed www.enware.com.au Call 1300 369 273...
Page 34
Thermostatic cartridge contains Clean the cartridge ensuring that all debris is temperature doesn’t debris, has failed or is damaged removed and components are not damaged. change when the Replace if necessary temperature cam is rotated Call 1300 369 273 www.enware.com.au...
Page 35
/ sensor / battery / instructions and replace if needed power supply Power supply is turned off Turn on power supply Sensor is constantly activated by Remove interfering object an object in front of sensor www.enware.com.au Call 1300 369 273...
3 Years warranty, parts supply only is applicable to the thermostatic cartridge component assembly. If the valve is sold by a party other than ENWARE then it is sold by that seller as principal and the seller has no authority from ENWARE to give any additional warranty on behalf of ENWARE.
