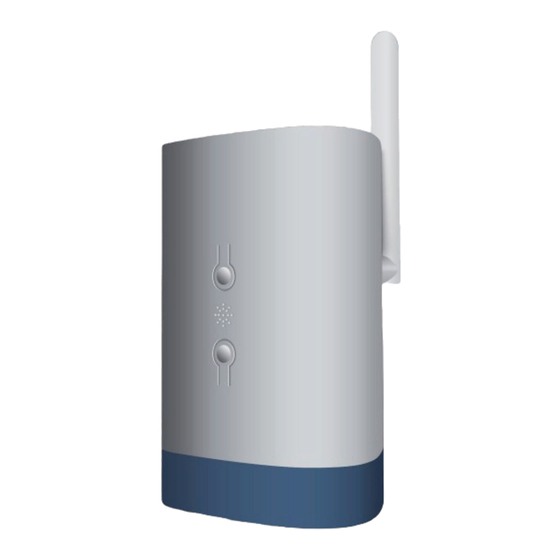

linkIT-Control4
Link your motors by integrating Gaposa radio motors into
Control4's industry-leading smart home control solutions.
LinkIT allows for group and individual motor
control. Simply connect by using our approved
connection cable to your controller and install
the easy to use integration driver. Each LinkIT
can support up to 24 channels depending on
model number.
TECHNICAL
CHARACTERISTICS
RS232 communication protocol
Individual or group control
16 or 24 individual channels
Tilting mode
Intermediate position
LED for feedback
Reset and programming button.
Advertisement
Table of Contents
Related Manuals for GAPOSA linkIT-Control4
Summary of Contents for GAPOSA linkIT-Control4
- Page 1 Link your motors by integrating Gaposa radio motors into Control4’s industry-leading smart home control solutions. LinkIT allows for group and individual motor control. Simply connect by using our approved connection cable to your controller and install the easy to use integration driver. Each LinkIT can support up to 24 channels depending ...
-
Page 2: Serial Interface
Hardware Channels Country Reference linkIT-434-16 linkIT-434-24 Europe linkIT-868-16 Europe linkIT-868-24 Comes with 2A, 5V micro-USB power supply It is possible to install more than one LinkIT provided your Controller has the requisite number of RS232 ports or a Remote RS232 - TCP/IP Convertor is used. No daisy chain possible. Antenna Restart RS232... -
Page 3: Cabling Distance
Last modified: 01-01-2020 Driver functions This driver enables you to use the Gaposa LinkIT in a Control 4 installation. The driver consists of a main gateway driver which communicates with LinkIT by RS232. Slave drivers then provide control over 1 motor (blind) address. The driver can control up to 16 or 24 motors. -
Page 4: Configuring The Driver
CONFIGURING THE DRIVER Important - You must install the Gaposa Blind RS232 interface driver first before adding any slave drivers. Add master driver Bind the Driver to the correct RS232 port on the controller Add the slave blind driver to the room the blind is located in... - Page 5 Configure the blind driver; see below for details: PAIRING MOTOR Before a motor can be controlled LinkIT must be paired to the motor. There are two options: New Motor (No handheld remote) 1. Ensure you have added the LinkIt drivers to control 4 first. 2.
-
