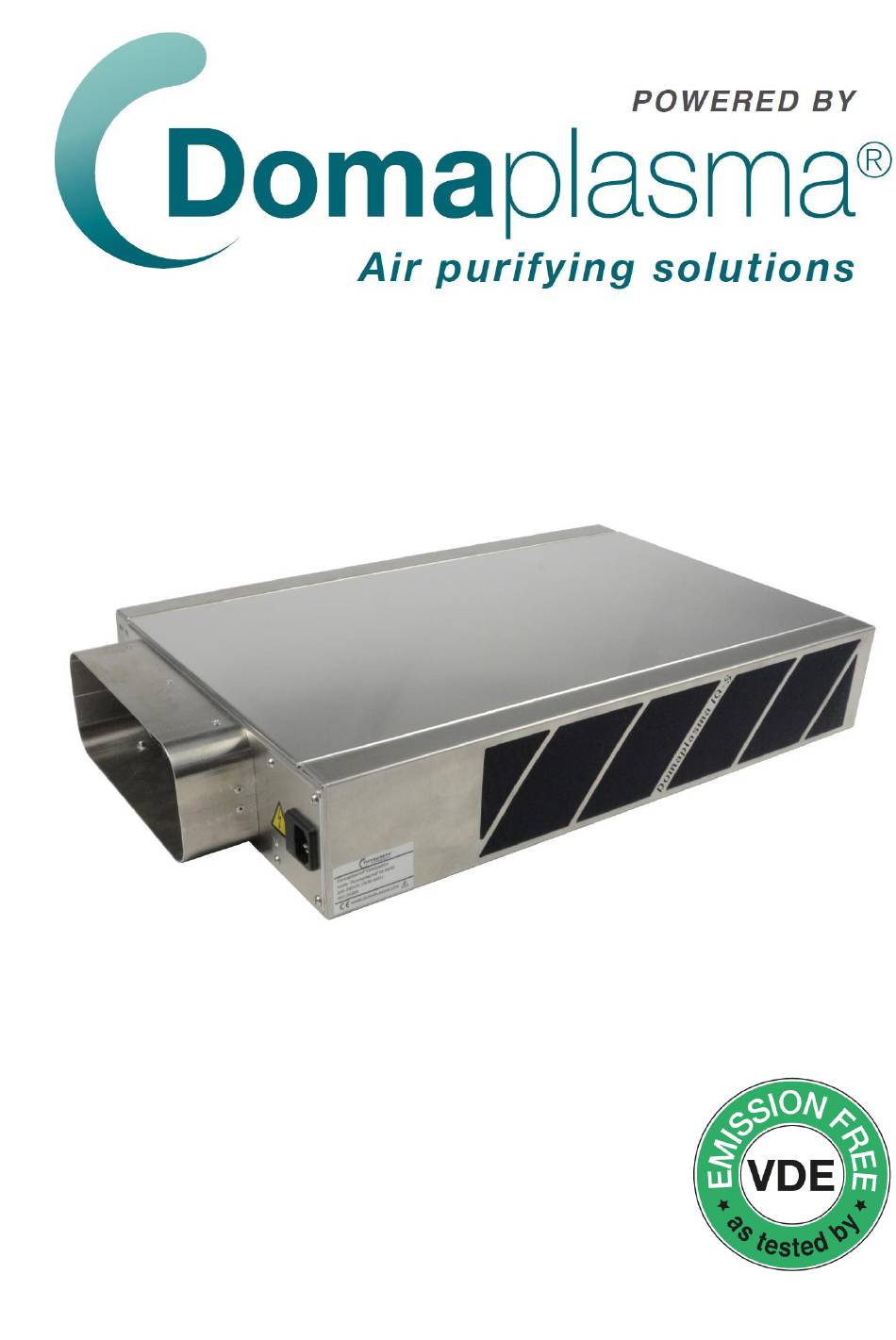

- Page 1 USER & INSTALLATION INSTRUCTIONS DOMAPLASMA ® -IQS MODELS: IQS650 / IQS850 IBDp-IQS 03/2018-GB...
-
Page 2: Table Of Contents
1.1 Domaplasma ® technology 1.2 Customer service / device information / specifications/ VDE certification 1.3 Installation Domaplasma-IQS 650 / 850 2. Safety regulations 2.1 Regulations for installation and use 2.2 Regulations for maintenance and cleaning 2.3 Tips for achieving maximum efficiency deodorization 9-10 3. -
Page 3: General
(according to the norm IEC/DIN-EN 60335-2-65 Ed. 2.1–32) had very positive results. Based on the above results the VDE rated the Domaplasma system as a secure and functional solution to clean the in-house and kitchen air. Thus, Domaplasma received (as the first company in this field) the VDE-certificate Nr. - Page 4 When suitable we can adapt shapes and capacities of the various Domaplasma ® models, depending on specific uses and amounts.
-
Page 5: Customer Service / Device Information / Specifications/ Vde Certification
1.2 Customer service To prepare our customer service carefully for repairs and make sure they have all the necessary parts available, we would like to receive the following information when submitting a service request: Your address Your telephone and fax number (if applicable) When can thecustomer service visit you? Exact device designation/name (see type plate and/or proof of purchase) Model name: ........................ -
Page 6: Installation Domaplasma-Iqs 650 / 850

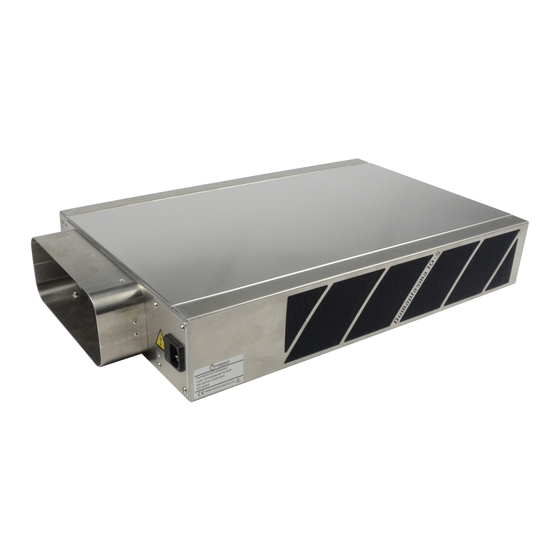

DP-unit 780x330x98mm Plinth or ceiling model Suitable for ventilators up to 1.060 m3/h 1.3 Installation Domaplasma-IQS Intended use Please read these instructions carefully and keep them in order to consult this information later if required. This user guide may, if applicable, be passed to the new owner. - Page 7 The Domaplasma ® -IQS is equipped with three air outlets, these are the black areas on the sides of the device. The Domaplasma ® unit must always be installed: a) in a horizontal position lying with the backside on the surface, b) in a horizontal position with the backside attached to the ceiling or c) in a vertical position hanging from the wall, backside attached.
-
Page 8: Safety Regulations
• The metal grease filters of the cooker hood must be cleaned at least every 2 to 3 weeks. Otherwise there is a risk that the metal grease filter and the Domaplasma ® filter “gather too much grease” on the interior and thereby reduce or cancel out the efficiency of the Domaplasma ®... -
Page 9: Regulations For Maintenance And Cleaning
• During all maintenance and cleaning activities, the power plug must be removed from the power connection or the (main) power switch of the specific connection or the house must be turned off. • Maintenance and cleaning the interior of the Domaplasma ® filter must be carried out by the producer, or any warranty or responsibility is invalidated. - Page 10 If the metal grease filters (in combination with the black fine filters) are not cleaned regularly, the Domaplasma air purification technology will get filthy faster and lose its effectiveness in the long run.
-
Page 11: Installation
Dimensions of the Domaplasma ®- filter The air outlets are located on the three black sides of the Domaplasma ® filter. Ensure that those three sides are not placed against the wall or ceiling or cabinet when installing the Domaplasma ®... -
Page 12: Installation Instructions
Electrical connection Check before plugging into the electrical connection whether the data on the type plate and the local power supply correspond. The type plate is placed next to the C14 power connection of the Domaplasma ® filter. The Domaplasma ®... -
Page 13: Metal Grease Filter
In order to achieve effective air purification, it is necessary to clean the metal grease filter (aluminium or stainless-steel grease filter) regularly - preferably every 2 to 3 weeks. Otherwise there is a risk that the grease filter and the Domaplasma ®... - Page 14 3. Take the piece of Hyabsorb ® fine filter and place it onto the metal grease filter of the cooker hood (fig. 5). Fig. 4: Fig. 5: 4. Take the supplied stainless-steel mounting rods and place them on the metal grease filter.
- Page 15 Repeat the above procedure for the remaining metal grease filters (if appropriate) and place them back in the cooker hood. The Domaplasma ® filter is now ready for use.
-
Page 16: Contact Information Producer
Let the filter dry overnight and place back, placing back can be done while the filter is still slightly moist. 4. Contact details producing company Producer Domaplasma BV Address Felland 5c , NL-9753 TA HAREN / P.O. box 143, NL-9750 AC HAREN Telephone... -
Page 17: Vde Certificate Iqs650 & Iqs850
5.1 VDE Certificate IQS... -
Page 19: Cb Certificate
5.2 CB Certificate... -
Page 20: Your Notes
5.3 Your notes ………………………………………………………………………………………………………………………… ………………………………………………………………………………………………………………………… ………………………………………………………………………………………………………………………… ………………………………………………………………………………………………………………………… ………………………………………………………………………………………………………………………… ………………………………………………………………………………………………………………………… ………………………………………………………………………………………………………………………… ………………………………………………………………………………………………………………………… ………………………………………………………………………………………………………………………… ………………………………………………………………………………………………………………………… ………………………………………………………………………………………………………………………… ………………………………………………………………………………………………………………………… ………………………………………………………………………………………………………………………… ………………………………………………………………………………………………………………………… ………………………………………………………………………………………………………………………… ………………………………………………………………………………………………………………………… ………………………………………………………………………………………………………………………… ………………………………………………………………………………………………………………………… ………………………………………………………………………………………………………………………… ………………………………………………………………………………………………………………………… ………………………………………………………………………………………………………………………… …………………………………………………………………………………………………………………………...
