Related Manuals for IXO Peugeot 205 GTI BOX
Summary of Contents for IXO Peugeot 205 GTI BOX

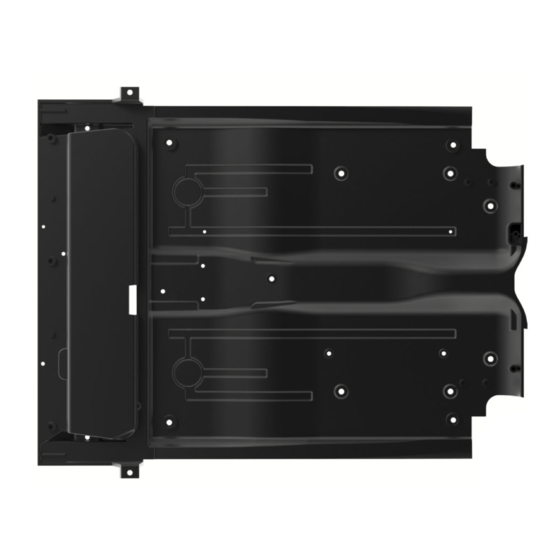

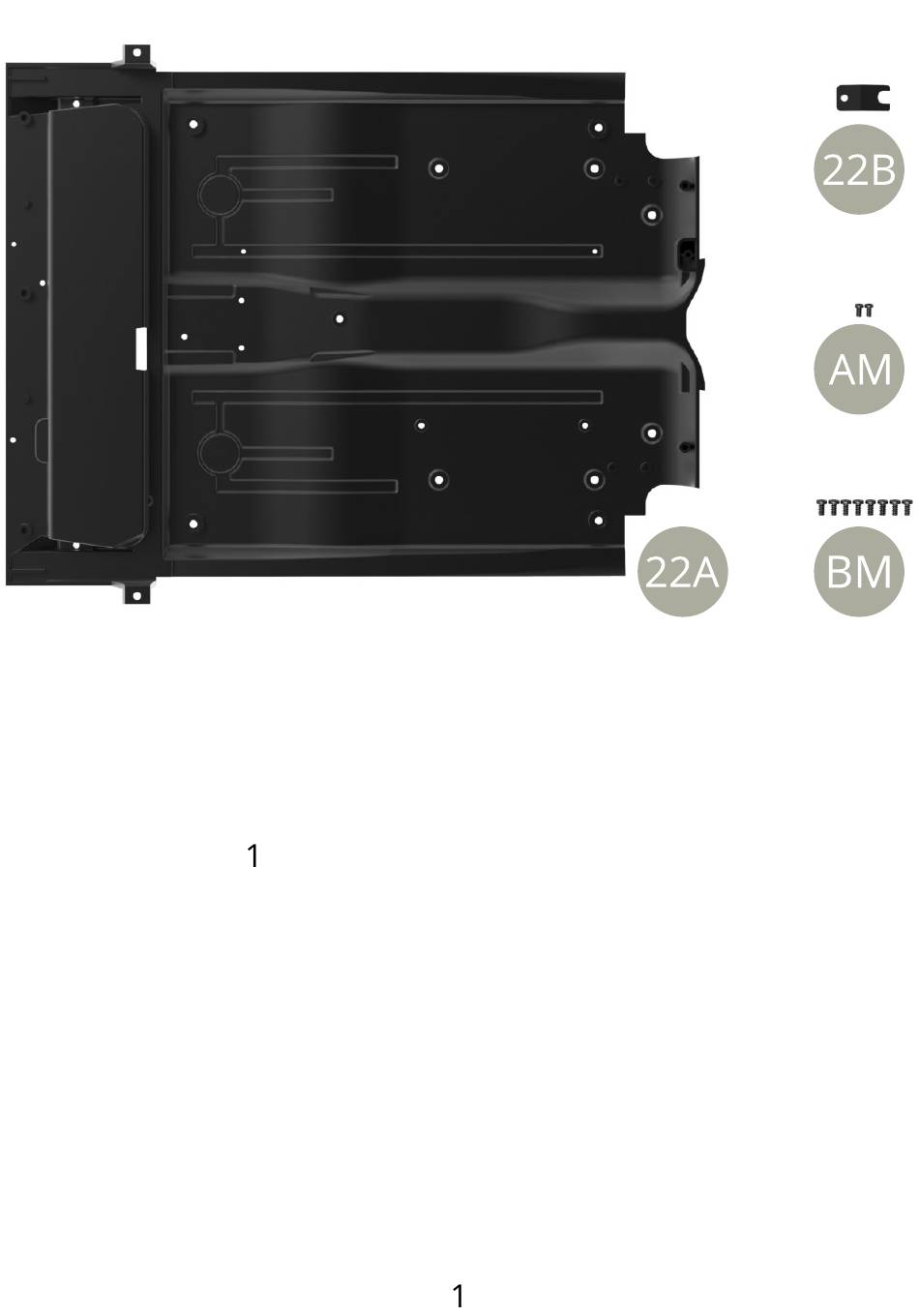

- Page 1 22A Chassis panel 22B Pinion shaft support AM M ,7 x3mm ( x2 ) BM M2,0 x4 ( x8 )
- Page 2 Remove the pacer plank by undoing two screws . Align 22A Cha i panel to 10A Front wheel arc frame bars . Pass 11I Fuel feed pipe under 22A Cha i panel ( see next illustration ) and leave 12G and 14G Brake fluid pipe on top of 22A Cha i panel .
- Page 3 Lead out 11I Fuel feed pipe and leave loose . Fix 22A Cha i panel to 10A Front wheel arc frame with six BM crew .
- Page 4 Fit 22B Pinion haft upport to 22A Cha i planel and 17D Pinion haft ( illustration below ) and fix with AM crew .
- Page 5 Check function of front wheel steering mechanism : turn any of front wheels ( blue arrow ) to observe in response 17G Shaft rotation green arrow and vice versa ; turn 17G Shaft ( green arrow ) to observe front wheel turning in response ( blue arrow...
- Page 6 Final views .
- Page 7 Assembly drawings .
