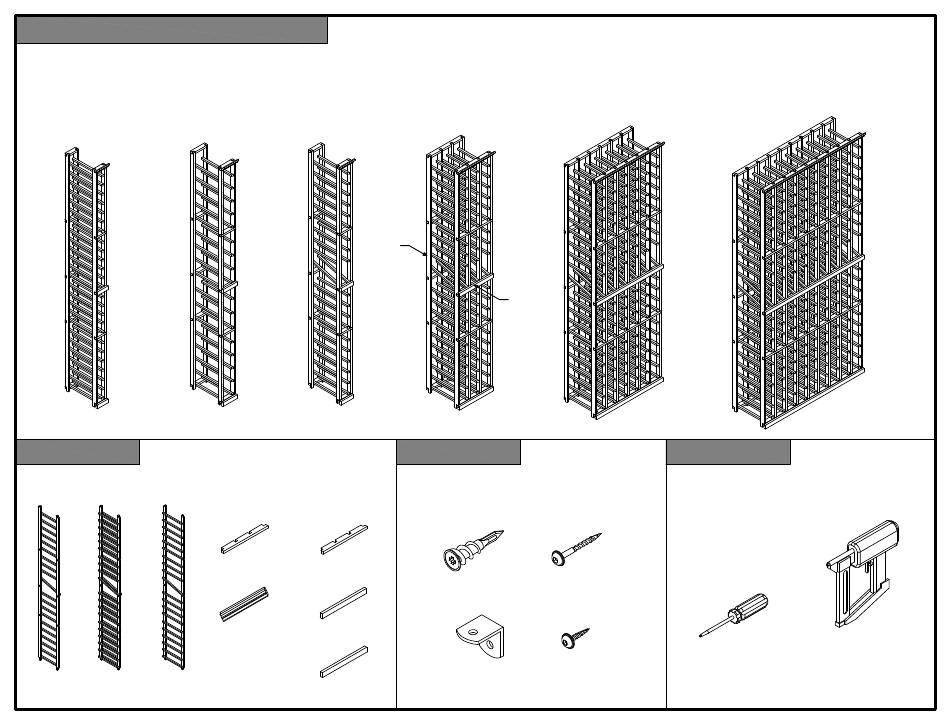

ELITE KIT RACK ASSEMBLY INSTRUCTION
375ml SINGLE COLUMN RACK
1.5L SINGLE COLUMN RACK
COMPONENTS
The following components are included in the 750ml 3 COLUMN RACK.
(COMPONENTS WILL VARY IN QUANTITY AND SIZE, DEPENDING ON KIT.)
4a - Front Spacer Bars 353
1 - Left
2 - Middle
3 - Right
Ladder 2130
Ladders 2130
Ladder 2130
(QTY: 1)
(QTY: 2)
(QTY: 1)
Thank you for purchasing Elite Kit Rack by Genuwine Cellars. The following
instructions will help you assemble the 750ml 3 COLUMN RACK. The same
procedure can be applied to the following kits shown.
Please study the instructions carefully prior to starting the assembly.
750ml SINGLE COLUMN RACK
Back
4b - Back Spacer Bars 353
(QTY: 5)
(QTY: 5)
7 - Base Mould
6 - Crown Mould
(QTY: 1)
(QTY: 1)
5 - Tilt Stop
(QTY: 1)
750ml 6 COLUMN RACK
750ml 3 COLUMN RACK
Front
HARDWARE
The following hardware is included in all kits:
(QUANTITY WILL VARY, DEPENDING ON KIT.)
#8 Robertson Screws
Drywall Anchors
(Square Head)
(QTY: 3)
(QTY: 3)
#6 Robertson Screws
(Square Head)
Angled Brackets
(QTY: 3)
(QTY: 3)
750ml 9 COLUMN RACK
TOOLS REQUIRED
The following tools are required (NOT INCLUDED):
IMPORTANT!
Always follow the manufacturer's
instructions on how to use the nail
gun, to prevent injury. Genuwine
Cellars is not liable for any injury
incurred while assembling the kit.
We Recommend A
21 Gauge Nail Gun
Robertson
(Use 21 gauge brand nails,
Screwdrivers #6 & #8
with appropiate air compressor
(Square Head)
or electric nailer set to 80psi,
to prevent spliting)
Advertisement
Table of Contents
Related Manuals for Genuwine Cellars ELITE KIT RACK
Summary of Contents for Genuwine Cellars ELITE KIT RACK
- Page 1 ELITE KIT RACK ASSEMBLY INSTRUCTION Thank you for purchasing Elite Kit Rack by Genuwine Cellars. The following instructions will help you assemble the 750ml 3 COLUMN RACK. The same procedure can be applied to the following kits shown. Please study the instructions carefully prior to starting the assembly.
- Page 2 STEP STEP Starting from the back of the racks. Place the ladders on flat, soft surface, so not to damage From the bottom and working your way up, place the back spacer bars (4b) according to the front of racks. Space the ladders accordingly. (Note: Ensure proper placement of ladders, ladder notches.
- Page 3 STEP STEP With the help of another person, turn the rack so the back is on the floor, and the front is facing From the front and bottom of the rack, firmly apply up. Starting from bottom up, place the front spacer bars (4a) according to the ladder notches. pressure to lock in the joint.
