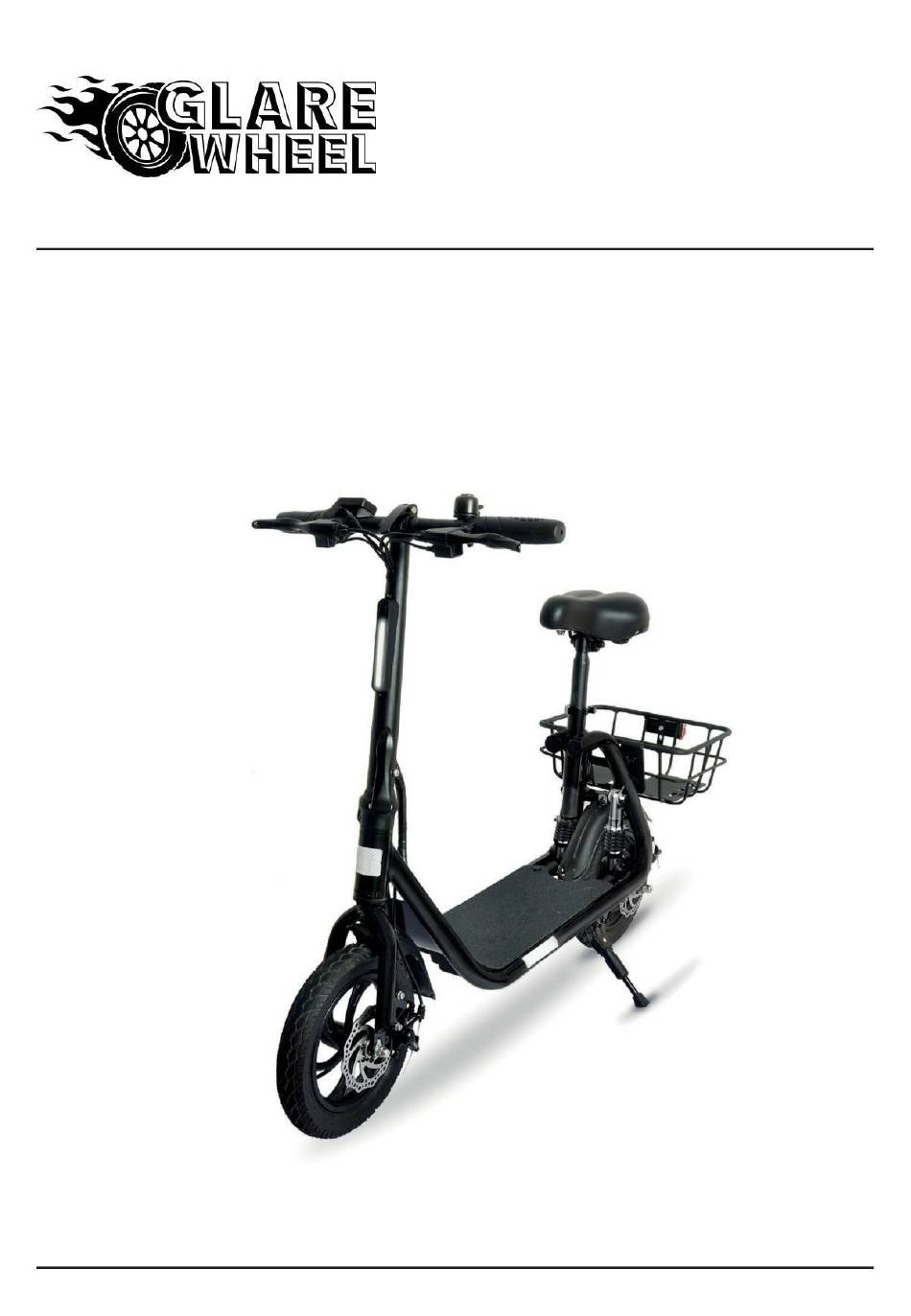

- Page 1 Folding E-Scooter GWEB-C1PRO Instruction Manual ORIGINAL INSTRUCTION MANUAL Item / IT number: 142309 Edition: 9/2020 Revision: Version 01...
- Page 2 Table of contents Technical specifications Introduction Intended Use Package contents Important safety instructions Preparation Display functions Using the battery First use Maintenance and care Warranty Information on disposal Declaration / certificate of conformity Notes Technical specifications Material Aluminium Maximum range approx.
- Page 3 The manufacturer reserves the right to make changes to the product. The instruction manual and illustrations within it may differ depending on the model. We hope you enjoy using the GWEB-C1PRO Folding E-Scooter! Explanation of symbols WARNING! Contains important information to avoid injuries.
- Page 4 Intended use The GWEB-C1PRO Folding E-Scooter is a vehicle (fun vehicle) designed for transporting one person. The Folding E-Scooter is exclusively private and is not suitable for commercial use. Only use the Folding E-Scooter as described in this instruction manual. Any other use is considered improper and may result in material damage or even injury to people.
- Page 5 Important safety information WARNING! • Please strictly comply with the safety regulations stated in the manual. The producer or distributor cannot be held liable for any injury to persons, material damage, accidents or legal disputes resulting from the violation of the safety regulations.
- Page 6 Important safety information WARNING! • The Folding E-Scooter has been designed to transport one person with a maximum weight of 120 kg. • The Folding E-Scooter is suitable for use on flat, dry surfa- ces. Do not ride through water, in rainy conditions, at night or when visibility conditions are poor.
- Page 7 Important safety information WARNING! • The Folding E-Scooter is equipped with a lithium ion battery. Please note that in some countries there are separate regu- lations for transporting lithium ion batteries. • The best operating temperature for the battery is between 10°...
- Page 8 Preparation Take the Folding E-Scooter out of its box, pull the locking lever on the steering column forward and fold the handlebar up. Then push the lever back again. Open the quick release in the middle of the handlebar and turn the handlebar to a position that's comfortable for you.
- Page 9 Preparation Remove the 4 mounting screws for the luggage rack above the rear mudguard. Adjust the luggage rack and fix it in place with the screws you just removed. Check the pressure of the tyres. Make sure that the front light, rear light and bell are working. Check the battery capacity on the display before setting off.
- Page 10 Display functions Button functions The display has three buttons: • Press and hold to turn the display on or off. • Press briefly to choose between the following display opti- ons: 1. ODO shows the total distance covered 2. TRIP shows the distance travelled since the scooter was last turned on 3.
- Page 11 Display functions Display Description Speed Charge level indicator Battery voltage in volts Total distance Distance since being turned Speed level*: ECO: 13 km/h MID: 18 km/h HIGH: 23 km/h *Guide values, with a user weighing approx. 75 kg and with a fully charged battery on smooth, even road surfaces and under optimal temperature conditions (see pages 12, 13 and 14) WARNING!
- Page 12 Using the battery Charging the battery: Charging port 1. The charging port is located at the rear end of the running board as shown. 2. Open the protective cap over the charging port 3. Make sure the charging port and charger are dry. 4.
- Page 13 Using the battery WARNING! • Never remove the battery from the Folding E-Scooter. • Charge the battery every 2 months for at least 1 hour, even if the Folding E-Scooter has not been in use, otherwise it will lose capacity. •...
- Page 14 Using the battery WARNING! • Depending on the charge state, lithium batteries have a freezing point of approx. -20° C to -25° C. If a battery cell freezes, it will be irretrievably destroyed and the whole battery will need to be replaced. A lithium battery loses capacity at low temperatures just like conventional batteries.
- Page 15 First use Before you begin: Wear a safety helmet and protectors for your own safety. • Wear comfortable leisure or sports clothing and flat shoes while riding. • Before riding for the first time, make sure you have plenty of space and ensure that there are no obstacles in the way. •...
- Page 16 First use First steps • Use the throttle twist grip to accelerate. • You can use the front and rear brakes to brake. • You can choose between three speed levels (see section on "Display functions" on page 10). Throttle twistgrip Front wheel brake Rear wheel brake Always turn the...
- Page 17 Maintenance and care • Before each ride, please make sure that all screws or self-lo- cking fasteners and quick release clamps are tightened and that the the handlebar's locking lever is well engaged. • Make sure the tyre pressure is correct (see page 9)! •...
- Page 18 Maintenance and care • Store your Folding E-Scooter in a dry and cool place. • A well-maintained battery can still provide good performance even after many kilometres. Charge the battery after each ride and avoid operating the battery on "empty". Please note that the performance of the battery decreases continuously at low temperatures (see section on "Using the battery"...
- Page 19 Maintenance and care Adjusting the brake callipers: • Check regularly to see whether the brake callipers of the two disc brakes are properly adjusted. • You will need theAllen key and a rubber band to adjust the brake callipers: 1. Slightly loosen the two brake calliper mounting bolts until you can move the brake calliper.
- Page 20 Maintenance and care Tautening/loosening the brake cables: 1. To tauten or loosen a brake cable, you first need to loosen the lock nut on the brake lever in question. 2. Then turn the adjusting nut to tauten the brake cable (distan- ce between the brake shoes and brake disc is reduced), or in the opposite direction to loosen it (distance between the brake shoes and brake disc increases).
- Page 21 Maintenance and care Changing the battery for the rear light • If the batteries in the rear light are empty, they must be repla- ced by 2 equivalent LR03 (AAA) 1.5V batteries. • Open the rear light housing with a coin. •...
- Page 22 The warranty for the GWEB-C1PRO Folding E-Scooter is valid for 6 months from the date of purchase (date of receipt). The battery has a warranty of 6 months from the date of purcha-...
- Page 23 Warranty If a malfunction/defect occurs, the dealer must be informed im- mediately, and the problem that has occurred must be described to them in detail. If the problem cannot be solved in this way, the thoroughly cleaned product, including all accessories, must be packaged for safe transport and returned in accordance with the dealer's instructions.
- Page 24 Warranty The warranty does not apply in the following cases: • Use other than the intended, • improper operation, care and/or maintenance or storage (e.g. damage caused by moisture or excessive temperatu- res, neglected products, etc.) • in the case of repairs, repair attempts and modifications of any kind as well as the use of third-party spare parts and accessories etc., which have been carried out by anyone other than Glare Technology USA Inc or companies...
- Page 25 Notes on disposal Old appliances may not be disposed of with household waste! If the Folding E- Scooter can no longer be used, all consu- mers are required by law to bring the old appliance to a separate waste collection point, for example in their community or district, and must not dispose of them in the household waste.
- Page 26 Notes...
- Page 27 Notes...
Need help?
Do you have a question about the GWEB-C1PRO and is the answer not in the manual?
Questions and answers
the charger for 4 years c1 scooter when fully charged it would always first red when charging when full it sold green now blinking red to green with new charger from glare wheel what's going on bought last week we never use in rain or snow only sunny days we take very good care of this bike don't wont fire in our home when not in use charged every 4 weeks
When the charger for the GLARE WHEEL GWEB-C1PRO scooter changes from red to green, it means the battery is fully charged. Charging should be stopped at this point.
This answer is automatically generated
Mr. Anderson, I understand its 4 years charging this c1 scooter when charging the battery, the light is red when fully charged it would change to green now last week started blinking red to green flashing both its not a sold green do you understand
charger is blinking red to green battery is full c1 scooter we just replaced from you last week new one blinking to green to red please help bought in 2020 heartland America
The charger for the GLARE WHEEL GWEB-C1PRO scooter shows a red light while charging and changes to green when the battery is full. The blinking or transition from red to green indicates the battery is reaching full charge. Once it turns green, charging is complete and should be stopped.
This answer is automatically generated
@joseph bongiovi joseph bongiovi
Tested charger and battery both are good but when turning the key on the led lights come on briefly then then there is no power to throttle or lights
The issue could be related to the battery. Possible causes include:
1. Low Battery Charge – The battery may be depleted. Try charging it fully.
2. Loose or Faulty Connections – Ensure the charging port and battery connections are secure.
3. Battery Defect – If the battery is faulty, it may need replacement (covered under a 6-month warranty).
4. Power Switch Issue – The scooter may not be properly turned on.
5. Error Code – Check the display for any error codes indicating a system issue.
If charging and checking connections do not resolve the issue, the battery or internal electronics may need servicing.
This answer is automatically generated
To my last message the model#EB-C1 it does not say EB-C1 PRO just EB-C1
What if I have a flat back tire. How do I fix it?
