- Page 1 USER MANUAL HDMI Digital Audio Decoder HDMI TO HDMI+VGA+SPDIF+5.1CH+HP Enjoy the vivid world! REMARK Manufacturer does not make any commitment to update the information contained herein. Dear customer...
- Page 2 Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. The products are designed to make your A/V device use more convenient, comfortable, productive and cost-efficient.

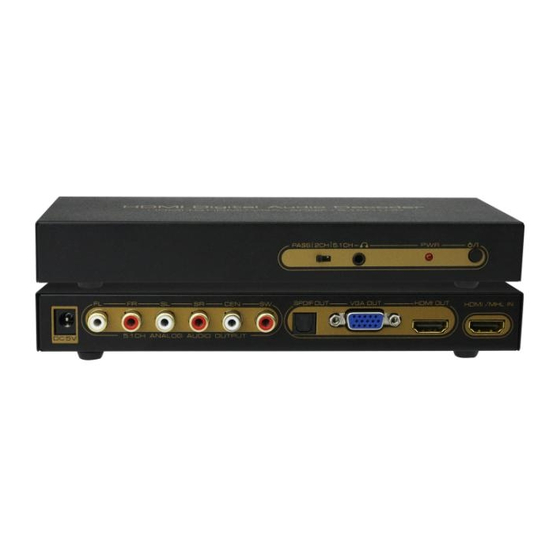

- Page 3 3． MHL-HDMI cable 1pcs（Optional） 4． User manual 1pcs FEATURES OF THE INTERFACE: FIG.1.0 Front Panel View SWITCH: Audio EDID mode switch. This switch allows users to select the source's audio EDID. PASS：HDMI pass mode. Switch to PASS mode for the HDMI source to output audio per the EDID of connected TV or AV receiver, supports up to LPCM 7.1 channels.
- Page 4 FIG.1.1 Rear Panel View DC5V: 5V DC in jack FL/FR: Front L/R analog output SL/SR: Surround L/R analog output CEN: Center analog output Sub woof analog output SPDIF OUT: Optical/Toslink output VGA OUT: VGA analog video output HDMI OUT: HDMI output HDMI/MHL IN: HDMI/MHL dual mode input OPERATIONG AND CONNECTION: 1.
- Page 5 TV/Monitor Power amplifier DVD/BD/STB HDMI cable Optical fiber HDMI cable VGA cable AV cable X6 HDCN0012M1 FIG.1.2 CONNECTION DIAGRAM...
- Page 6 SPECIFICATIONS: HDCN0012M1 HDMI resolution …………………………........up to 1080P/50/60fs（3D 24/30fs） MHL input resolution ….......720P 60Hz/1080P 30Hz/1080P 60Hz (packedpixel mode) VGA output resolution ………................up to 1920 x 1080@60Hz Support video color format …………………………..…..…………………….24bit/deep color 30bit,36bit HDMI Audio Format………………..DTS-HD/Dolby-TrueHD/LPCM 2/5.1/7.1CH/DTS/Dolby-AC3/DSD Digital audio decode format…………………………………………Dolby Digital (AC3)/DTS/LPCM 2CH HDMI Max bandwidth………………………………………………………….……………………...225MHz...
- Page 7 Notes: Pls use the machine as the instruction listed to keep the long use lifetime of the machine. 1. The machine should be placed at the spot far from the Damp, High-Temperature, Dusty, Erosive, and oxidative environment. 2. All parts will be free from the strong shake, hit, fall. 3.
