- Page 1 D E L A Y...
- Page 3 In the path to complete our line of Efektor plugins, Kuassa present the Efektor DL3606 Delay. Efektor DL3606 brings five most common types of delay effect to your...
- Page 4 Key Features: • 5 popular delay types: Digital: Clean and clear, with wide frequency range. Analog: Dark and mushy, inspired by the bucket brigade delay pedals Lo-Fi: Grainy and dirty, lower bitrate with reduced frequency range Tape: Simulated the warm and lush sound of vintage tape units Reverse: Repeats the signal backwards for ethereal and ambient effect •...
- Page 5 Note for Windows Vista, 7, or later: We recommend installation with Administrator rights using “Run as Administrator” for both Kuassa Installer and Sequencer/Host installer. For Windows Installer (.exe), double-click the installer and follow the instructions. The installer automatically point to your system's default plugins path (see below).
- Page 6 /Users/[YourName]/Music/Audio Music Apps/Kuassa/*/* Windows VISTA or Later Use “Add/Remove programs” or “Programs and Features” from the Windows Control Panel. If EFEKTOR Plug-in(s) does not listed, delete the .dll file from your VST plug-in folder. And other EFEKTOR file resources at ~\Documents\Kuassa\*\*...
- Page 7 On evaluation mode, you will To start the authorization Locate the License File see this pop-up window process, click the [File] button [ EfektorDL3606.kuassa] when you first start the plugin. on the top-left of the plug-in’s obtained from the interface, there, you will find...
- Page 8 After you locate the License To check if you have File, a pop-up box confirming completed the authorization that you are successfully process, just simply load the authorize your plug-in will About Box by clicking the show. Efektor logo on the bottom left corner.

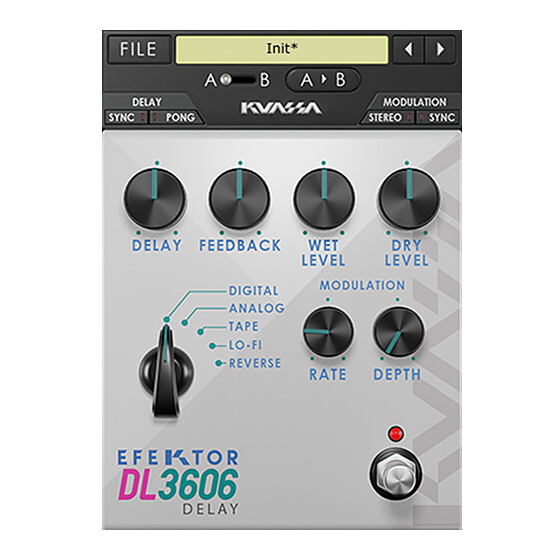

- Page 9 [FILE] BUTTON: The Menu button contains several functions; preset saving, and shortcuts to the user manual and Kuassa website. PRESET SELECTOR: Select from available Presets, press left-right buttons or select from drop down menu. A-B COMPARE: Compares two different settings of the effect.
- Page 10 Presets for EFEKTOR Plug-in(s) are located in the following folders*: To save a preset, set your plugin to the desired parameter settings, then • Mac: Users/[YourName]/Music/Audio Music Apps/Kuassa/Presets/ EfektorDL3606 select: • Win: ~\Documents\Kuassa\Presets\ EfektorDL3606 • “Save Preset”: Overwrites currently active preset.
- Page 11 When you create a new preset using “Save Preset As...”, make sure that you have chosen the correct preset folder as aforementioned on point 1 above to make sure that it will be recognized automatically by EFEKTOR plug-ins.
- Page 12 To add new additional preset banks, create a new folder by clicking “New Folder” button and rename it. Sub-folders are also recognized to manage presets into groups, useful to manage additional preset bank, or grouping presets based by their use.
- Page 14 BYPASS FEEDBACK Turns on, off or bypass the rack extension. Sets the amount of signal that is sent back to the effect unit. TYPE SELECTOR WET LEVEL There are multiple fx models emulated within the device, Controls the level of delayed signal. each comes from different era, with different flavor, and character.
- Page 15 CV INPUTS CV Input Socket: Receives incoming CV message for controlling each of EFEKTOR's CV control enabled parameters from another device’s CV output. CV Input Trim: MIDI CC PARAMETER LIST Turn counter-clockwise for each corresponding input to trim or reduce the intensity of incoming CV message. (Propellerhead reason) = onBypass Audio input and output sockets :...
- Page 16 Kuassa Efektor Series Created by: Muhammad Abduh Intan Zariska Daniyanti Iman Firman Amarullah Juan Prahamma Hartjamt Dimitar Nalbantov Arie Ardiansyah Raden Pratama Kusuma Adhitya Sulistia Wibisana Bramantyo Ibrahim Cil Satriawan Grahadea Kusuf Iqbal Ansyori Sundawan Sukmaya Presets and Audio Demos by:...
- Page 17 D E L A Y KUASSA TEKNIKA, PT Jl. Sukasenang V No.14 Bandung 40124 A Product of KUASSA. Bandung, West Java. Indonesia West Java, INDONESIA © 2010-2019 PT Kuassa Teknika https://www.kuassa.com Efektor DL3606 General inquiry: info@kuassa.com All other commercial symbols, product and company names are trademarks or registered trademarks of their respective holders.
