- Page 1 Prime1 & Prime3 User and Maintenance Manual Date Author/s Checked Date 20/5/2020 Jack Wright Smith & Richard Smaldino 15/6/20 Rev.1 P a g e...
-
Page 2: Table Of Contents
Air filters ............7 4.1.3 Extraction filter ........... 8 Internal cleaning ..........8 Prime Specifications .......... 9 APPENDICES: ............ 11 APPENDIX A : PRIME1 SCHEMATIC (ON GRID) ..11 APPENDIX B : PRIME3 SCHEMATIC (ON GRID) ..12 Rev.1 P a g e... -
Page 3: Introduction
1. Introduction Installer: ………………………………………………………. Install Co: ……………………………………………………. About the Prime The Prime Series from EVO Power is a compact AC Phone: ………………………………………………………… coupled battery system engineered for the residential Email: ………………………………………………………… and commercial power markets providing high flexibility for solar self-consumption, load shifting and complete off grid power applications. -
Page 4: Component Identification

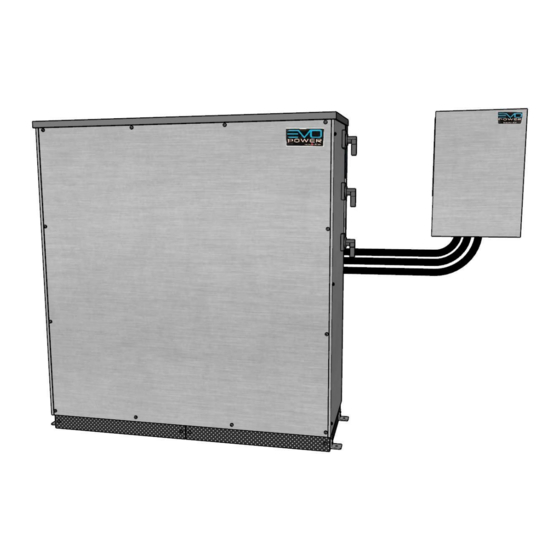

2. Component identification DC Isolator/s Isolation Box - “Isobox” Prime Enclosure Inside of Isobox Rev.1 P a g e... -
Page 5: Procedures
Evacuate area Call fire brigade 3.1.4 Other emergencies not covered: If unusual noise or smoke is coming from the Prime, or another emergency not listed, contact EVO Power. Shutdown procedure AC LOADS BREAKER Inside Isobox: Turn OFF AC Load Breaker:... -
Page 6: Startup Procedure
BATTERY Press Battery restart button in EVO Isolation Box: RESTART BUTTON AC LOADS iii. Turn ON AC Grid Breaker in EVO Isolation Box: BREAKER AC GRID Turn ON AC Load Breaker in EVO Isolation Box: BREAKER Caution: Removal of the Front Door of the Prime Enclosure may expose a user to dangerous and potentially lethal Electric currents. -
Page 7: Air Inlet/Vermin Screen
4.1.1 Air Inlet/Vermin screen The air inlet/vermin screens are at the front and back of the Prime. These are made of a black steel perforated material, and are attached to the Prime with 4 screws (4mm Hex Driver) at the front and 2 at the rear: Two screens One screen at front... -
Page 8: Extraction Filter
Clean underside filter by vacuum and/or water spray from side of airbox Internal cleaning EVO Prime can be installed in indoor and outdoor locations in a range of different locations so every system experience different temperatures and dust intake. For indoor installations that do not experience much dust ingress we recommend at a minimum of every 3 years. This is achieved by following the shutdown procedure detailed earlier and opening the front door of the enclosure (use 4mm hex driver) and inspecting the inside of the system to ensure there is no build-up of dust. -
Page 9: Prime Specifications
5. Prime Specifications Prime 1 Rev.1 P a g e... - Page 10 Useable energy & Nominal Energy is based on beginning of battery life at 25°C and at .3C charge/discharge rate Please refer to the detailed warranty documentation at the EVO Power website www.evopower.com.au Specifications may be updated without notice so please refer to the EVO Power website for the current information Rev.1...
-
Page 11: Appendices
6. APPENDICES: Note. Schematic for typical installation wiring example, Earth connections are not shown for clarity purposes APPENDIX A : PRIME1 SCHEMATIC (ON GRID) L1 - GRID L1 - GRID N - GRID N - GRID Thermocouple Existing 63A MCB L1 - GRID Temp. -
Page 12: Appendix B : Prime3 Schematic (On Grid)
Note. Schematic for typical installation wiring example, Earth connections are not shown for clarity purposes APPENDIX B : PRIME3 SCHEMATIC (ON GRID) L3 - GRID L3 - GRID L2 - GRID L2 - GRID L1 - GRID L1 - GRID N - GRID N - GRID Thermocouple...
