Important: Read all instructions prior to installation.
MiBoxer 2.4 GHz Wi-Fi Multi Zone RGBW
Controller and Remote

Parts Included

1 - 2.4GHz Wi-Fi Compatable RGBW Controller
1 - 2.4GHz Sync-able Multizone RF Touch Color Remote
1 - Double-sided Tape

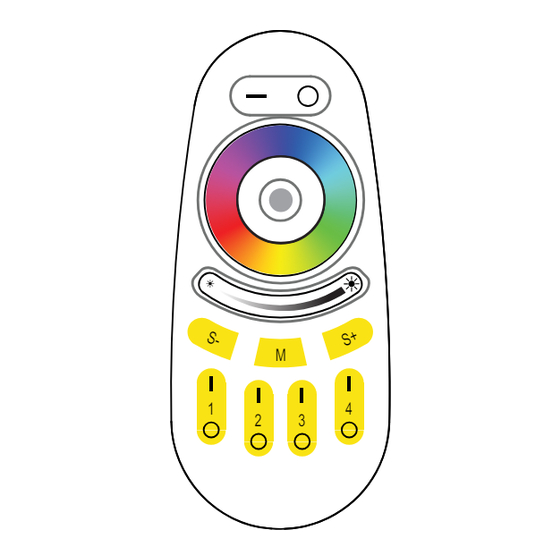

RF Remote
M
1
4
2
3
1

General Description

The LDRF-RGBW6-MZ LED controller features 4 total channels used to control RGBW
LED products, which are RGB products with individually controllable White LEDs on
the 4th channel. The White LED channel on RGBW products combined with a RGBW
controller will produce a pure white illumination. See "Wiring: Method 2" to achieve this
design using RGBW LED products.
Alternatively, the LDRF-RGBW6-MZ LED controller can be used to control 2 completely
different products, one RGB and another single color on the 4th channel. See "Wiring:
Method 1" to achieve this design using 2 LED products.
Control up to four separate "zones" of RGB lights to be linked and controlled by one
wireless remote.
Offers 9 dynamic modes with adjustable brightness, speed and mode retention
(controller resumes modes with the settings previously selected).
Instructions
Pre-test & Configure
May be used with RGB strips, bars, modules or other LED products.
Connect LEDs to power supply and controller (see "Method 1" or "Method 2"
diagram).
Turn on LEDs using the included remote controller to ensure proper operation
of the LEDs, power supply, controller, and remote.
Choose a suitable dry location for the power supply and controller. Before
double-sided tape is used on controller, ensure all surfaces are clean and dry.

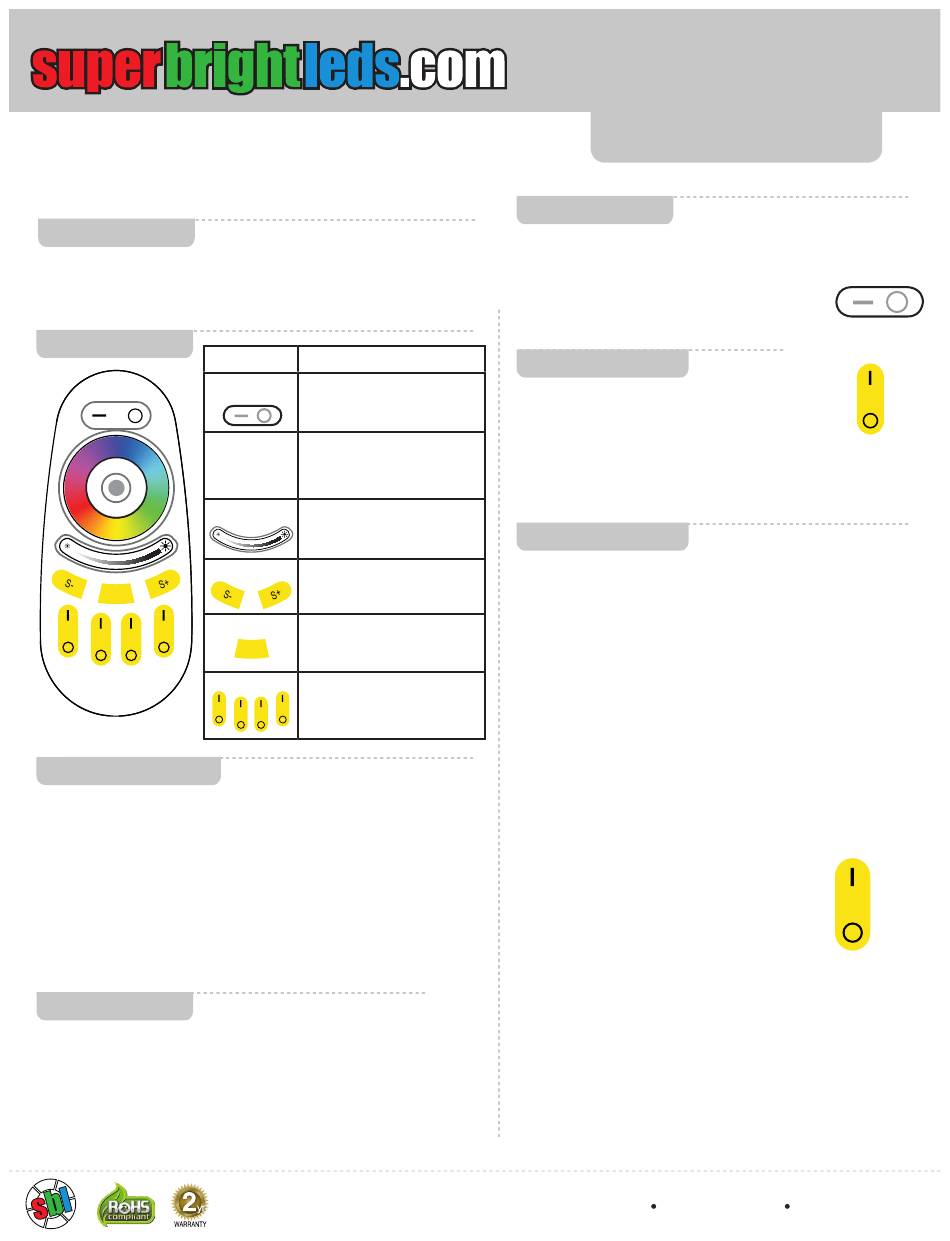

Button
Functions
Master On(-)/Off(O)
A master On(-)/Off(O) control for all zone-linked
RGB(W) LEDs. Also activates the "Master"
function, which allows control of all zones.
COLOR WHEEL
Directly selects color along a circular spectrum.
Use of Color Selection Ring overrides any previ-
ous settings, causing mode selection to start
over from Mode #1. To obtain white light only,
keep the "Zone On" (l) button depressed until the
light changes to a steady bright white.
BRIGHTNESS +/-
Brightness Touch Slider - Increase(Right
Side)/Decrease (Left Side)
Increases (right side) or decreases (left side)
the brightness level. Changing the active mode
resets the brightness level to full.
SPEED +/-
M
Mode Speed - Increase(S+)/Decrease (S-)
Increases (S+)/Decreases(S-) the tempo of the
mode pattern currently active.
1
4
2
3
M
M
MODE +/-
Mode Start/Scroll (M)
Modes feature different color combinations, light
1
4
4
transitions, and patterns, with 9 distinct modes.
2
3
2
3
M
This button initiates the Mode function and
scrolls through the modes in rotating order.
Zone ON(I) / OFF(O)
1
4
M
Allows up to four "zones" (i.e. channels) of
2
3
RGB(W) LEDs to be separately linked and
1
4
controlled by the remote. Pressing one of
2
3
the Zone ON(I) buttons activates that zone;
commands will affect only lights in that zone.
White Mode
1.
For all zones, press and hold the "Master ON
button", until LEDs turn white. Brightness is
adjustable and master mode is active.
2.
For individual zones, press and hold the "Zone
ON button" for the zone you want to control,
until LEDs turn white. Brightness is adjustable
and the last zone turned white is active.
Static Color Mode
1.
For all zones, press the "Master ON button"
once, to activate master mode. Use the
color wheel to directly select a color.
Brightness is adjustable.
2.
For individual zones, press the "Zone ON
button" once for the zone you want to
control. Use the color wheel to directly select
a color. Brightness is adjustable.

Controller Pairing

The LDRF-RGBW6-MZ features RF remote to controller device
pairing to help eliminate interference from other nearby units. If you
wish to control several controller devices from a single RF remote,
the controllers first must be re-programmed.
The easiest and fastest way to re-program several controller devices
at once is to have them share a power supply or all plug in to a
single power strip.
Once programmed you can provide power as you would otherwise,
sharing is only needed for the programming phase to ease the
process -- Re-programming can be done one device at a time also.
Controller Pairing:
Pairing a remote to a controller:
1.
Wire all controllers to one power supply or power
strip and turn the power off.
2.
Turn on the power supply or power strip and press
the "Zone ON button" once within 3 seconds for the
zone you wish to pair.
3.
If successful the LED product will flash twice
slowly.
4.
If the LED product flashes nine times quickly or not
at all, repeat steps one and two.
Unpairing a remote to a controller:
1.
Wire the controller to a power supply or power strip
and turn the power off.
2.
Turn on the power supply or power strip and press
and hold the "Zone ON button" once within 3
seconds for the zone you wish to unpair.
3.
If successful the LED product will flash nine times
quickly.
4.
If the LED product flashes twice slowly or not at all,
repeat steps one and two.
Pairing Note:
1.
One remote can be paired to any number of
controllers.
2.
One controller can be paired to up to four remotes.
Rev Date: V2.1 03/03/2020
4400 Earth City Expy, St. Louis, MO 63045
User Manual
LDRF-RGBW6-MZ
Controller: RGBW6-MZ
Remote: MZ-RGB-REMOTE
866-590-3533
superbrightleds.com
1.
ON
OFF
MASTER
2.
ON
X
OFF
ZONE
ON
X
OFF
ZONE
