superbrightleds MCBRF-VCT7 User Manual

Important: Read all instructions prior to installation.
Tunable White LED Controller with Wireless
RF Remote

Parts Included

1 - LED Controller
1 - Wireless Remote

Specifications

Color Temp. Grade
Dimming
PWM Grade
Color Temp. Shortcut
Brightness Shortcut
Overload Protection
Overheat Protection
Working Voltage
Battery
Remote frequency
Remote control distance
Rated Output Current
IP Rating
FCC ID

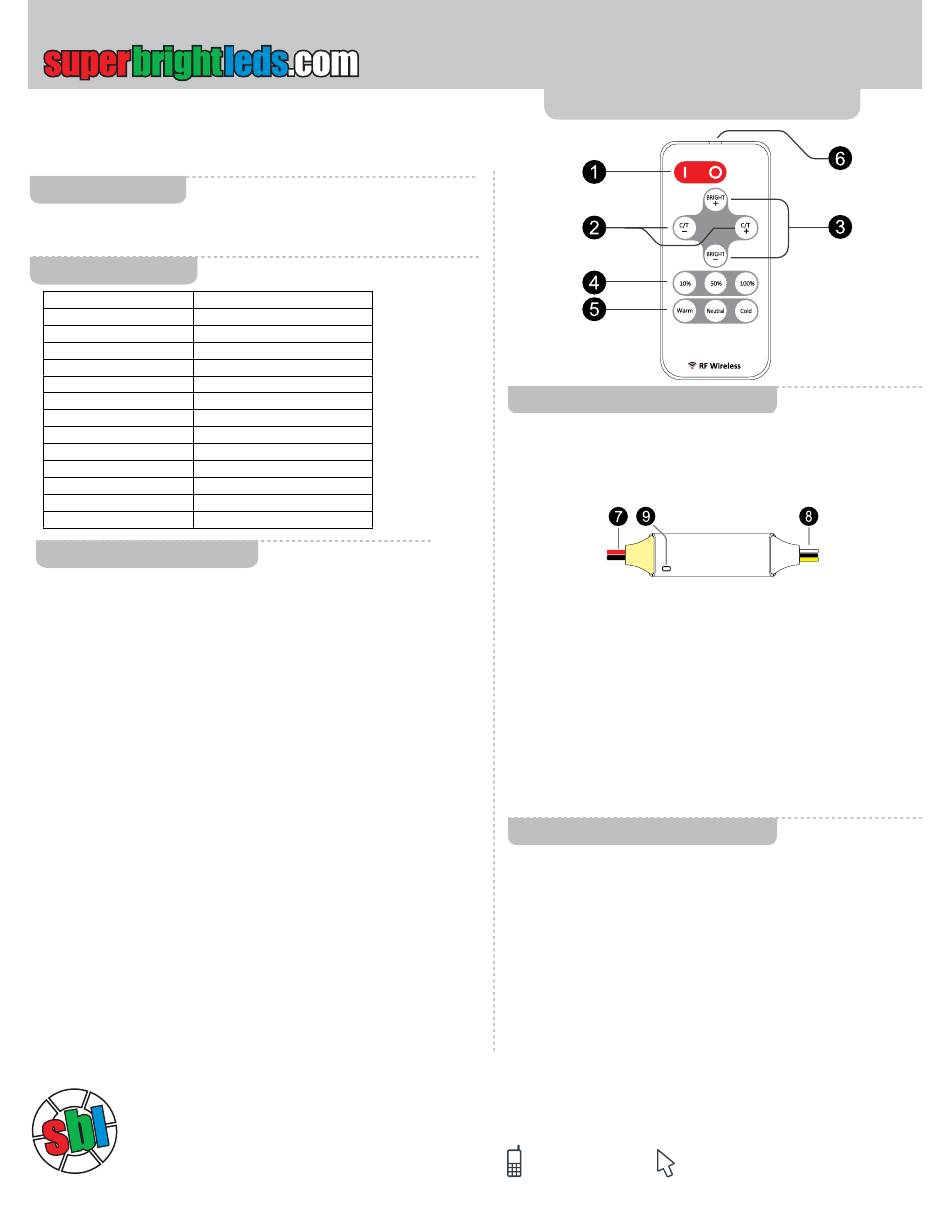

Wireless Remote Functions
1. Turn On/Standby
Press 'I' key to turn on unit or press 'O' key to turn off. Retains last setting between
power off and power on.
2. Color Temperature Adjust
To control color temperature, press 'C /T+' key to increase color temperature
by increasing the cool white channel output power and decreasing warm
white channel output power. Press ' C /T-' key to lower color temperature
by increasing warm white channel output power and decreasing cool white
channel output power. The overall brightness will remain unchanged when
adjusting color temperature.
3. Brightness Adjust
Press 'BRIGHT+' key to increase brightness and 'BRIGHT-' to decrease
brightness. The color temperature will remain unchanged when adjusting
brightness.
4. Brightness Shortcut
Press one of the shortcut buttons to set the relative shortcut brightness level.
3 shortcut keys '10%' , '50%' and '100%' are available.
5. Color Temperature Shortcut
Press one of the shortcut buttons to directly select the relative color
temperature. 3 shortcut keys 'Warm, 'Neutral' and 'Cold' are available. 'Warm'
and 'Cold' is pure warm or cool output, 'Neutral' is half warm and half cool
output.
6. Wireless Remote LED Indicator
Flashes blue when remote is operating to indicate that the remote is
functioning properly.
4400 Earth City Expy, St. Louis MO 63045
1 - CR2025 3V Battery
7 levels
7 levels
256 Steps
3 shortcuts
3 shortcuts
Yes
Yes
DC 5-24V
3V CR2025
433.92MHz
>15m at open area
2 x 7A
IP68
2ACJPRM03

User Manual

Part Number:
MCBRF-VCT7

Controller Installation

7. Power Supply Wiring
The controller/power supply operates at 5-24VDC. The red wire is positive(+)
and the black wire is negative(-) as indicated on the controller housing. Make
sure the power voltage matches the LED strip requirement. Incorrect voltage
may damage the LED strip.
To Power
Supply
8. LED Output Wiring
The black cable on the output side should be connected to LED positive, the white
cable should be connected to cool white LED's negative and the yellow cable
connected to warm white LED's negative.
9. Status Indicator
This is a full color status indicator. It displays all working statuses of the controller. It
indicates different events as following:
Blue: normal working.
Short single white flash: new command executed.
Long single white flash: reach mode or color cycle edge.
Long single yellow flash: reach speed or brightness limit.
Red flash: overload protected.
Yellow flash: overheat protected.
Remote Pairing Options
10. Using Remote
Prepare the wireless remote for use by removing the battery insulator. The remote
uses a 3V CR2025 battery. Note: The wireless remote operates using radio
frequency(RF). The remote's use is not restricted by normal obstructions such as
walls, doors, etc. Do not install controller in metal enclosures.
11. Pairing New Remote
The remote controller and main unit are 1 to 1 paired as default. Further more,
one main unit can be paired to 5 remotes and every remote can be paired to any
controller.
Please do the following steps to pair a new remote to the controller.
1.) Remote power of the controller and restore power again after 5 seconds.
2.) Press remote 'C/T+' and 'C/T-' key together in 5 seconds after power is restored.
After this operation, the main unit indicator will flash white 3 times, the master
unit now recognizes the new remote. Only 5 latest paired remote controllers can be
recognized by main unit.
866-590-3533 support@superbrightleds.com
To LED
Strip
