UE SYSTEMS INC.

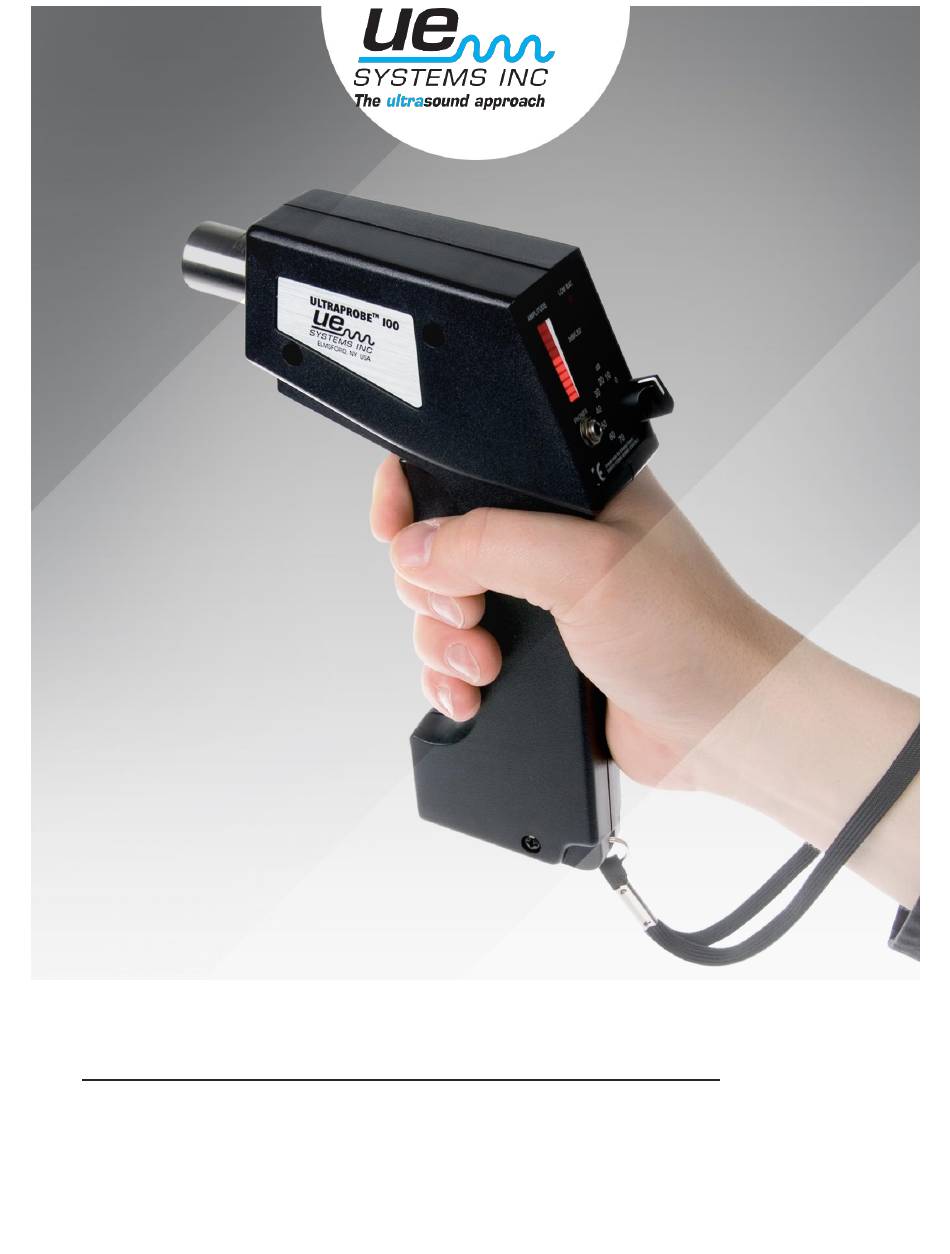

THE ULTRAPROBE 100
MANUAL
1

Advertisement

Table of Contents
loading

Summary of Contents for UE Systems Ultraprobe 100

  • Page 1 UE SYSTEMS INC. THE ULTRAPROBE 100 MANUAL...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS OVERVIEW Introduction Basic Components of Your Kit COMPONENTS Pistol Housing Scanning Module Contact (Stethoscope) Module Rubber Focusing Probe Long-Range Module Headset WTG-1 Warble Tone Generator...
  • Page 3: Overview

    OVERVIEW INTRODUCTION The ULTRAPROBE 100 provides easy, accurate leak detection andmechanical inspection through advance ultrasonic technology. Before you begin testing, it is advisable to familiarize yourself withthe basic components of your kit. BASIC COMPONENTS OF YOUR KIT Contact Extension Kit...
  • Page 4: Pistol Housing

    COMPONENTS PISTOL HOUSING The main component of the Ultraprobe 100 is its’ pistol housing. From back to front, let us examine each part. BAR GRAPH DISPLAY. The display consists of a ten segment LED bar graph that will indicate ultrasonic signal strength. A low number of LEDs indicate a low level of ultrasound, conversely more intense ultrasonic signals will display more LEDs.
  • Page 5: Scanning Module

    TRIGGER SWITCH. This is located on the underside of the Ultraprobe 100. The Ultraprobe is always “off” until the trigger switch is pressed. To operate, simply press the trigger and hold; to turn the instrument off, release the trigger. SCANNING MODULE This module is utilized to receive air-borne ultrasound such as the ultrasounds emitted by pressure leaks and electrical discharges.
  • Page 6: Rubber Focusing Probe

    RUBBER FOCUSING PROBE The Rubber Focusing Probe is a circular shaped rubber shield. It is used to block out stray ultrasound and to assist in narrowing the field of reception of the Scanning Module. To use, simply slip it over the front of the scanning module or the contact module. To prevent damage to the module plug, always remove the module BEFORE attaching NOTE: and removing the Rubber Focusing Probe.
  • Page 7 TO USE THE WARBLE TONE GENERATOR Turn Tone Generator on by selecting either “LOW” for a low amplitude signal or “HIGH” for high amplitude. To test the condition of the Warble Tone Generator battery, set to the LOW INTENSITY position and listen to the sound through the Ultraprobe headphones. A smooth continuous warbling sound should be heard.
  • Page 8 Consult with your safety director before entering the area. Need further support? Want information regarding products or training? CONTACT: UE Systems, Inc. 14 Hayes Street, Elmsford, NY 10523 USA 914-592-1220 | info@uesystems.com | www.uesystems.com...
