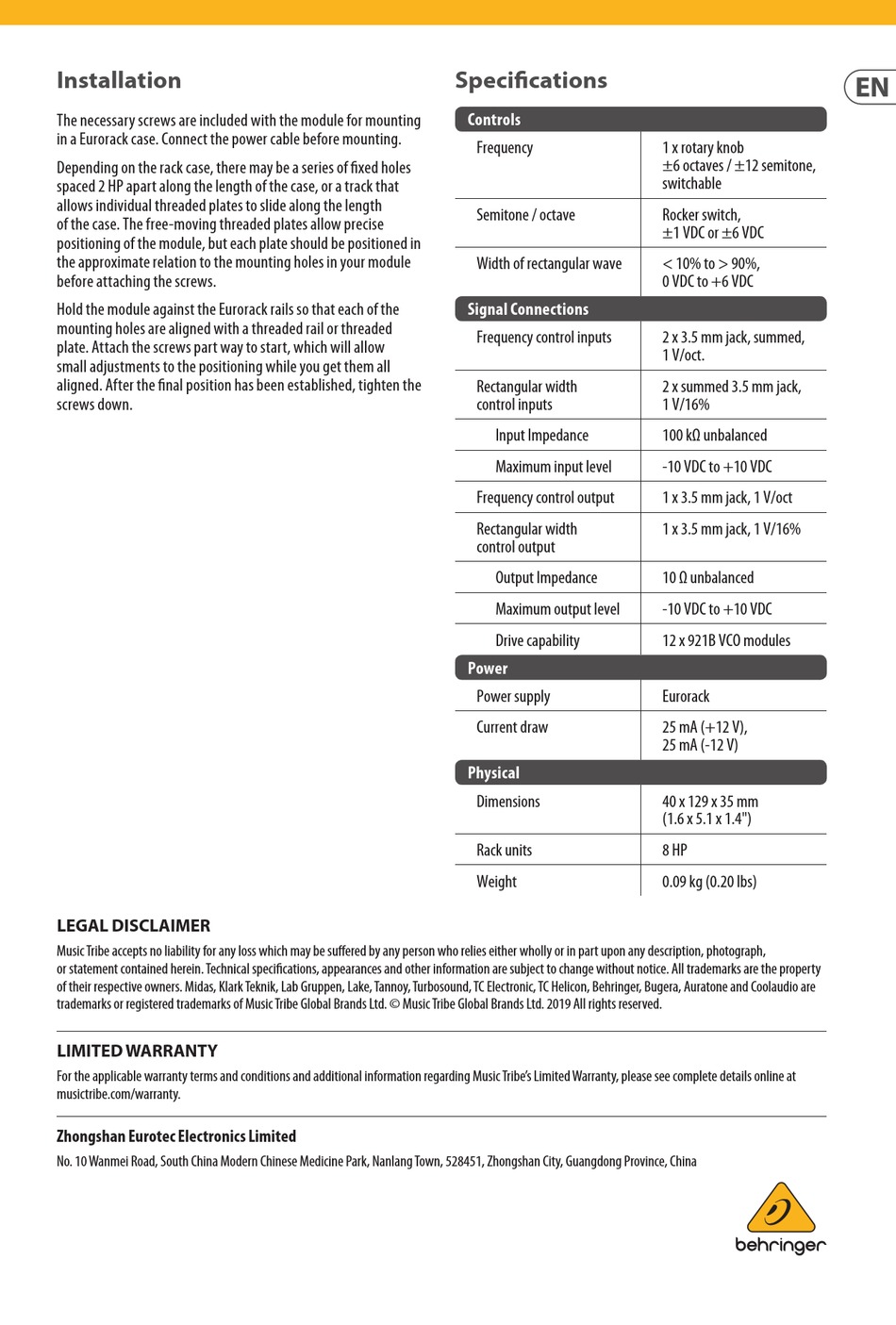

Behringer 921A Oscillator Driver Quick Start Manual page 2

Installation
The necessary screws are included with the module for mounting
in a Eurorack case. Connect the power cable before mounting.
Depending on the rack case, there may be a series of fixed holes
spaced 2 HP apart along the length of the case, or a track that
allows individual threaded plates to slide along the length
of the case. The free-moving threaded plates allow precise
positioning of the module, but each plate should be positioned in
the approximate relation to the mounting holes in your module
before attaching the screws.
Hold the module against the Eurorack rails so that each of the
mounting holes are aligned with a threaded rail or threaded
plate. Attach the screws part way to start, which will allow
small adjustments to the positioning while you get them all
aligned. After the final position has been established, tighten the
screws down.
LEGAL DISCLAIMER
Music Tribe accepts no liability for any loss which may be suffered by any person who relies either wholly or in part upon any description, photograph,
or statement contained herein. Technical specifications, appearances and other information are subject to change without notice. All trademarks are the property
of their respective owners. Midas, Klark Teknik, Lab Gruppen, Lake, Tannoy, Turbosound, TC Electronic, TC Helicon, Behringer, Bugera, Auratone and Coolaudio are
trademarks or registered trademarks of Music Tribe Global Brands Ltd. © Music Tribe Global Brands Ltd. 2019 All rights reserved.
LIMITED WARRANTY
For the applicable warranty terms and conditions and additional information regarding Music Tribe's Limited Warranty, please see complete details online at
musictribe.com/warranty.
Zhongshan Eurotec Electronics Limited
No. 10 Wanmei Road, South China Modern Chinese Medicine Park, Nanlang Town, 528451, Zhongshan City, Guangdong Province, China
Specifications
Controls
Frequency
Semitone / octave
Width of rectangular wave
Signal Connections
Frequency control inputs
Rectangular width
control inputs
Input Impedance
Maximum input level
Frequency control output
Rectangular width
control output
Output Impedance
Maximum output level
Drive capability
Power
Power supply
Current draw
Physical
Dimensions
Rack units
Weight
1 x rotary knob
±6 octaves / ±12 semitone,
switchable
Rocker switch,
±1 VDC or ±6 VDC
< 10% to > 90%,
0 VDC to +6 VDC
2 x 3.5 mm jack, summed,
1 V/oct.
2 x summed 3.5 mm jack,
1 V/16%
100 kΩ unbalanced
-10 VDC to +10 VDC
1 x 3.5 mm jack, 1 V/oct.
1 x 3.5 mm jack, 1 V/16%
10 Ω unbalanced
-10 VDC to +10 VDC
12 x 921B VCO modules
Eurorack
25 mA (+12 V),
25 mA (-12 V)
40 x 129 x 35 mm
(1.6 x 5.1 x 1.4")
8 HP
0.09 kg (0.20 lbs)
