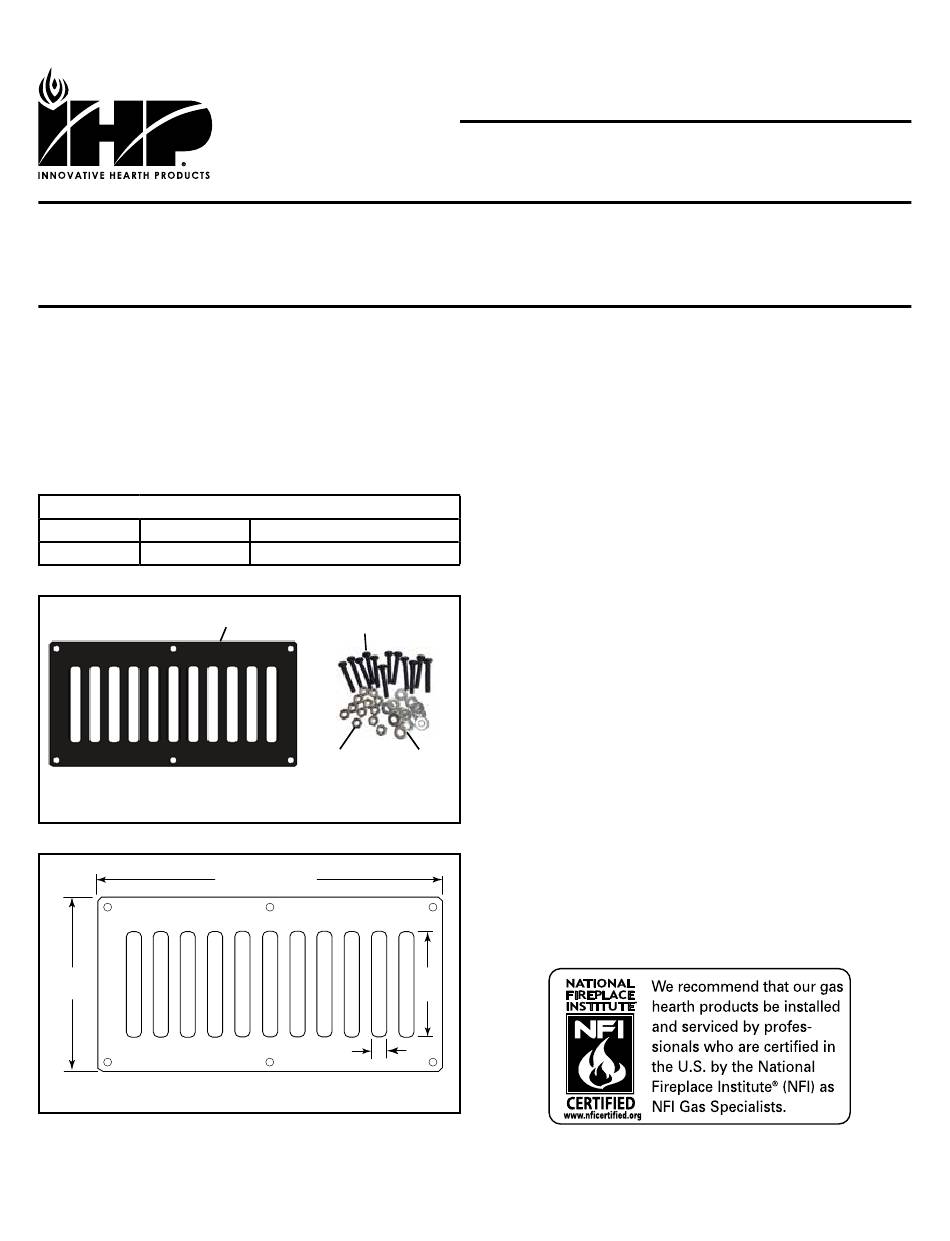

Installation Instructions FOR INSTALLING VENT-KIT-6X12 CROSS VENTILATION KIT
[FOR USE WITH BARCELONA HEIGHTS
KIT CONTENTS (refer to Figure 1)
Please ensure that all these parts are in the packaging.
2 ea. 6" x 12" Vent (1)
12 ea. 1-1/4" Phillips Black Pan Head Screw (2)
12 ea. 10x24 Stainless Steel Nut (3)
12 ea. #10 Stainless Steel Flat Washer (4)
1 ea. Instruction Sheet
6" x 12" Cross Ventilation Kit
f i r e - p a r t s . c o m
Cat. No.
Model
F3535
VENT-KIT-6x12
Figure 1 - Kit Contents
5-3/4"
(146mm)
Figure 2 - Actual Vent Dimensions
900861-04NC
AND VRE4600 SERIES OUTDOOR GAS FIREPLACES]
®
Description
6" x 12" Cross Ventilation Kit
1
2
3
11-3/8" (289mm)
1/2" (13mm) TYP.
P/N 900861-04
REV. NC, 10/2017
TOOLS / SUPPLIES NEEDED
Phillips Screwdriver
3/8" Open End Wrench or Nut Driver
GENERAL INFORMATION
Fireplaces are subjected to many outdoor elements such as rain, snow, wind,
heat or cold. A minimum of 18 square inches of cross ventilation (2 sides)
is required to keep the components dry and in good working order (use
Figure 4, Page 2 as a guide). Install the supplied vents approximately 3 to
4 inches from the floor centered on each end of the fireplace. See Figure 2
for the actual dimensions of each vent.
All of these parts may scratch and bend, great care should be used in
handling them.
If you encounter any problems, need clarification of these instructions or
are not qualified to properly install this kit, contact you local distributor
or dealer.
Read this instruction sheet in its entirety before beginning the installation.
4
ALL WARNINGS AND PRECAUTIONS IN THE INSTALLATION AND OPER-
ATION MANUAL PROVIDED WITH THE APPLIANCE APPLY TO THESE
INSTRUCTIONS.
TURN OFF THE APPLIANCE AND ALLOW IT TO COMPLETELY COOL BEFORE
PROCEEDING.
Check the contents of the kits upon receipt and check for any damaged
or missing parts. If there is hidden damage, notify your freight company
or IHP dealer immediately.
3-1/2"
(89mm)
TYP.
IHP.us.com
HEARTH PRODUCTS
KITS AND ACCESSORIES
CROSS VENTILATION KIT
VENT-KIT-6X12
