- Page 1 Instruction Manual （Please read the instructions carefully before use And keep them properly）...
- Page 2 Contents Technical parameters and safety information………………………………………06 Safety Attentions…………………………………………………………………………07 Battery and Joystick ……………………………………………………………………08 Daily maintenance ………………………………………………………………………13 Trouble shooting …………………………………………………………………………15 After-sale service ………………………………………………………………………16 1 / 17 1 / 17...
- Page 3 Dear user: First of all, thank you very much for purchasing and using our electric wheelchair! Read this manual carefully before using the car and use your electric wheelchair as required. This manual briefly introduces the knowledge and related content of the entire structure, technical characteristics, driving operation and technical maintenance of the electric wheelchair.

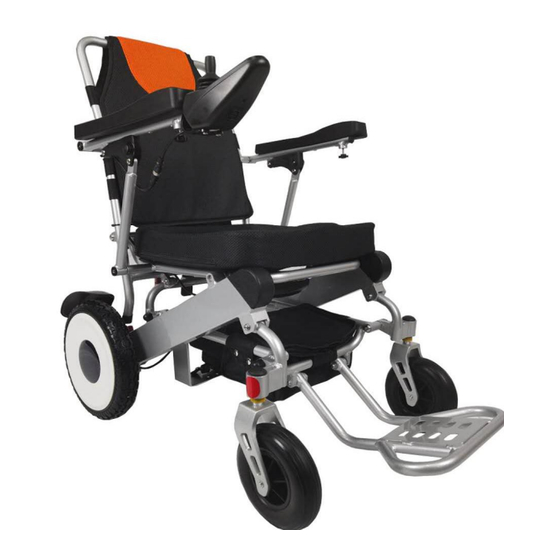

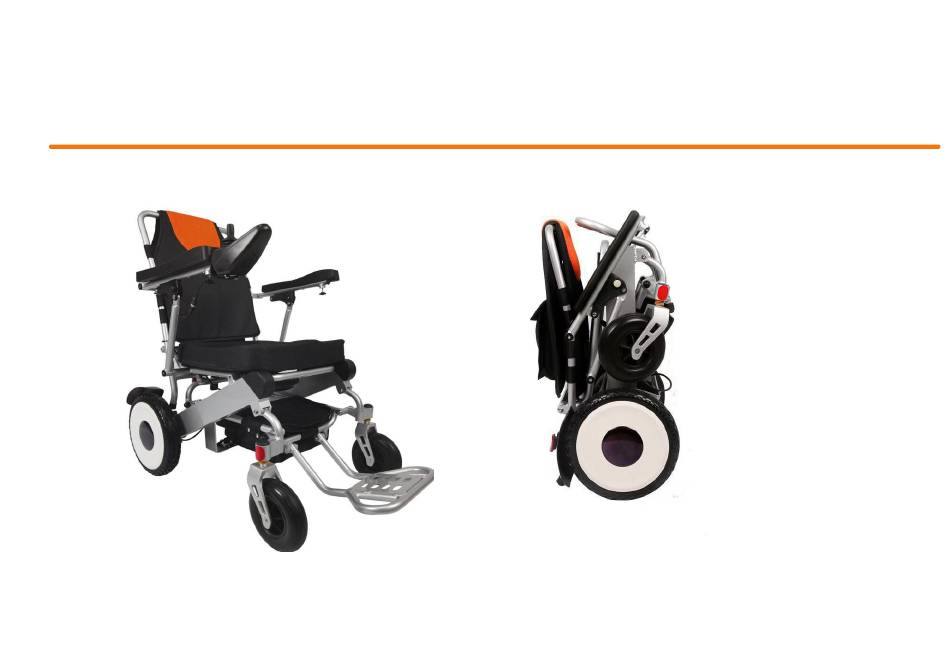

- Page 4 Version A Version B 3 / 17 3 / 17...
- Page 5 Version C (1) Joystick (9) Front fork (2) Armrest (10) Storage bag (3) Backrest (11) Storage bag (4) Seat cushion (12) Reflector (5) Front wheel (13) Fender (6) Shock absorber (14) Motor (7) Pedal (15) Controller box (8) Rear wheel (16) Battery 4 / 17 4 / 17...
- Page 6 Technical parameters Sheet Unfolded size : 920*610*950mm(L*W*H) Folding size : 720*61*400mm ( L*W*H ) Maximum load capacity 180kg motor DC brushless motor Motor power 250W*2 Motor input voltage DC 24V Brake system Intelligent electromagnetic Battery Lithium-ion battery standard 24V12AH, optional to 24V24AH ) Front wheel 8inch Rear wheel...
- Page 7 Before using this electric wheelchair, please read this manual carefully to understand the precautions and vehicle performance. Failure to follow these instructions may result in damage to the vehicle or serious injury. 1. Please do not try to modify the car or use it for other purposes. 2.
- Page 8 11. Please use a grounded socket. Using a non-grounded outlet may result in electric shock. 12. Be sure to slow down when turning. 13. When the car brakes on a slope or a slippery road, the brake distance will be too long. Please drive carefully.
- Page 9 ( A ) ( B ) Battery key Battery seat&lock ( C ) 8 / 17 8 / 17...
- Page 10 1. Speed adjustment plus or minus button - adjust the speed of the chair, please start at a slow speed and slowly increase until you feel the speed. 2. Battery indicator - This meter shows the battery level. When the six grids are fully lit, the battery is fully charged;...
- Page 11 7. Adjust the steering handle to a comfortable driving position. 8. Whether the seat armrest is lowered. 9. Do not use the wheelchair when charging the battery is being charged. Brake release lever The electric wheelchair is characterized by a electromagnetic brake lever that can be pushed by hand. LOCK state indicates that the internal clutch of the electromagnetic brake is engaged and the electromagnetic brake is started.
- Page 12 power if off. Purpose: allow to move the wheelchair manually. Caution: Before using the wheelchair, make sure the electromagnetic brake works normally and the brake lever is on LOCK station. If there are any problems with these items, please stop using ! Check the chair before driving. Neglecting the meaning may cause accidents or injuries to you.
- Page 13 5. When driving uphill, in order to maintain the stability of the car, please keep your body leaning forward. Warning： This wheelchair is on the slope. Please try not to use the “push mode” to avoid the vehicle slipping and causing injury.
- Page 14 Warning： Do not rinse the electric wheelchair with water. Because water may be involved in the electrical system causing permanent damage. Electrical components - after-sales service for parts such as rear axles, controllers, chargers, etc. are limited to local service companies or the company. Unauthorized disassembly or destruction of the seal will invalidate the three bags.
- Page 15 between positive and negative, the use temperature should not exceed 45 °C. (6) When charging, it usually does not exceed 20 hours. (7) Do not mix batteries of different ages, models or manufacturers, which will damage the battery life . (8) Only use the charger provided by the company to charge the battery.
- Page 16 detailed fault phenomenon and the flashing rate of the status light to the supplier. These data are the basis for judging the cause of the electric wheelchair failure. Fault possible reason Solution phenomenon Cannot start 1.The power switch is not turned 1.Check the ON-OFF of battery and joystick 2.The motor is in "UNLOCK"...
- Page 17 3. Charger plug broken 3.Contact customer service to replace charger 4. Charging plug loosened 5. Recheck and tighten Warranty principle (1) The company will provide thoughtful and caring service for faults within the scope of warranty. (2) The fault outside the warranty and the maintenance and repair after the warranty period are still the responsibility of the company, but the fees are charged according to the regulations.
