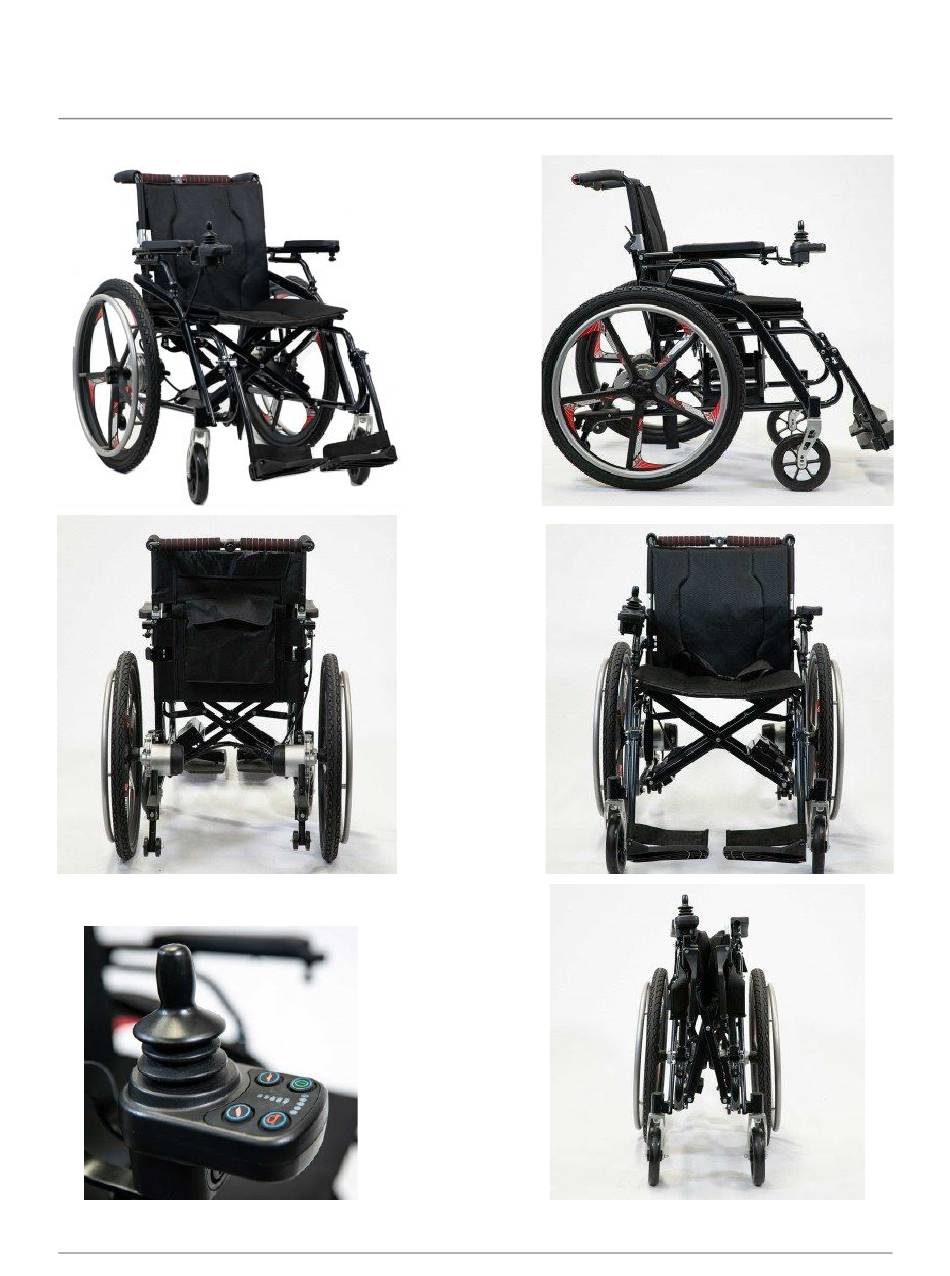

- Page 1 Model H Hybrid Manual and Power Chair in One Hover Model H Manual V.1.2...
-
Page 2: Table Of Contents
Table of contents Introduction Disclaimer Product Specifications Safety, Operation & Setup Introduction Safety Notice to Caretakers Weight Limit Tie Down System Maintenance Operation Controller Settings Power down when not in use Reaching or Lean Cornering Information Obstacles Curbs, Ramps, Slopes & Sidehills Environment &... - Page 3 Unboxing the Model H/X Installing the Controller Batteries & Charging Charging Charging Tips & Notes Operation and Installation Controller Controller & Driving Tips Batteries Anti Tippers Seat Design & Materials Fasteners Change & Adjustments Electromagnetic Interference (EMI) Limited Warranty JDY Imports 323-522-5817 Page 3...
-
Page 4: Introduction
JYD Imports, HOVER, 1800 Wheelchair or Model H, its affiliates, and partners, cannot be held responsible for personal injury or property damage that results from the unsafe or improper operation or maintenance of the Model H Hybrid Manual and Power Chair in One, and/or other JYD Imports, HOVER, 1800 Wheelchair products purchased. -
Page 5: Product Specifications
Product Specifications Product Weight (With Battery) 39 lbs. Product Weight (Without Battery) 35 lbs. Maximum Weight Capacity 260 lbs. Unfolded Size (L x W x H) 30” x 27.5” x 35” W/ Footrest on Length is 42.5’’ Folded Size w/ cushion removed (L x W x H) 35”... -
Page 6: Safety, Operation & Setup
Safety, Operation & Setup Introduction Please take the time and read through all the documentation below. It is important that the primary user and his/her caregiver understand all the safety instructions before operating this product. Safety ● The Model H should be adjusted to fit your needs. ●... -
Page 7: Tie Down System
Tie Down System The Model H is not approved to be used with any tie down system, generally used to transport a seated user and power chair in a motor vehicle. ● Never sit in the Model H while in a moving vehicle. In an accident or sudden stop you may be forced out of the Power Chair from the impact. -
Page 8: Reaching Or Lean
Reaching or Lean Be cautious when reaching or leaning out from the Model H. Reaching or leaning can affect your center of balance, and if done improperly can cause a fall or tip-over. When in doubt, ask for help or use a device to extend your reach. T o reduce the risk of injury and/or damage to the Model H: ●... -
Page 9: Curbs, Ramps, Slopes & Sidehills
Curbs, Ramps, Slopes & Side Hills The terrain has an effect on you and your power chair. Any sort of slope will change your center of balance. Always use your best judgement and if ever in doubt, have someone help you. ●... -
Page 10: Controller
The breaks can be found above and to the side of the rear tires (See image below) Not engaging the breaks may cause the Model H roll from under you. Model H Hybrid Manual and Power Chair in The hand breaks can be found on the side of the rear tires (at the 3 o’clock mark) -
Page 11: Armrests
The Model H armrests are designed to flip up. N ever lift the Model H by its armrests. Flip Back arms Feature Setting up your Model H Hybrid Manual and Power Chair in One Unboxing the Model H Given the size and weight of the box, we recommend two people work on unboxing this item. - Page 12 Step #1. Open the top of the box. Step #2. Carefully tip the box over on it’s side. Step #3. Carefully remove the protective packing material and remove all the contents of the box. JDY Imports 323-522-5817 Page 12...
- Page 13 With the box open, you should have the following items. #4. Main unit which includes the seat and motor assembly #5. Seat and back cushions #6. Batteries #7 Charger #8 Anti Tippers (recommended upgrade) *Note: Most Model H ship with the batteries installed.
- Page 14 #10. your chair should be fully open #11. Slip on the seat and back and secure it with the velcro underneath the cushions Slip in the battery underneath the seat Make sure to Firmly press down the battery all the way. JDY Imports 323-522-5817 Page 14...
- Page 15 Make Sure The wires under the seat are connected properly. 1. 2 wires attaches to the wheel motors, make sure the Arrows are aligned 2. The 3rd wire attaches to the battery The Levers located near motors towards the back of the chair work as follows. When the Levers are positioned towards the inside of the chair, the chair is ready to be powered.
- Page 16 The Controller The main unit controller comes ready for a right-handed user. With a little rearranging, the Model H can be setup for a left-handed user as well. #1. From the factory, Joystick is arranged for right-handed users. #2. Available option for left-handed setup. #3.
- Page 17 #5. Then slip it on to the left armrest Attach the Cord into the Clips running to the back of the chair JDY Imports 323-522-5817 Page 17...
-
Page 18: Batteries & Charging
Before folding the chair make sure to release the back handleBar You can also remove the handleBar with a simple screw driver. Batteries & Charging Charging The cord to charge the batteries comes in three parts. #1. Wire which connects the electric outlet into the power supply brick #2. -
Page 19: Charging Tips & Notes
Charging method Charging the battery directly: Make sure you remove the battery from the chair while charging. Attached the first two parts of the cord (#1 and #2), then insert into the battery. Charging Tips & Notes ● The Model H comes with one (1) 24V 6Ah / 10Ah lithium ion batteries. They are partially charged. -
Page 20: Operation And Installation
● If the chair is not being used on a monthly basis, we recommend still charging the battery once a month to prevent the battery from becoming stall. ● Overcurrent Protection: this will shut off the current thus shutting the motor down to ensure that the motor and battery do not experience any damage. -
Page 21: Controller
Gently slide the battery into the slots underneath the seat (Silver tag facing up) Slide it all the way in Take the strap and make sure its tightly secure Controller #1. Power Button - powers on/off chair #2. Speed Control Buttons - two buttons (plus & minus) allow the user to control max speed #3. -
Page 22: Controller & Driving Tips
#6. Joystick - controls speed and direction of the chair Controller & Driving Tips ● Take some time in a safe/controlled environment to learn operation ● Slow down to turn. Slower speeds will help you avoid any potential tilting/tipping of the Model H ●... -
Page 23: Batteries
○ Once onboard, make sure your feet are safely on the footrest ● Use your best judgement while driving ○ Alert yourself to the danger of motor vehicles on roads or in parking lots ○ At night, or when it is hard to see, use reflective tape on your Model H ●... - Page 24 The Model H comes with a V6 Battery Standard as well as an upgraded option V10 battery ( costs extra) Gently slide the battery into the slots underneath the seat It should slide in JDY Imports 323-522-5817 Page 24...
- Page 25 Until it’s fully in Take the strap and make sure its tightly secure Final outcome once the battery is fully placed properly in the allowed slot. JDY Imports 323-522-5817 Page 25...
-
Page 26: Anti Tippers
Anti Tippers Bothe the model H and the Model X have optional anti tippers. Anti tippers help the chair from falling backwards- we highly recommend that you buy anti tippers for the Model H/X Anti tipper on the Model H - are adjustable in height Seat Design &... -
Page 27: Change & Adjustments
Change & Adjustments Never use non-Model H/X parts or make changes to your Model H/X unless authorized in writing by a representative from our company. Doing so will void the Warranty and may create a safety hazard. Before each use of the Model H/X : ●...
