Hardware; Functional Diagram - Meilhaus Electronic MEphisto Scope Manual

3

Hardware

3.1

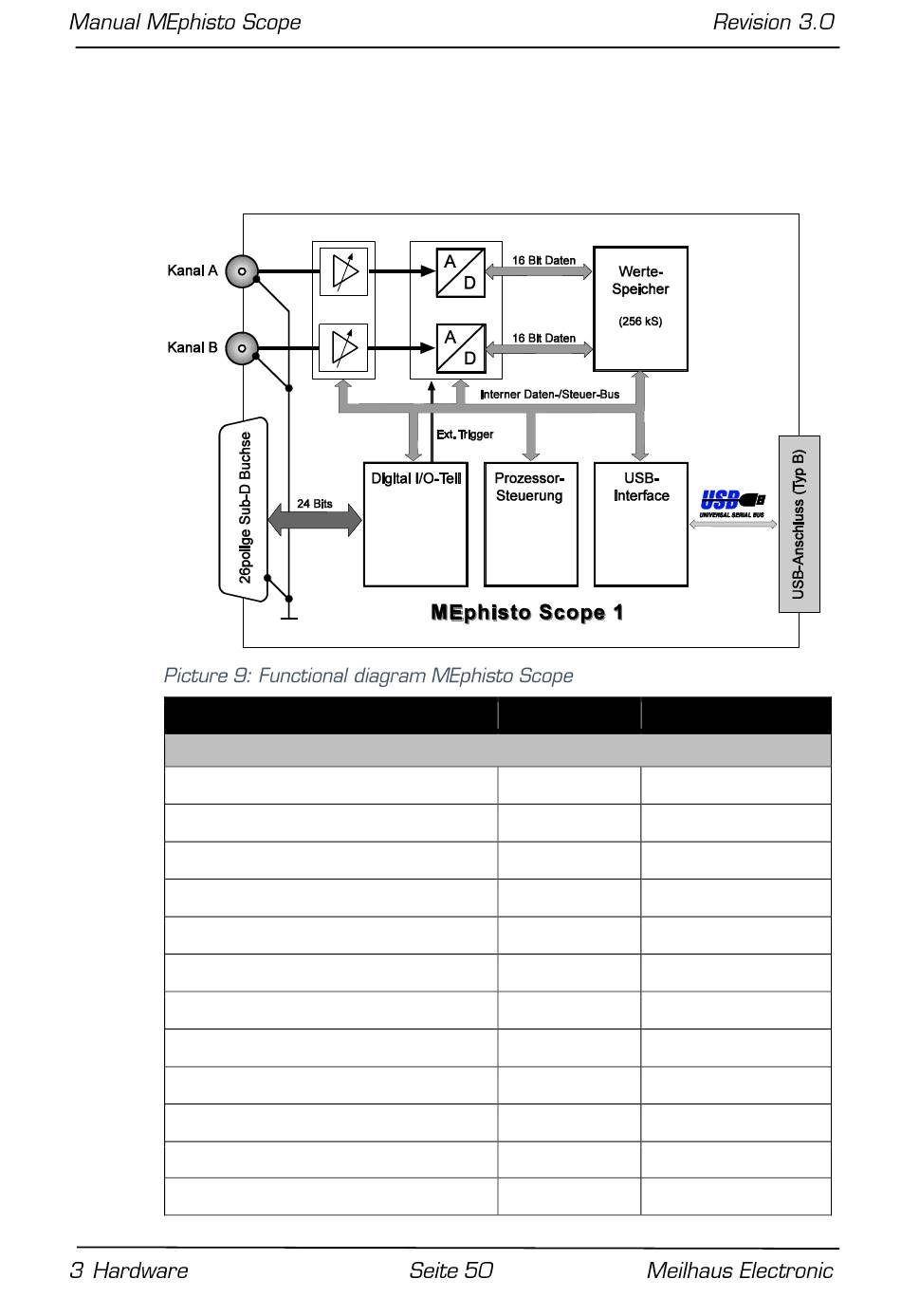

Functional diagram

Features
Measuring modes
Voltmeter, DC
Voltmeter, true RMS value
Analog Oscilloscope
Analog Oscilloscope, self-sufficient
Analog Data Logger
Analog Data-Logger, self-sufficient -
Logic Analyzer
Logic Analyzer, self-sufficient
Digital Data Logger
Digital Data-Logger, self-sufficient
Mass storage
Real timeclock
UM202 UM203
✔ ✔
✔ ✔
✔ ✔
- ✔
✔ ✔
✔
✔ ✔
- ✔
✔ ✔
- ✔
- SD-card up to 2 GB
- ✔
