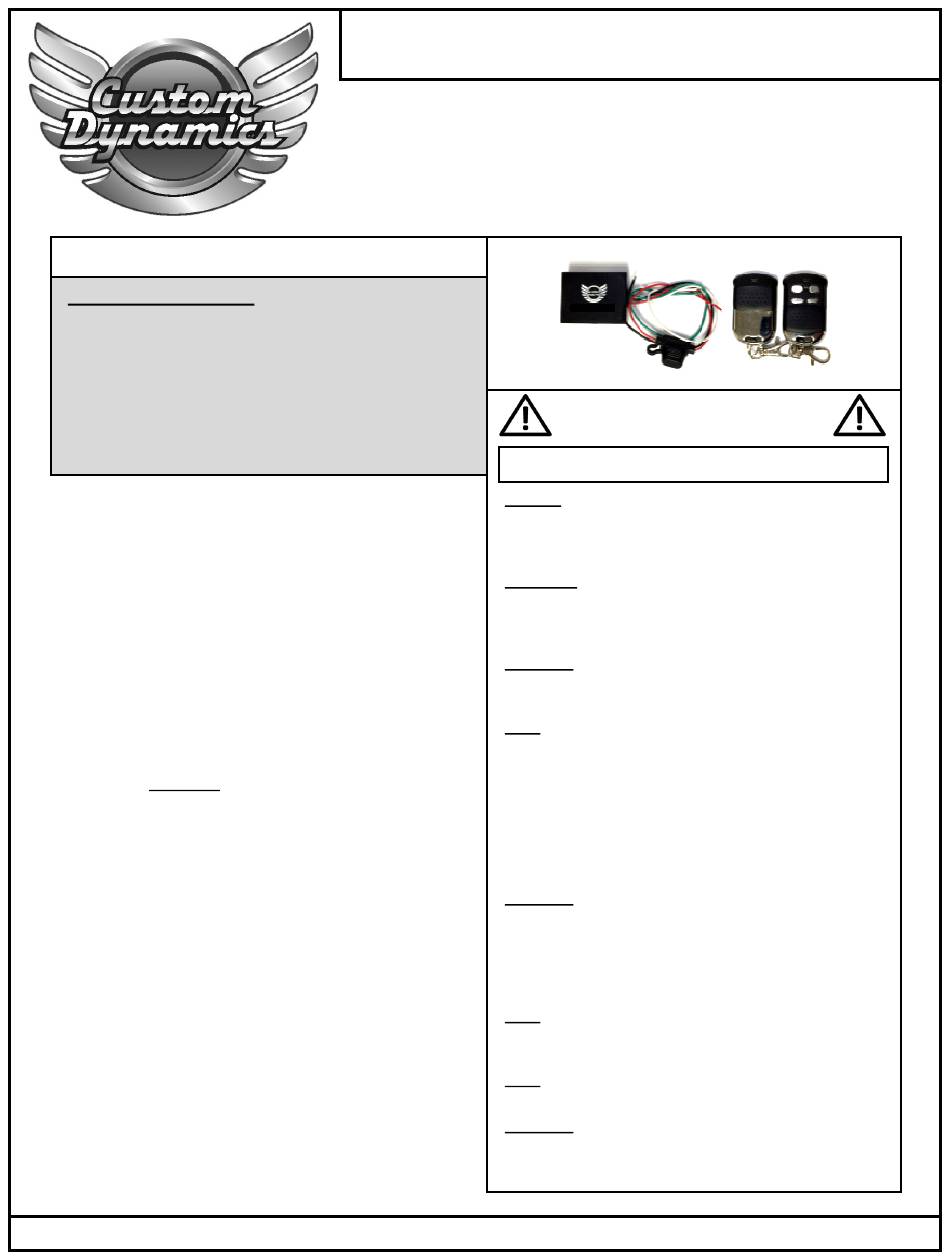

Custom Dynamics CCM-5BT Installation Instructions Manual

Part Number: CCM-5BT (w/ V2.0 App)
Package Contents:
- CCM Remote Module with inline fuse (1)
- Remote Key Fob (2)
Optional (Sold Separately):
CG01 Cage Clamps (4) for wire connection (included w/lighting kits)
Winter Kill Switch (1) to kill power to remote during storage (included
w/lighting kits)
Installation
The CCM (Color Command Module™) has 7 wires that
connect to the battery and to the LED wiring. The Diagram
on page 2 shows how to correctly wire the remote with
Custom Dynamics® Magical Wizard™ LEDs.
For joining large quantities of wires, we recommend using
cage clamp connectors, (included with all Magical Wizard™
lighting kits). The cage clamps offer easy connection of the
LEDs to the CCM Remote. Strip back enough insulation on
the wires and terminate as follows:
1. RED wire with Fuse - Connect to the [ + ] Positive termi-
nal of 12Volt battery or power source.
2. BLACK wire - Connect to suitable ground or [ - ] Negative
terminal of 12Volt battery or power source.
3. WHITE wire - Connect to Cage Clamp #1, the BLACK
wires from the LEDs.
4. RED wire - Connect to Cage Clamp #2, the RED wires
from the LEDs.
5. BLUE wire - Connect to Cage Clamp #3, the BLUE wires
from the LEDs.
6. GREEN wire - Connect to Cage Clamp #4, the GREEN
wires from the LEDs.
7. YELLOW wire - (Optional) Connect to the vehicle brake
wire to enable brake mode. Lights will change to Red
when brake is engaged, then return to normal program
function when released. (See more next page)
Questions? Call us at: 1 (800) 382-1388
Custom Dynamics® CCM-5 Bluetooth Remote
Installation Instructions
We thank you for purchasing the Custom Dynamics® CCM-5 Bluetooth Remote
Module Our products utilize the latest technology and high quality components
to ensure you the most reliable service. We offer one of the best warranty pro-
grams in the industry and we back our products with excellent customer sup-
port, if you have questions before or during installation of this product please
call Custom Dynamics® at 1(800) 382-1388.
Caution: Before beginning installation, disconnect the nega-
tive battery cable from the battery to prevent damage to the
LEDs or remote during installation. Damage to either as a
result of direct shorting is not covered under warranty.
Important: Module should only be used with Custom Dy-
namics® brand Magical Wizard™ LED accent lights. This
device and the LEDs used with it are not compatible with
other manufactures products.
Important: This unit is rated for a 7.5 amp load. Never use a
fuse greater than 7.5 amps in the in-line fuse holder, using a
larger fuse or bypassing the fuse will void warranty.
Note: Module App is Compatible with iPhone 4S and newer
equipped with Bluetooth 4.0 and with Android Phones Ver-
sions 4.3 and newer with Bluetooth 4.0. Apps available for
download from the following sources:
- Google Play: https://play.google.com/store/apps
- iTunes: https://itunes.apple.com/
Keyword Search: CCM-5BT or Custom Dynamics®
Important: Module should be secured after installation in an
area away from heat, water, and any moving parts. We rec-
ommend the use of tie wraps (sold separately) to secure
wires from becoming cut, frayed, or pinched. Custom
Dynamics® is not liable for damage as a result of improperly
securing or failing to secure the remote.
Note: The functions available from the provided key fob vary
from the functions available in the Bluetooth controller.
Please read instructions completely before operating.
Note: Secondary screen functions are only accessible in F1
program on the main screen.
Important: This remote has an optional brake override safe-
ty feature on the yellow wire. If not used, wire should be
capped to prevent shorting.
M-TH 8:30AM-5:30PM / FR 9:30AM-5:30PM EST
ATTENTION
Please read all Information below before Installation
09-2017
