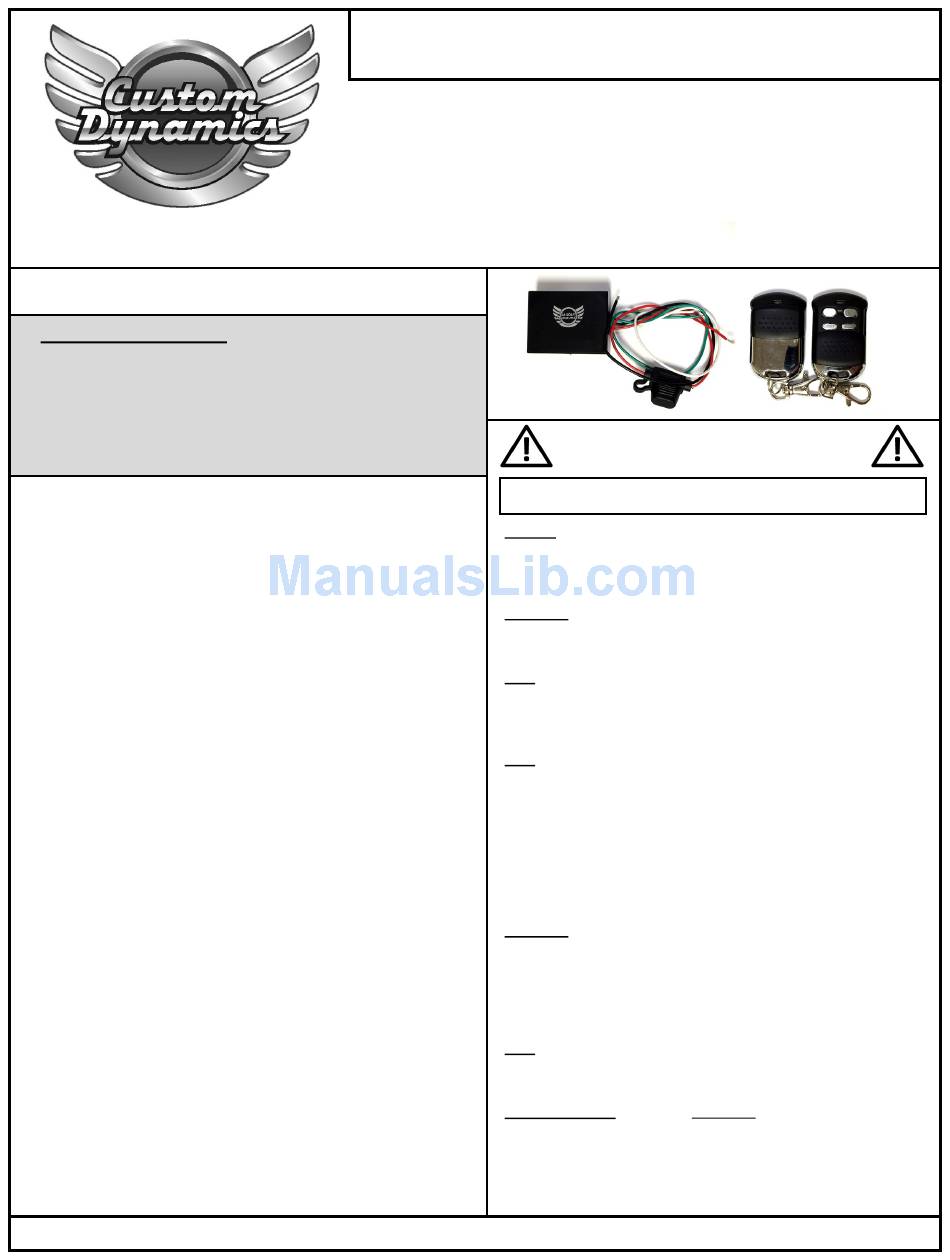

Custom Dynamics Magic Zone Installation Instructions Manual

Everything to Light Up Your Ride®
Part Number: MAGICZONE-BT

Package Contents:

- Bluetooth Remote Module with inline fuse (1)
- Remote Key Fob (2)
Optional (Sold Separately):
CG01 Cage Clamps (4) for wire connection (included w/ CD lighting kits)
Winter Kill Switch (1) to kill power to remote during storage
The Magic™ Zone Command Remote has 6 wires that connect to the
battery and to the LED wiring. Please see the Diagram on page 2 to
correctly wire the remote module with your choice of LED lighting.

Installation Tips

1. Follow the wiring instructions on page 2 for wiring the LED's to
the harness. Note: there are 2 red wires, the wire with the Fuse
goes to the battery.
2. Disconnect the Negative [ - ] battery cable from the battery
before beginning wiring to avoid electrical shorts.
3. Pick a location to run all of the wires from the LED's and make
your connections. The most common location is under the seat
so to have easy access to the battery. Install the Magic™
Zone Command Remote in this area, paying attention so that
the module will not get crushed or in direct contact with water
and the wires will not get pinched, cut or frayed when the seat
is reinstalled.
4. Decide which LED's will be on which zone, then group the
wires by zone 1, 2 and 3.
5. The output wire for any unused zone should be capped off to
prevent shorting.
6. For a clean, reliable install, use terminal blocks or Cage
Clamps® to group your wires.
7. Test function of the remote before riding.
8. If system will not turn on, check the inline fuse on the red wire,
then check the connections to the battery.
9. If system will not turn on, verify that the Red light on the key fob
is coming on. If it is not, or Red light is dim or is flickering, bat-
teries are weak. Replace with fresh batteries and try again.
Questions? Call us at: 1 (800) 382-1388
Magic™ Zone Bluetooth Command Remote

Installation Instructions

We thank you for purchasing the Custom Dynamics® Magic™ Zone
Command Remote. Our products utilize the latest technology and
high quality components to ensure you the most reliable service.
We offer one of the best warranty programs in the industry and we
back our products with excellent customer support, if you have
questions before or during installation of this product please call
Custom Dynamics® at 1(800) 382-1388.
Caution: Before beginning installation, disconnect the negative
battery cable from the battery to prevent damage to the LEDs or
remote during installation. Damage to either as a result of direct
shorting is not covered under warranty.
Important: This unit is rated for a 7.5 amp load. Never use a fuse
greater than 7.5 amps in the in-line fuse holder, using a larger fuse
or bypassing the fuse will void warranty.
Note: This guide assumes user has properly installed the LED light-
ing products that are to be used in conjunction with this Remote.
Custom Dynamics is not responsible for procedures and instruc-
tions for installing LED products from other manufacturers.
Note: Zone Command Module™ App is Compatible with iPhone 4S
and newer equipped with Bluetooth 4.0 and with Android phones
versions 4.3 and newer with Bluetooth 4.0. Zone Command Mod-
ule™ apps are available for download from the following sources:
- Google Play: https://play.google.com/store/apps
- iTunes: https://itunes.apple.com/
Keyword Search: Custom Dynamics or CCM-5BTS
Important: Module should be secured after installation in an area
away from heat, water and any moving parts. We recommend the
use of tie wraps (sold separately) to secure the module and wires to
prevent them from getting cut, frayed, or pinched. Custom Dynam-
ics is not liable for damage as a result of improperly securing or
failing to secure the remote or the wiring.
Note: The functions available from the provided key fobs vary from
the functions available in the Bluetooth controller. Please read in-
structions completely before operating.
Operational Note: During the Dim Slider function, dropping to 30%
or lower while in breathe/strobe or zone transition modes will de-
crease the voltage cycle significantly, which may cause subtle vari-
ances in the zone transition speed or strobe/breathe speed. This is
normal operation of the Remote.
