Memco Panachrome
2D/3D 43mm Profile
Installation Guide
Ref No. C540 850GB Version 1

1. Detector Installation

The Panachrome 43mm 3D/2D detectors can be fitted to centre-opening or side-opening doors. For the visual indicators
to be effective, the system should only be installed in dynamic mode, with at least one of the detectors fixed to a moving
door. TX detector must be fitted to left side of lift when viewed from landing.

Installation Notes - 2D/3D

1.
The landing doors must not lead the car doors by more
than the suggested permissible amount as shown in Fig 1.
2.
Screw the earth ring tag to the lift door using a No.8
screw and a shakeproof washer
3.
The earth must be fitted to ensure the unit is properly
grounded

Installation Notes - 3D

1.
When installing a Panachrome 3D system, the following
precautions must be observed for trouble-free
operation:
2.
Always mount the detectors as close to the door edge
as possible.
3.
Sight-Guards cannot be used with Panachrome 3D
detectors.

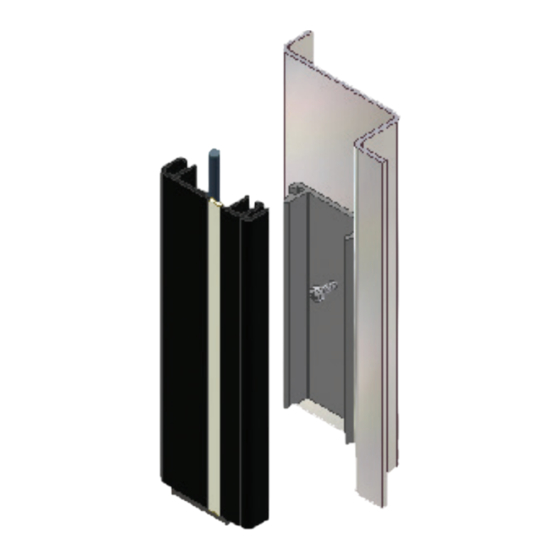

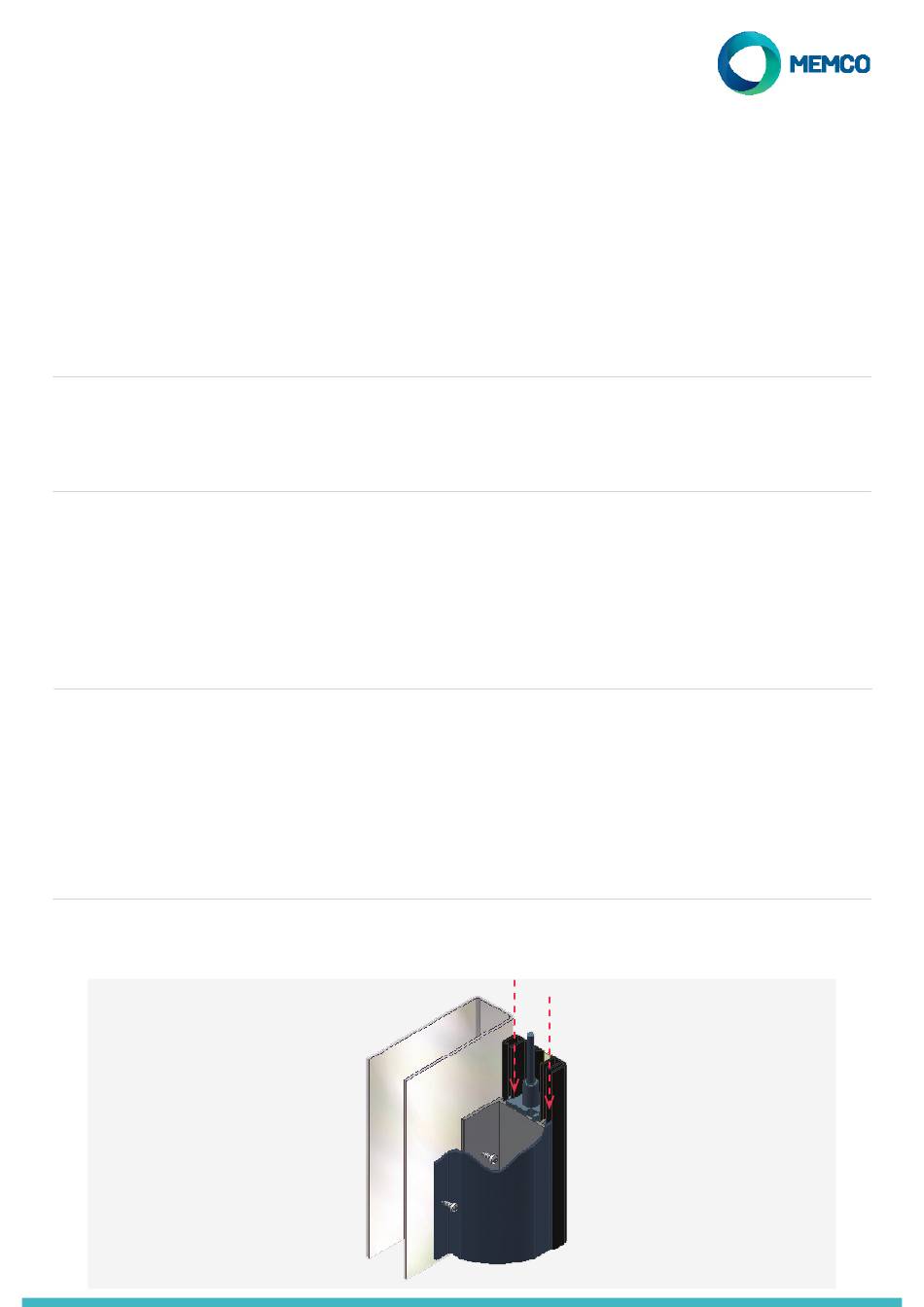

2. To Remove Panachrome from fixing L-Bracket

This is done by leveraging the main detector from the bracket attachment
4.
Check also that the door itself is grounded to the lift
5.
Use a P-clip either side of the pluggable connectors, to
reduce the risk of plug and socket separating
6.
Do not shorten Memco cables by cutting them.
7.
Detectors should be aligned as closely as possible for
reliable operation
4.
For opening exceeding 1200mm, it is recommended
that 'As Doors Close' mode is used.
5.
The detectors must be set no more than 10mm apart
when the doors are fully closed. The detectors must be
aligned to within +-8mm of the detector centreline.
6.
3D Switch Settings are detailed on the inside of the
Main Controller C3850 000.
