SCHWIND Sirius Short Manual

SCHWIND Sirius Short Manual

Scheimpflug analyzer, calibration

Advertisement

Short Manual "Calibration"
Original Instruction

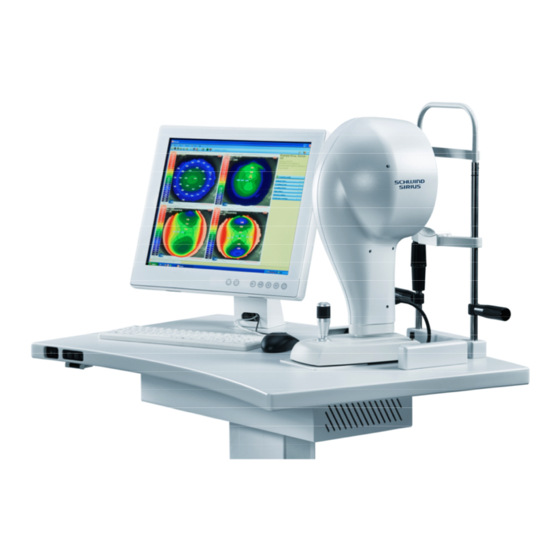

Scheimpflug Analyzer
Tel.: +49-(0)6027-508-0
Fax: +49-(0)6027-508-208
Email:
info@eye-tech.net
http://
www.eye-tech-solutions.com
SCHWIND eye-tech-solutions GmbH
Copyright © 2015-2019 SCHWIND eye-tech-solutions All rights reserved
Distributed by SCHWIND eye-tech-solutions GmbH
Service Hotline:
Tel.: +49-(0)6027-508-333
Fax: +49-(0)6027-508-245
Email:
service@eye-tech.net
Mainparkstrasse 6-10 63801 Kleinostheim Germany
Customer Support:
Tel.: +49-(0)6027-508-350
Fax: +49-(0)6027-508–208
Email:
apm@eye-tech.net

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sirius and is the answer not in the manual?

Questions and answers

Summary of Contents for SCHWIND Sirius

  • Page 1 Tel.: +49-(0)6027-508-0 Service Hotline: Customer Support: Fax: +49-(0)6027-508-208 Tel.: +49-(0)6027-508-333 Tel.: +49-(0)6027-508-350 Email: info@eye-tech.net Fax: +49-(0)6027-508-245 Fax: +49-(0)6027-508–208 http:// www.eye-tech-solutions.com Email: service@eye-tech.net Email: apm@eye-tech.net SCHWIND eye-tech-solutions GmbH Mainparkstrasse 6-10 63801 Kleinostheim Germany Copyright © 2015-2019 SCHWIND eye-tech-solutions All rights reserved...
  • Page 2 Device Identification Data ..................3 Symbols for Warnings, Precautionary Measures and Notes ........4 Notes on the Short Manual, Purpose and Scope ............4 Intended Use of the SCHWIND SIRIUS ..............4 CALIBRATION ..................5 When to Calibrate? ..................... 5 How to Calibrate? ....................
  • Page 3 C.S.O. Srl – Costruzione Strumenti Oftalmici Via degli Stagnacci 12/E – 50010 Badia a Settimo, Florenz www.csophthalmic.com SCHWIND WORKSTATION SCHWIND eye-tech-solutions GmbH Mainparkstrasse 6-10 63801 Kleinostheim, Germany System intergration and delivery: SCHWIND eye-tech-solutions GmbH or authorized distributor Version 3.7.0 / 2019-06-26 Page 3 of 8...
  • Page 4 Notes on the Short Manual, Purpose and Scope This Short Manual contains the procedure of the Calibration for the SCHWIND SIRIUS. The purpose of the user manual is to familiarize operator(s) of the SCHWIND SIRIUS with the topic mentioned above.
  • Page 5 Place the calibration bar on the chin rest in front of the SIRIUS instrument. Start the PHOENIX software and select the button “Calibrate SIRIUS” on the main page.  After pressing the calibration button a new window “Starting calibration” appears.
  • Page 6 Depending on the SIRIUS device a “linear calibration” and a “curvature calibration” or only a “curvature calibration” is required. In case the SIRIUS calibration does not require the linear calibration go on with “curvature calibration”.  Perform “Linear calibration” first: Focus on the “flat calibration disk”...
  • Page 7 Short Manual “Calibration” 3.7.01 Calibration  Perform “curvature calibration”: Move the SIRIUS in front of the calibration  sphere R.8 with radius 8.00 mm.  Align top view image: The cornea reflex must be tangential to the red line. (Image in the superior part of the window).
  • Page 8 Short Manual “Calibration” 3.7.01 Calibration  At the end measure the curvature sphere of the calibration tool once and compare the achieved average value of the K-readings Meridians @3mm with the value of the calibration sphere. The average (Avg) shall be 8.00mm±0.03mm (42.2D±0.16D).
