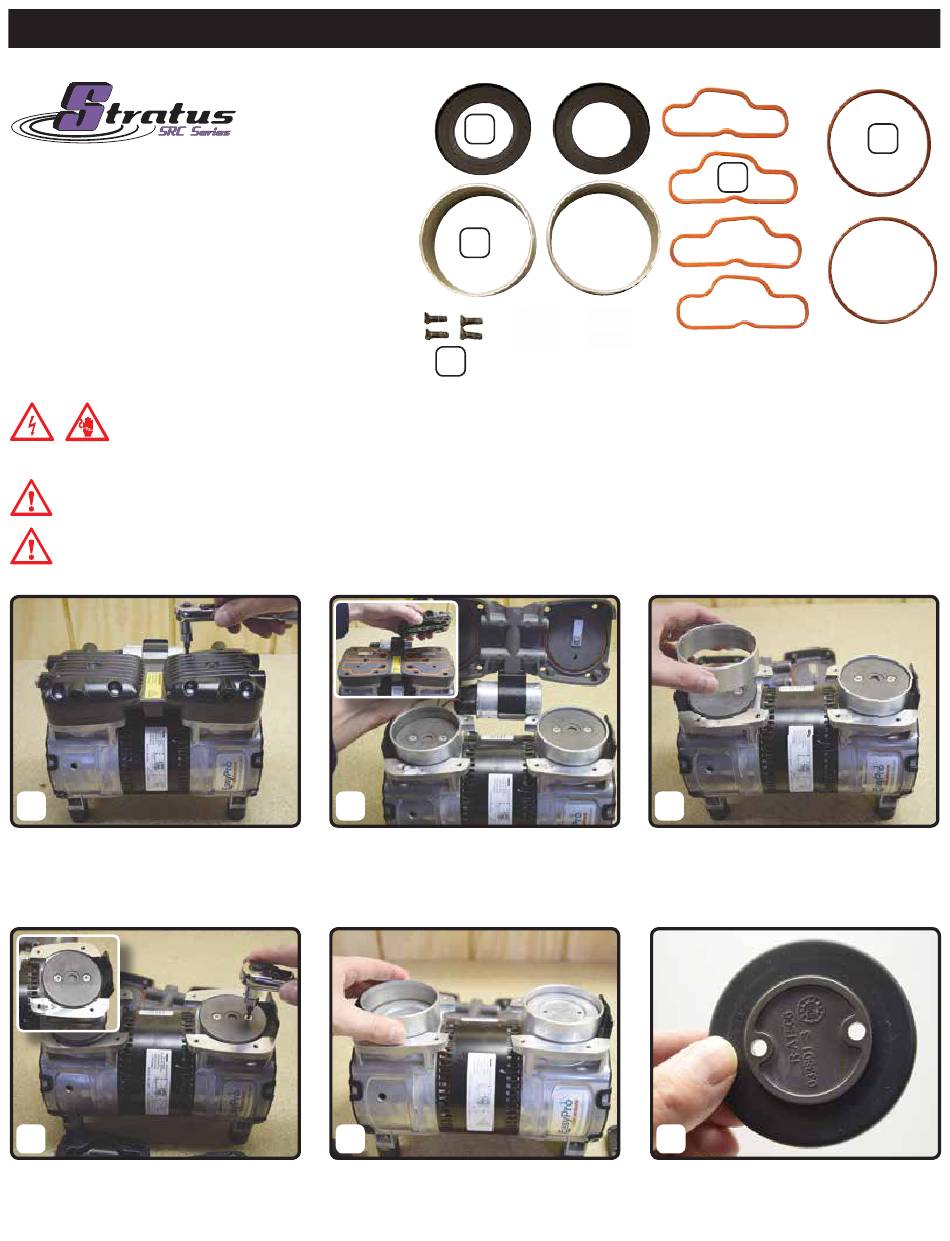

EasyPro Stratus SRC Series Instructions

Repair kit

Advertisement

Quick Links

1. Piston Cups
2. Cylinders
3. Cyliner O-rings
4. Head O-rings
5. Cup Retainer Screws
*Repair kit contents may vary depending on your
compressor. The SRC50K contents are shown,
SRC25K will have half the components shown
for single cylinder repair.
WARNING: Electrical shock hazard. Disconnect electrical
supply before performing maintenance. Vent all air lines
to release vacuum or pressure. Failure to follow these
instructions may result in death, fire or electrical shock.
WARNING: Injury hazard. Product surfaces become very hot during
operation, allow surfaces to cool before handling.
WARNING: Do not use oil to lubricate parts. SRC compressors use
an oil less design. Using oil may result in failure of the unit.
1.
Remove screws from the head of compres-
sor using T25 Torx driver, remove the head
4.

Remove screws from cup retainer plate

with T15 Torx driver. Discard old cups and
retainer screws.
Stratus SRC Series Repair Kit Instructions

Repair Kit

2.
Mark the orientation of head plate(s) and re-
move. Mark the orientation of valve plate(s),
remove valve plate(s). Clean valve plates
with water based solvent, take care not to
scratch valve seats.
5.

Set new cylinder(s) on piston(s).

1.
2.
5.
4.

Before beginning, you will need:

1. T15 and T25 Torx driver
2. Torque driver
3. Utillity knife
4. Clean work space
3.

Remove old cylinders and discard.

6.
Remove new piston cup(s) from protective
cardboard packaging. Set new piston cups
onto retainer plate, these parts will sit flat
against each other.
3.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Stratus SRC Series and is the answer not in the manual?

Questions and answers

john rickel sr
April 21, 2025

how do you know if leaf plate needs replaced. replaced all other parts and still no real pressure src25 easy pro

1 comments:
Mr. Anderson
May 11, 2025

You may need to replace the leaf valve plate on the EasyPro Stratus SRC25 if the screws holding the leaf valves are broken or if the leaf valves themselves need replacement, since individual leaf valve replacement is very difficult.

This answer is automatically generated

Tom Church
June 11, 2025

Plastic fan blades broken. Need replacement cooling fan assembly for SRC-50 rocking piston.

Summary of Contents for EasyPro Stratus SRC Series

  • Page 1 Stratus SRC Series Repair Kit Instructions Repair Kit 1. Piston Cups 2. Cylinders 3. Cyliner O-rings 4. Head O-rings 5. Cup Retainer Screws *Repair kit contents may vary depending on your compressor. The SRC50K contents are shown, SRC25K will have half the components shown for single cylinder repair.
  • Page 2 Stratus SRC Series Repair Kit Instructions Press retainer plate with piston cup into cyl- Inspect the leaf valves for damage or wear. Remove the cylinder o-ring(s) from the bot- inder all the way to the piston. The cylinder NOTE: There is one intentionally “bent”...
