Number Title
50 Configuration
90 Main system menu
To get to these menus, position the cursor on the menu name (using the
key.
Danger!
Parameter changes in menu 20, 30, 35, 50 can cause serious damage to the screw compressor
unit or chiller!

1.2.4 Status displays

[Chapter 1.3. in User Manual]
To get to the "status display" views, press the
This display shows all of the information shown in the first actual values screen plus the status of the compressor
unit.

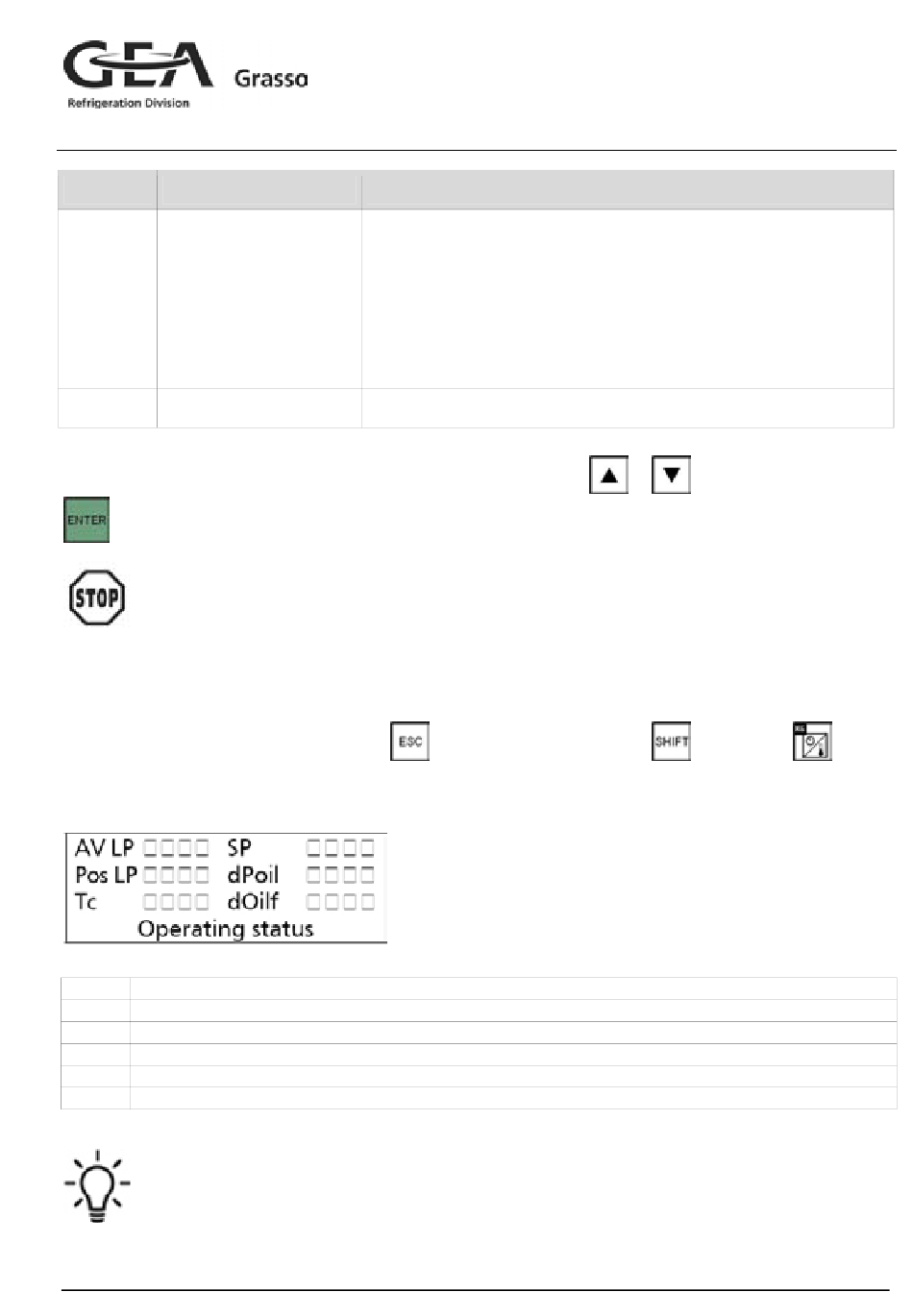

fig. 4: "Status messages" display
AV-LP: Actual value (pressure or temperature) always displayed in °C
SP: Set Point display in °C
Pos LP: Current slide position in %
dPoil: Differential oil pressure in bar
Tc: Condensation temperature in °C
dOilf: Differential oil filter pressure in bar
Hint!
See menu 05 actual values
FOR TWO STAGE CHILLER/ PACKAGES WITH SCREW
Help text
Enter:
— Refrigerants
— SC-Type
— Code
— - with/ without economiser
— - scaling of the sensors
key several times, or press the
_805011_om_gsc_sp2_gbr_1_.doc
OPERATING INSTRUCTIONS
GRASSO SYSTEM CONTROL
COMPRESSORS
or key) and confirm with the
key and then .
15
