- Page 1 99-TRLSIG Deluxe Upgrade Rev.20190813 Installation Guide Website Link AM Solar Inc. 3555 Marcola Rd. Springfield, OR 97477 541.726.1091 www.amsolar.com...

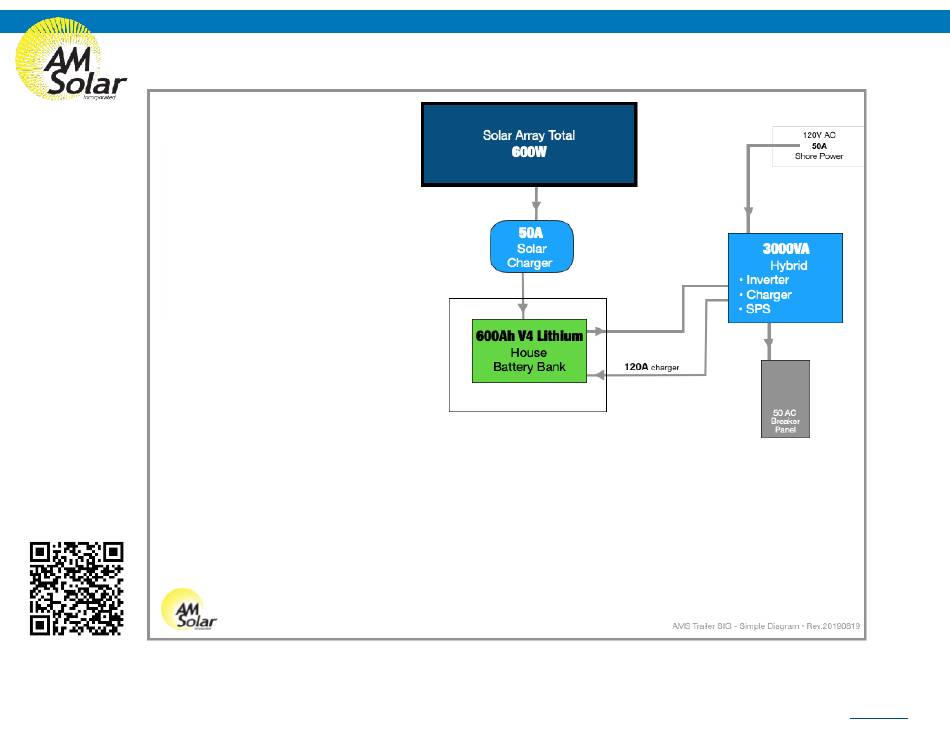

- Page 2 5. Installation: Battery Bank ------------------------- Detail of the Battery Bank subsystem connections and components 6. AM Solar Lithium Control Module ---------------- Detail of the AM Solar Lithium Control Module 6. Installation: Solar Charging ---------------------- Detail of the Solar Charging subsystem connections and components 7.
- Page 3 Congratulations on your purchase of a power system designed by AM Solar! We have assembled this kit to take the guess work out of putting together a complete solar solution. Now the fun begins - It's time for installation. Please read the guidelines below to help ensure a smooth project completion. ...
- Page 4 Here is a list of some of the tools that might be needed for your installation. If you feel this list is too ambiguous or potentially intimidating, now would be a great time to schedule your installation work with the professionals at AM Solar.
- Page 5 Back of Solar Panel(s) with Rocker Foot Mounts Fuse To 2nd Solar Panel Modified Zamp 100W Solar Panel Mounted Dimensions: 39.56” x 19.88” x 1.38" Transfer Main AC 93B-060A Switch Panel Breaker 93T-POS-4GA AM Solar Inc. 3555 Marcola Rd. Springfield, OR 97477 541.726.1091 www.amsolar.com...
-
Page 6: Bill Of Materials
99-TRLSIG Deluxe Upgrade Rev.20190813 Bill of Materials Solar Panels Inverter 3000 Charge Controller Lithium Batteries Lithium Base Kit Color Control AM Solar Inc. 3555 Marcola Rd. Springfield, OR 97477 541.726.1091 www.amsolar.com... -
Page 7: Battery Bank
BATTBMS-VT-BUS and Cap Wire CABLE-VT-M8-1 BATTBMS-VT-BUS FSTSCW-612 NOTE: The batteries are greyed out and shown for AM Solar Inc. Digital Multimeter Victron Inverter representational purposes. They are not included in the base kit. 3555 Marcola Rd. Springfield, OR 97477 541.726.1091 ... - Page 8 99-TRLSIG Deluxe Upgrade Lithium Control Board Rev.20190813 AM Solar Lithium Control Board AM Solar Inc. 3555 Marcola Rd. Springfield, OR 97477 541.726.1091 www.amsolar.com...
- Page 9 Zip tie the spare fuse nearby so you can CABLE-VT-RJ45-5 find it quickly. MONITOR-VTDM LUG-4/0-RING-3/8 LUG-4/0-RING-3/8 LUG-4/0-RING-3/8 LUG-4/0-RING-3/8 CABLE-4/0-1-BLK 93H-R3/4 93H-R3/4 93H-R3/4 93H-R3/4 AM Solar Inc. 95F-CLST-400A 3555 Marcola Rd. 93S-MINI Springfield, OR 97477 Inverter / Charger 541.726.1091 Master Disconnect www.amsolar.com...
- Page 10 99-TRLSIG Deluxe Upgrade SPS Wiring Rev.20190813 AM Solar’s SPS Full Passthrough All the time! Fuse Smart RV’s MAIN ransfer BREAKER SHORE witch PANAL (Do Not (Not actually Connect Gen) Shore Here!) common Neutral bar Generator Stock ATS Connect loose black...
- Page 11 Mounted Dimensions: 39.56” x 19.88” x 1.38" HS-RED-HD-1/2 HS-RED-HD-1/2 LUG-4GA-RING-3/8 LUG-4GA-RING-3/8 SOLAR-ZS90S SEAL-SKF SEAL-SKF MOUNTA-35 FSTSET-ZAMP MOUNTA-35 MOUNTL-3 MOUNTL-3 FSTBLT-TKNOB FSTBLT-TKNOB FSWASH-FLT-5/16 FSWASH-FLT-5/16 FSWASH-SPL-1/4 FSWASH-SPL-1/4 93B-060A Breaker 93T-POS-4GA AM Solar Inc. 3555 Marcola Rd. Springfield, OR 97477 541.726.1091 www.amsolar.com...
- Page 12 2. Select BatteryProtect from VictronConnect If your battery protect shuts down your loads, it’s important you recharge your batteries up to a full charge as soon as possible. AM Solar Inc. 3555 Marcola Rd. Springfield, OR 97477 541.726.1091 ...
- Page 13 NOTE: To change the PIN code from the app, go back to the device list page in the app. from the device. Click on the three circles to the right of your device, and select “Reset PIN code”. AM Solar Inc. 3555 Marcola Rd. Springfield, OR 97477 ...
- Page 14 Programming: The MPPT Charge Controller for Lithium Batteries Rev.20190813 Programming / Commissioning Your System - The Charge Controller Charge Control Settings for Lithium Batteries: 1. Download the “VictronConnect” App to your phone. 2. Open the App. 3. You’ll see a selection for your SmartSolar MPPT Charger, select it. 4.
- Page 15 Programming: Linking All Victron Devices on Smart Network Rev.20190813 Creating The Network When in the Victron Connect App, click on one of your devices. Go to “Settings” (shown as a gear symbol in the top right, picture 1). Go to “VE.Smart networking” (picture 2). Go to “Create Network”...
- Page 16 • Pressing the center button will always select what is highlighted. • Pressing the left arrow will take you back to the previous screen. • Pressing the top right button will pull up the Settings page. AM Solar Inc. 3555 Marcola Rd. Springfield, OR 97477 ...
-
Page 17: Changing Settings
The following are only visible after the firmware upgrade, leave these as the default: DVCC: Off SVS: Off Limit Charge Current: On Max Charge Current: 300A (Ensure this number is adequate and safe) AM Solar Inc. 3555 Marcola Rd. Springfield, OR 97477 541.726.1091 www.amsolar.com...
