Page 1: Installation Guide

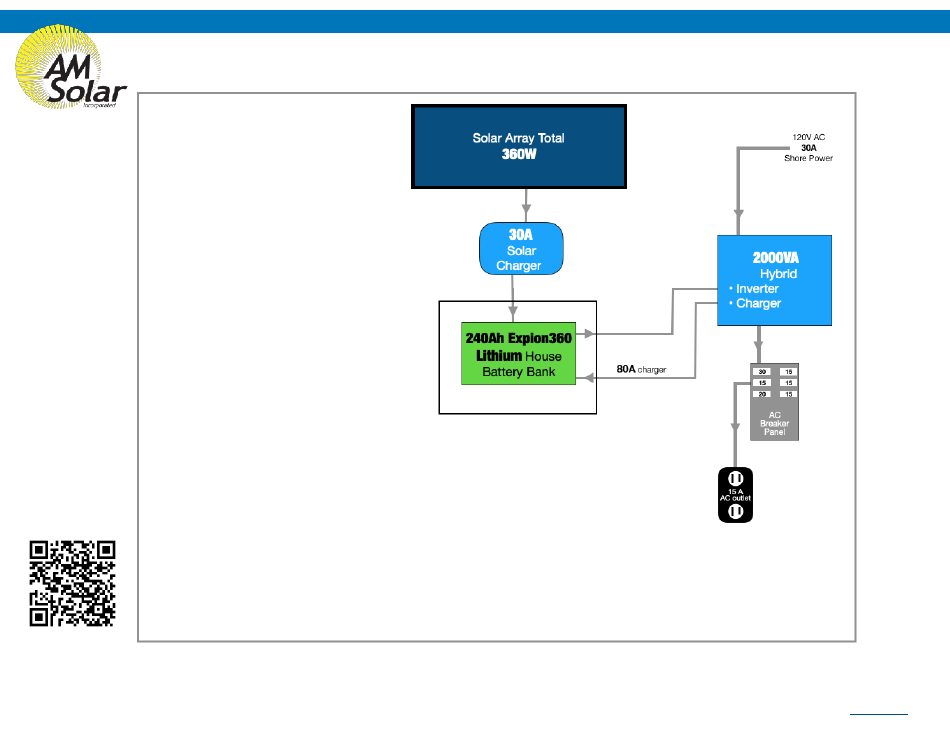

99-TRLSLV Adventurer Trailer Kit Rev.20181204 Installation Guide Online Guide AM Solar Inc. 3555 Marcola Rd. Springfield, OR 97477 541.726.1091 www.amsolar.com... - Page 2 99-TRLSLV Adventurer Trailer Kit Rev.20181204 Table of Contents 1. Tips and Tricks ------------------------------------ Helpful tips and suggestions to ensure a successful installation and give you an accurate understand of what you are getting yourself into 2. Tools ----------------------------------------------- ...
- Page 3 Congratulations on your purchase of a power system designed by AM Solar! We have assembled this kit to take the guess work out of putting together a complete solar solution. Now the fun begins - It's time for installation. Please read the guidelines below to help ensure a smooth project completion. ...
- Page 4 Here is a list of some of the tools that might be needed for your installation. If you feel this list is too ambiguous or potentially intimidating, now would be a great time to schedule your installation work with the professionals at AM Solar.
-
Page 5: Bill Of Materials
99-TRLSLV Adventurer Trailer Kit Rev.20181204 Bill of Materials Solar Panels Inverter / Charger Lithium Battery Charge Controller AMS Control Board Battery Monitor AM Solar Inc. 3555 Marcola Rd. Springfield, OR 97477 541.726.1091 www.amsolar.com... - Page 6 99-TRLSLV Adventurer Trailer Kit Rev.20181204 Complete Wiring Schematic Back of Solar Panel(s) with Rocker Foot Mounts Fuse Roof Combiner Box Back of Solar Panel(s) with Rocker Foot Mounts Solar wire penetrates roof here Fuse AC Input 200Ah 200Ah Expion360 Lithium...
-
Page 7: Battery Bank
99-TRLSLV Adventurer Trailer Kit Rev.20181204 Battery Bank The battery bank is the heart of the system. Its components usually take up the most space and all other subsystems connect to it. That’s why we recommend installing it first. This battery bank consists of a 200Ah Lithium Battery. The Bluetooth battery monitor reads all charging and discharging current through a shunt ... - Page 8 99-TRLSLV Adventurer Trailer Kit Rev.20181204 FSWASH-SPL-1/4 FSWASH-SPL-1/4 FSWASH-FLT-5/16 FSWASH-FLT-5/16 FSTBLT-TKNOB FSTBLT-TKNOB MOUNTL-T3 MOUNTL-T3 MOUNTA-35 MOUNTA-35 CAUTION: SEAL-SKF SEAL-SKF There should be no continuity between the negative cable Back of Solar Panel(s) with Rocker Foot Mounts from the roof and the negative cable from the charge controller.
-
Page 9: Important Notice
99-TRLSLV Adventurer Trailer Kit Rev.20181204 AC Input & Output CAUTION: The AC Input/Output system is capable of plugging into a standard 30A shore power outlet. (Note: Adapters from 30A to 15A outlets can be purchased at hardware or RV supply stores). The shore... - Page 10 - Equalization voltage: 14.20 V - Auto Equalization: DISABLE (OFF) - Temperature compensation: OFF Download Device List within MPPT Charge Controller VictronConnect VictronConnect Screen AM Solar Inc. In App Store 3555 Marcola Rd. Springfield, OR 97477 541.726.1091 www.amsolar.com...
- Page 11 firmware and install the custom settings that depend on the type of battery bank you are using. The firmware is developed by Victron. The custom settings are developed by AM Solar to work with the systems that we designed. AM Solar performs all the initial firmware updates, as well as programs your inverter upon installation.
- Page 12 Congratulations, your inverter is now fully programmed. You can close out of the VE Configure program. Step 6: Put the inverter back together. AM Solar Inc. Turn the inverter OFF with the black button by pushing it down to the center position. 3555 Marcola Rd. ...
- Page 13 If the cable is connected to the inverter and powered on without internet connectivity. a) The update file will be corrupted, and must be re-installed from step one. Be sure to be connected to the internet AM Solar Inc. before plugging in the MK3 into the inverter and power cycling.
- Page 14 NOTE: To change the PIN code from the app, go back to the device list page in the app. Click on the three circles to the right of your device, and select “Reset PIN code”. AM Solar Inc. 3555 Marcola Rd. ...
- Page 15 Programming: Linking All Victron Devices on Smart Network Rev.20181204 Creating The Network When in the Victron Connect App, click on one of your devices. Go to “Settings” (shown as a gear symbol in the top right, picture 1). Go to “VE.Smart networking” (picture 2). Go to “Create Network”...
