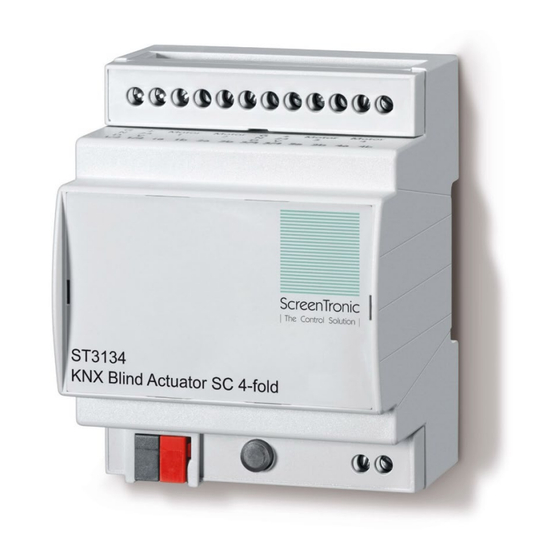

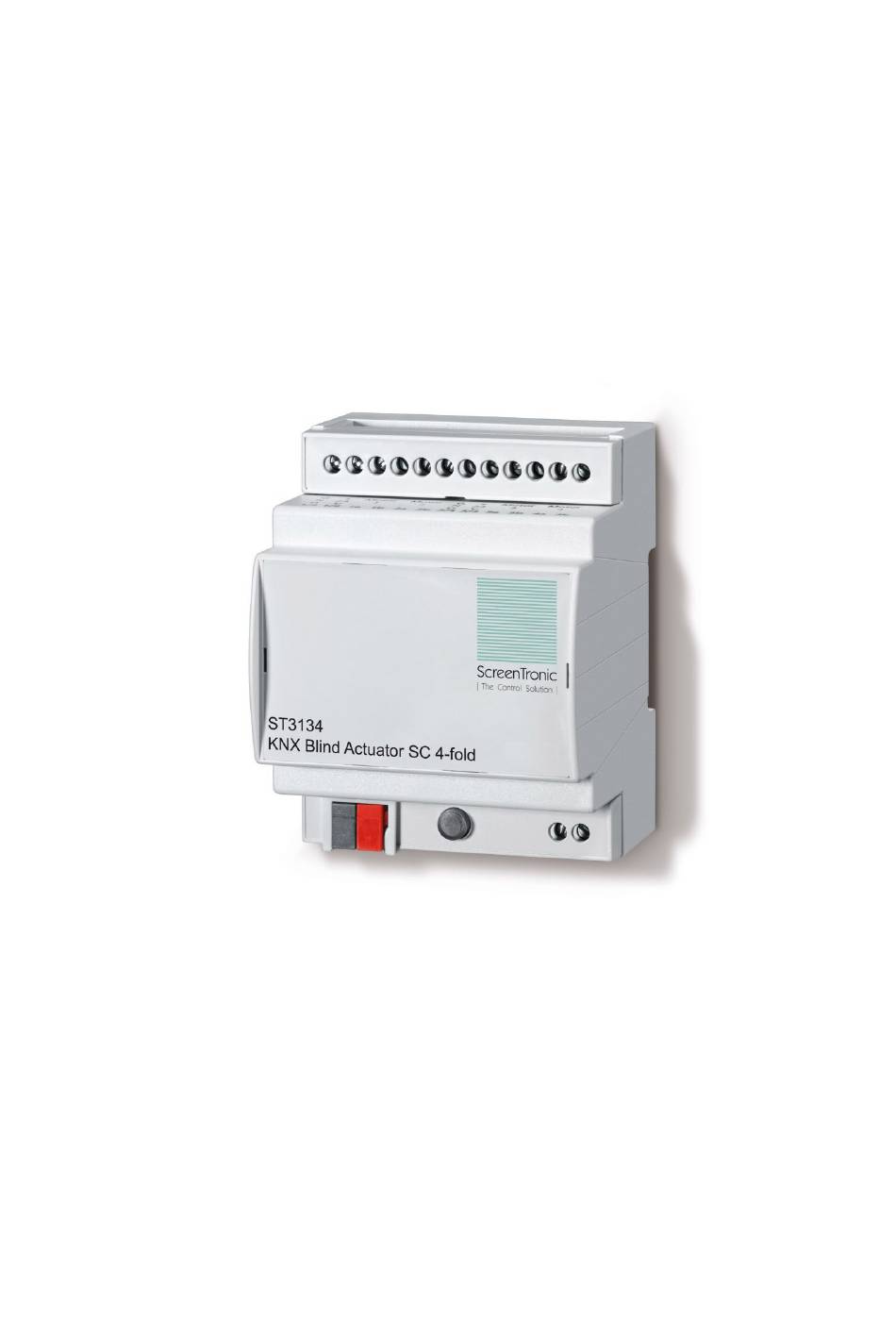

- Page 1 ST3134 KNX Blind Actuator SC 4-fold Operation and Installation Manual Date: 2.1.2019...
-
Page 2: Table Of Contents
Contents .................................. 2 Introduction ................................3 Wiring Diagram ................................ 4 Group Objects ................................5 Parameters ................................7 General ................................7 Positions ................................12 Automatic* ................................ 13 Blind 1 to 4 ................................. 14 Technical Support ..............................16 ST3134 Operation and Installation Manual... -
Page 3: Introduction
Introduction The ST3134 KNX Blind Actuator SC 4-fold is a special control for blinds with SC 3-wire connection (SL MB blinds). Due to the fully digital and bidirectional communication between ST3134 and the motor control unit (inside the blind) the ST3134 realize precise position control and feedback and therefore allows perfect sun tracking and integration into building management systems. -
Page 4: Wiring Diagram
Wiring Diagram SL2712 ST3134 Operation and Installation Manual... -
Page 5: Group Objects
Group Objects ST3134 Operation and Installation Manual... - Page 6 Blind 1 Status Height 1 Byte 0-255 (0-100%) Blind 1 Status Slat angle 1 Byte 0-255 (0-100%) Blind 1 Status Blind 1 Bit on/off Communication error and same for blind channel 2, 3 and 4. ST3134 Operation and Installation Manual...
-
Page 7: Parameters
Power supply of the blinds Please use in any case Automatic (with automatic blind addressing) except the blind manufacturer indicates something different. Automatic: The power output (+24V DC) for each channel is controlled from the ST3134 on internal requirement. ST3134 Operation and Installation Manual... - Page 8 Together: The power output for all channels is controlled from the ST3134 on requirement, but all 4 outputs are powered in any case in same way. Permanent: The power output (+24V DC) for all channels is ON at any time.
- Page 9 Group objects 25, 26 and 27 (and corresponding objects for channel 2 to 4) Status Blind, Status Blind Communication Error, Status Blind Error. Time for cyclic transmission (min)* Transmission interval for changes (s) * Movement after full tilting* Group object 12 Slat Tilting: Dimming control from switch. ST3134 Operation and Installation Manual...
- Page 10 Typical Application: Closing windows frame. Follow-up on deactivation of security* After receiving “0” on group object 1 the blind start moving to the latest expected position (if last command was moving, slat angle or height). ST3134 Operation and Installation Manual...
- Page 11 Typical application: Fire alarm moves all blinds in upper position Monitoring time security object (min)* After receiving not a “0” within this time the Security function is activated. 0=Monitoring of the security object is deactivated. ST3134 Operation and Installation Manual...
-
Page 12: Positions
Allows to define 6 different positions (height and angle) to be called for each channel with group object 15 Position call (or corresponding group object for channel 2 to 4). Position set allowed* Receiving byte value 0 to 5 calls the defined positions 1 to 6. ST3134 Operation and Installation Manual... -
Page 13: Automatic
Automatic (example for blind 1) Automatic object function After receiving “1” on group object 20, automatic function is activated and object groups 17, 18 and 19 are deactivated. Status Feedback Object group 20 is set by actuator status feedback. Automatic switching Object group 20 is set by external group address. -
Page 14: Blind 1 To 4
Modification can be done with separate CTS software! Number of tilt steps* Do not change this value which is defined by the internal blind parameters from blind manufacturer! Modification can be done with separate CTS software! ST3134 Operation and Installation Manual... - Page 15 ST414x Blind Control Center or by group objects 13 and 14 (and corresponding group objects for channels 2 to 4) with byte values for height and angle from any BMS Build Automation System with KNX communication. ST3134 Operation and Installation Manual...
-
Page 16: Technical Support
+49 89 74 55 66 77 © 2019 CONTROLtronic GmbH ScreenTronic is a registered trademark of CONTROLtronic GmbH. ® Information presented enclosed is subject to change as product enhancements are made regularly. ST3134 Operation and Installation Manual...
