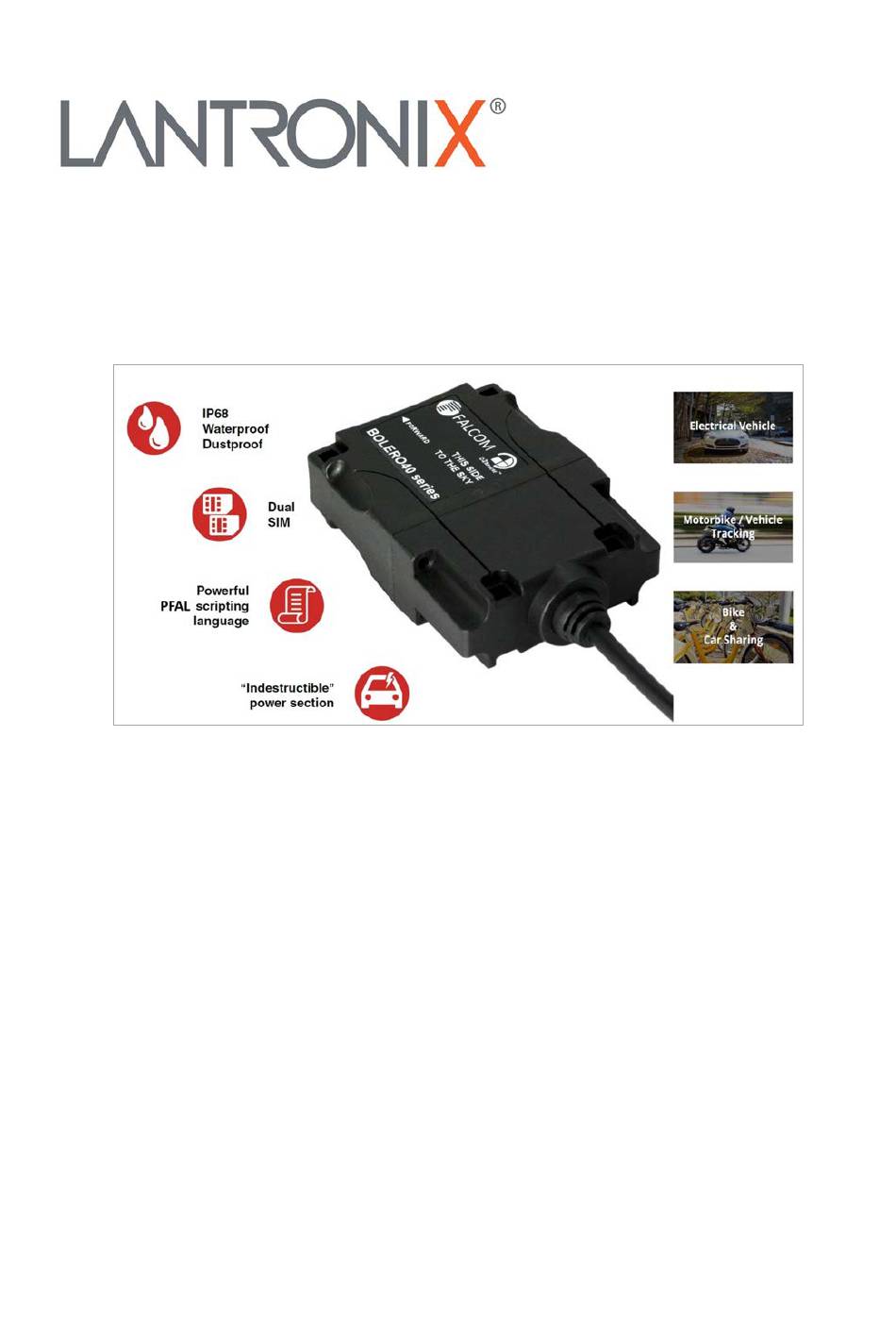

- Page 1 BOLERO40 Series Hardware Manual Part Number PMD-00012 Revision B January 2020 Version: 1.0.3; Modified: Thursday, January 23, 2020...
- Page 2 Technical Support Online: https://www.lantronix.com/support Sales Offices For a current list of our domestic and international sales offices, go to the Lantronix web site at https://www.lantronix.com/about-us/contact Disclaimer All information contained herein is provided “AS IS.” Lantronix undertakes no obligation to update the information in this publication.
- Page 3 Foundation (FSF), or the Python Software Foundation (PSF) License Agreement for Python 2.7.3 (Python License). Lantronix grants you no right to receive source code to the Open Source software; however, in some cases, rights and access to source code for certain Open Source software may be available directly from Lantronix’...
-
Page 4: Table Of Contents
2.12 Non-ionizing radiation ................... 13 Safety standards ..................14 Technical data ................... 15 Product specifications .................... 15 4.1.1 Power consumption for BOLERO40 Series ..............16 4.1.2 Operating temperatures ....................17 GSM/2G/3G engine specifications ................. 18 4.2.1 GNSS engine specifications ................... 19 BOLERO Series application interface ............ - Page 5 Housing ....................33 RF Exposures ..................... 34 RF Exposures ......................34 Appendix ....................35 Installation guidance ....................35 What should be considered when using BOLERO40 Series ........36 NMEA data message ....................36 GPRS Coding scheme ..................... 37 BOLERO40 Series Hardware Manual...
-
Page 6: Introduction
The BOLERO40 series is a rugged micro-tracker, which is especially designed to match the environmental, mechanical and electrical requirements of the vehicle tracking market. BOLERO40 series is a multi-GNSS tracking device available in 2G, LTE-M1 and 3G models. It is designed to operate with internal GSM/GNSS antennas allowing fast and easy installation. -
Page 7: Circuit Concept & System Architecture
• Encrypted TCP based on AES 128 bit algorithm - (PREMIUM feature) and more. 1.2 Circuit concept & System architecture The architecture of the BOLERO40 Series consists of the following major components: Figure 1: BOLERO40 Series block diagram The principle of system operation is very simple. In each car is installed one of BOLERO40 series device, which consists of: •... -
Page 8: Packaging
Introduction Figure 1.1: BOLERO40 series application architecture 1.3 Packaging The BOLERO40 Series is shipped in a cardboard box with following content: Packing in cardboard box: • Overall size: 170mm x 120mm x 56mm • Weight: 210 gr / cardboard box •... -
Page 9: Related Documents
AppNote_1-Wire_Guide.pdf Contains information how to use the 1-Wire interface on the BOLERO40 series devices. These PDF files are viewable and printable from Adobe Reader. If you do not have the Adobe Reader installed, you can download it from http://www.adobe.com. -
Page 10: Security
Check the laws and regulations on the use of cellular devices in the area where you drive. Always obey them. Also, when using your BOLERO40 while driving, please pay full attention to driving, pull off the road and park before making or answering a call if driving conditions BOLERO40 Series Hardware Manual... -
Page 11: Electronic Devices
2.8 Children Do not allow children to play with your BOLERO40 series devices. It is not a toy. Children could hurt themselves or others (by poking themselves or others in the eye with the antenna, for example). -
Page 12: Safety For Li-Ion Batteries
2.11.1 Safety precautions while charging the battery Be sure to follow the rules listed below while charging the battery. Failure to do so may cause the battery to become hot, rupture, or ignite and cause serious injury. BOLERO40 Series Hardware Manual... -
Page 13: Safety Precautions While Discharging Li-Ion Battery
Dispose of the used battery as required by local ordinances or regulations. 2.12 Non-ionizing radiation The BOLERO40 Series comes with internal GSM/2G/3G/GNSS antennas. Therefore, care should be taken to install the devices/antennas in such a position that no part of the human body will normally rest within 20 cm of any part of the antennas/casing for more than a few minutes whilst the equipment is in use. -
Page 14: Safety Standards
Safety Standards 3 Safety Standards The devices of the GSM/2G/3G/GNNS BOLERO40 Series comply with all applicable RF safety standards. BOLERO40 meet the safety standards for RF receivers and the standards and recommendations for the protection of public exposure to RF electromagnetic energy... -
Page 15: Technical Data
INTERNAL MEMORY 16 Mbyte Flash for configuration, data-logging and firmware storage NMEA Msg.: GLL, GGA, RMC, VTG, GSV, GSA SUPPORTED PROTOCOLS Lantronix Msg.: IOP, GSM, AREA, 3DP, BIN - see documents Table Internal antennas GSM/2G/3G/GNSS ANTENNA... -
Page 16: Power Consumption For Bolero40 Series
Technical Data 4.1.1 Power consumption for BOLERO40 Series These measurements are performed with the firmware version 3.1.0_rc8 (release is planned in October 2017). All measurements performed under T = 23°C, V =12 VDC; BOLERO45: 2G: 1800 MHz/3G: 2100 MHz; Avr. power consum. @12 VDC... -
Page 17: Operating Temperatures
Operating temperature °C Storage temperature °C Storage temperature (battery*) °C Charging temperature (battery-operated) °C Discharging temperature (battery- °C operated) * Storage capacity should be 40% ~ 50% full charge capacity. Table 4: Operating temperature for BOLERO40 Series BOLERO40 Series Hardware Manual... -
Page 18: Gsm/2G/3G Engine Specifications
DATA GPRS: Downlink transfer: max. 85.6 kbps (see table 13) Uplink transfer: max. 42.8 kbps (see table 13) Coding scheme: CS1- CS4. SMS: Text mode. Not supported AUDIO Table 5: GSM/2G/3G engine specifications BOLERO40 Series Hardware Manual... -
Page 19: Gnss Engine Specifications
Velocity: 500 m/s (972 knots) OPERATIONAL LIMITS Altitude: 50,000 m Max. update rate: 1 Hz. Online / Offline / Autonomous A-GPS SUPPORT Load sensitivity (TCXO) CRYSTAL OSCILLATOR Table 6: GNNS engine specifications BOLERO40 Series Hardware Manual... -
Page 20: Bolero Series Application Interface
BOLERO40 Series Application Interface 5 BOLERO40 Series Application Interface 5.1 Power supply The power supply for the BOLERO40 series devices has to be a single voltage source of: = +10.8 V...+48.0 VDC DC IN The operating voltage (V ) has to be applied permanently to the BOLERO40 series DC IN devices and able to provide sufficient current of up to 2 A (pulse). -
Page 21: Power Saving
BOLERO40 Series Application Interface 5.2 Power saving SLEEP mode reduces the functionality of the modules of the BOLERO40 series devices to a minimum and, thus, minimizes the current consumption to the lowest level. The BOLERO40 into sleep mode using command $PFAL,Sys.Device.ChargeSleep or with one or more parameters listed in the... -
Page 22: Determining The External Equipment Type
BOLERO40 Series Application Interface 5.3 Determining the External Equipment Type Before you connect the serial port pins of the BOLERO40 series devices to external equipment, you need to determine if the external hardware serial ports are configured as DTE (Data Terminal Equipment) or DCE (Data Communications Equipment). -
Page 23: Hardware Interfaces
The IO2 and IO3 have dual functions. Both are controlled by the internal firmware of BOLERO40. Therefore, the user must define whether to use them as analogue or digital. IOs as digital can be used as inputs or outputs while as analogue can only be used as inputs. BOLERO40 Series Hardware Manual... -
Page 24: How To Use Ios As Analogue Inputs
It is possible to set an alarm for low temperatures and alarm for high temperature. Passage through these thresholds can generate events that can be used to trigger alarms for low and high temperatures. Alarms BOLERO40 Series Hardware Manual... -
Page 25: How To Use Ios As Digital Inputs
Indices 1 and 2 correspond to IO1 (pin 4), IO2 (pin 5) respectively. The values 5 and 10 are min. and max. voltages PFAL,IO1[2].Config=DI,5,10 are used to generate Low and High events respectively. For more details, refer to the related documents BOLERO40 Series Hardware Manual... - Page 26 BOLERO40 can react to the input changes and release different alarms such as SMS, email, TCP message or activating an output port. The alarm type is configuration-dependent. Figure 4: Connection example when using it as digital input. A completed circuit example for all inputs is attached in section 10.1.1. BOLERO40 Series Hardware Manual...
-
Page 27: How To Use Ios As Digital Outputs
(e.g. $PFAL,Cnf.Set,AL0=IO.e8=redge:IO5.Set=cyclic,1000,2000). In order to evaluate this alarm, send firstly this alarm configuration to the BOLERO40 series devices and then trigger IGN-pin (see Figure 6 below) to High – as result the IO2 goes High for 1 sec and Low for 2 sec. To set IO2 to Low, just execute the command $PFAL,IO5.Set=Low. -
Page 28: How To Use Ign (Ignition)
On IGN wake-up signal, the device returns to full functionality. Note that, BOLERO40 series devices automatically boot up when external power is applied, and IGN pin provides an additional "wake up" function for the IGN-sleep mode when it is requested. -
Page 29: Serial Port 0 - Serial Communication Signals (Rtd And Txd)
RFID device. However it offers free of charge serial communication with a PC for evaluation and configuration purposes. To connect an RFID serial device to this serial port and use it, you need to purchase the corresponding activation key. Please contact Lantronix sales team for more details. -
Page 30: Inserting A Sim Card Into The Sim Holder
To insert the PIN of the SIM card follow the steps below (as reference use Fig. 9): 1. Read the information in chapter 6.1.2 about the serial port of the BOLERO40 Series. 2. Install the Lantronix Workbench software, BOLERO40 Series Hardware Manual... -
Page 31: Led Indicators
To evaluate these LEDs, use the PFAL commands below (copy and paste them into the Editor 1, see Fig. 9 above): PFAL COMMANDS LED COLOR LED INDEX DESCRIPTION $PFAL,IO12.Set=hpulse,2000 GREEN Turns on the LED for 2 sec. BOLERO40 Series Hardware Manual... -
Page 32: Mounting
(not included). For more detailed information how to install BOLERO40 devices in the vehicle and what should be considered during the installation, refer to the application note [AppNotes_AVL_Installation_Guide.pdf]. Figure 11: Device mounting types BOLERO40 Series Hardware Manual... -
Page 33: Housing
Housing 7 Housing The necessary dimensions for mounting the housing can be found in the drawing below. Figure 12: BOLERO40 housing BOLERO40 Series Hardware Manual... -
Page 34: Rf Exposures
• Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. BOLERO40 Series Hardware Manual... -
Page 35: Appendix
These precautions will help prevent risks which might occur e.g. in case of damage of the installation cable. The figure below illustrates a common schematic of how to install BOLERO40 in the vehicle. detailed information, refer related documents [AppNotes_AVL_Installation_Guide.pdf]. Figure 13: Schematic example of installation guidance. BOLERO40 Series Hardware Manual... -
Page 36: What Should Be Considered When Using Bolero40 Series
BOLERO40 is controlled by means of the PFAL commands. which are developed by Lantronix. These PFAL commands can only be executed when the device is on and the firmware inside the device is running. In order to create application with the BOLERO40 and to obtain maximum benefit from the BOLERO40 operating firmware, you have to setup your configuration and store it in the device. -
Page 37: Gprs Coding Scheme
It contains the state values of the motion sensor. The user protocol contains GPS time, date, position, course and speed data in binary format (small sized - only 21 characters). Table 9.1: Lantronix Output Messages 9.4 GPRS Coding scheme Coding scheme...
