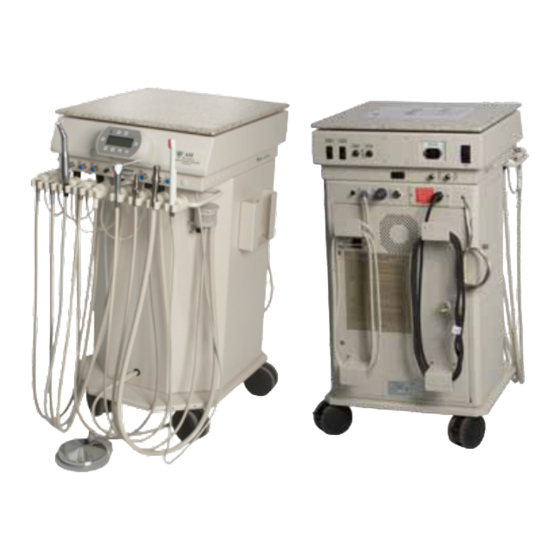

Advanced Dental System
Operation & Service Manual
Dental Operative Unit
Models: 2025M | 2025M/DV | 2025M/AR
PN: 65-2025M | Rev. B
This Operation and Service Manual includes
sections for optional components that may or may
not be included in your system.
Your system may contain built-in accessory
instruments from other manufacturers. Please
refer to the original manufacturer's instructions for
operation and maintenance of those instruments.
Triton
Advanced Dental Systems
®
Online: www.asimedical.net | Main: (303) 766-3646 | Toll Free: (800) 566-9953
™
& Advanced Endodontic Systems
®
®
