Model #AF 976734 •Vision Satellite Entryway Foam Sanitizer
REQUIREMENTS
Chemical Concentrate
Water
Temperature
Pressure
Flow
Supply Line
Compressed Air
Hose
Nozzle
OPTIONS
Stainless Steel Jug Racks
1 Gallon Round/Square
1 Gallon Round/Square Locking
2 ½ Gallon (8 ½" x 10 ½")
5 Gallon (12" x 12")
5 Gallon Round Locking
Dual Pick-up Assembly
Entryway Dual Chemical Pick-up Assembly
Alternate Check Valve - Viton Standard
Check Valve, Chemical, PP, 1/4" (EPDM)
Overview

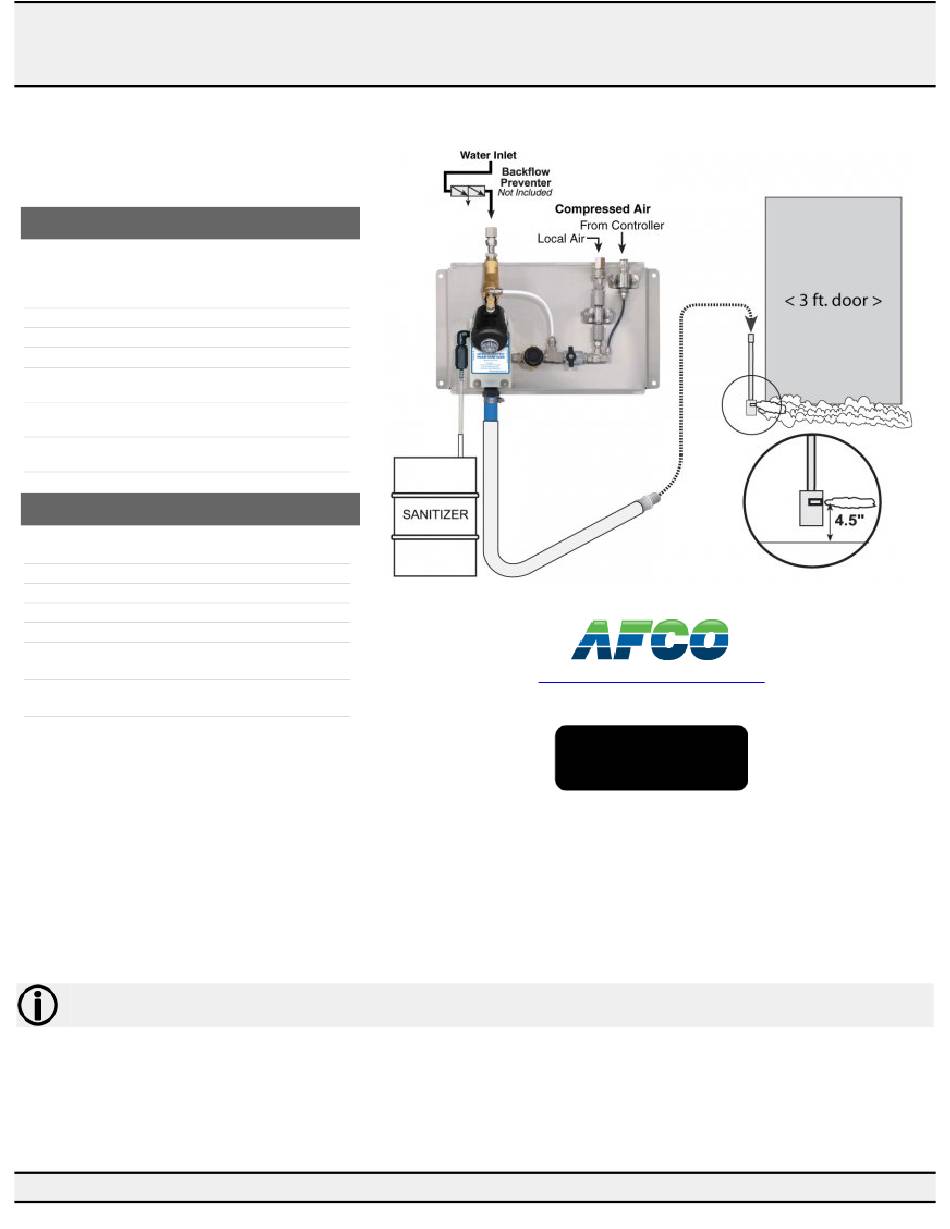

The Vision Satellite Entryway Foam Sanitizer is an automated foam applicator for projecting sanitizing chemicals on to floors of 3' wide employee walk doors
to prevent cross contamination. When activated, this venturi injection system uses city water pressure (35 - 125 PSI) to draw and blend chemical concentrate
into the water stream to create an accurately diluted solution. Rich, clinging foam is created by injecting compressed air into the solution to greatly increase
volume and coverage ability. Foam is then projected through the discharge hose and Spreader™ nozzle. Vision Satellite units are activated by compressed
air from the Vision Controller and operated by compressed air local to the satellite - No electrical connection is required at the entryway location. The Vision
Controller features highly flexible programmable settings with multiple options to precisely manage the foam sanitizing of up to six zones of multiple doorways
with independent settings for each zone.
