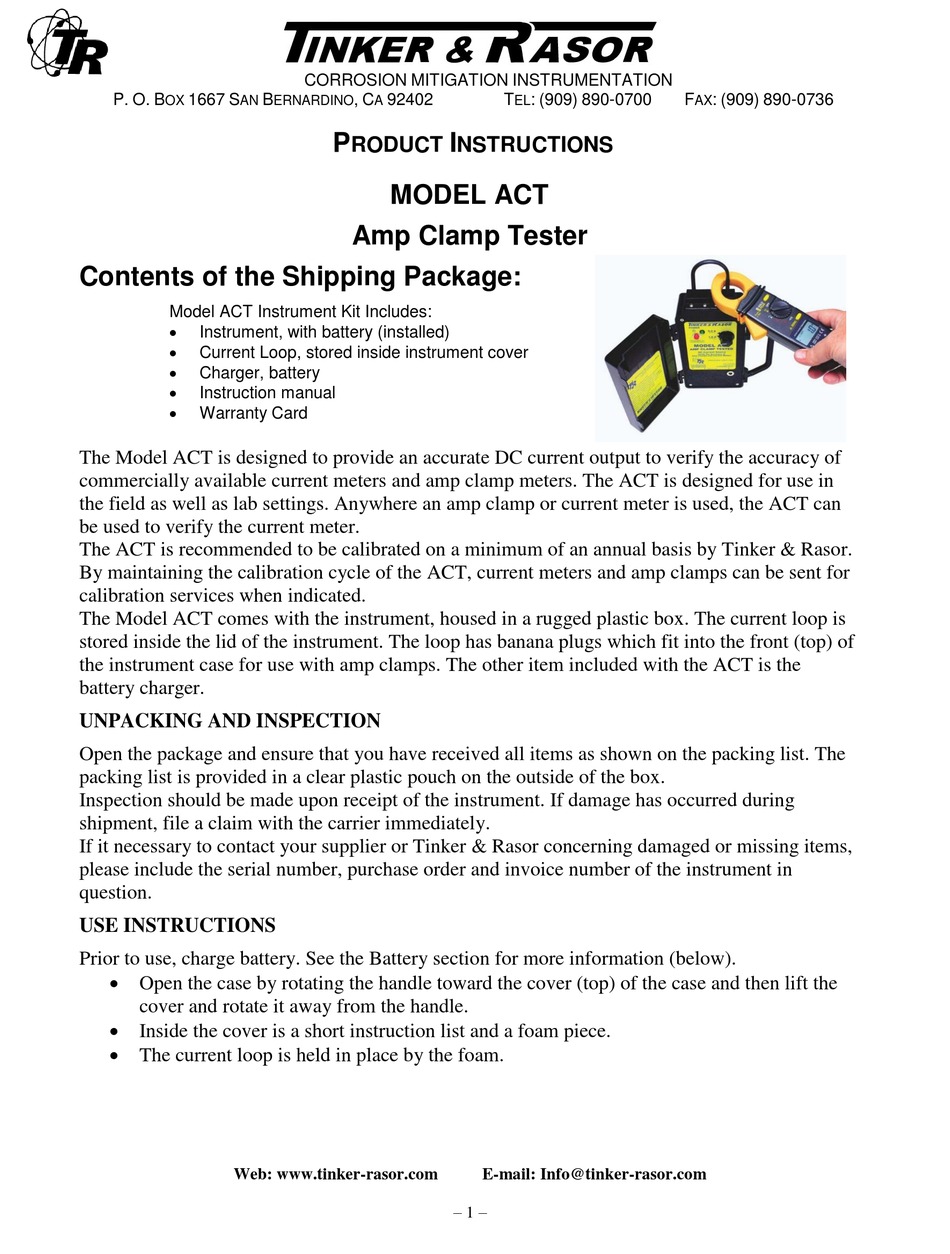

Tinker & Rasor ACT Product Instructions

P. O. B 1667 S
OX AN

Contents of the Shipping Package:

Model ACT Instrument Kit Includes:

Instrument, with battery (installed)

Current Loop, stored inside instrument cover

Charger, battery

Instruction manual

Warranty Card
The Model ACT is designed to provide an accurate DC current output to verify the accuracy of
commercially available current meters and amp clamp meters. The ACT is designed for use in
the field as well as lab settings. Anywhere an amp clamp or current meter is used, the ACT can
be used to verify the current meter.
The ACT is recommended to be calibrated on a minimum of an annual basis by Tinker & Rasor.
By maintaining the calibration cycle of the ACT, current meters and amp clamps can be sent for
Calibration services when indicated.
The Model ACT comes with the instrument, housed in a rugged plastic box. The current loop is
stored inside the lid of the instrument. The loop has banana plugs which fit into the front (top) of
the instrument case for use with amp clamps. The other item included with the ACT is the
Battery charger.

UNPACKING AND INSPECTION

Open the package and ensure that you have received all items as shown on the packing list. The
packing list is provided in a clear plastic pouch on the outside of the box.
Inspection should be made upon receipt of the instrument. If damage has occurred during
shipment, file a claim with the carrier immediately.
If it necessary to contact your supplier or Tinker & Rasor concerning damaged or missing items,
please include the serial number, purchase order and invoice number of the instrument in
question.

USE INSTRUCTIONS

Prior to use, charge battery. See the Battery section for more information (below).
 Open the case by rotating the handle toward the cover (top) of the case and then lift the
cover and rotate it away from the handle.
 Inside the cover is a short instruction list and a foam piece.
 The current loop is held in place by the foam.
Web: www.tinker-rasor.com
CORROSION MITIGATION INSTRUMENTATION
B , C 92402
ERNARDINO A
P
RODUCT
MODEL ACT
Amp Clamp Tester
T : (909) 890-0700
EL
I
NSTRUCTIONS
E-mail: Info@tinker-rasor.com
– 1 –
