Summary of Contents for Silicon Graphics ICE XA

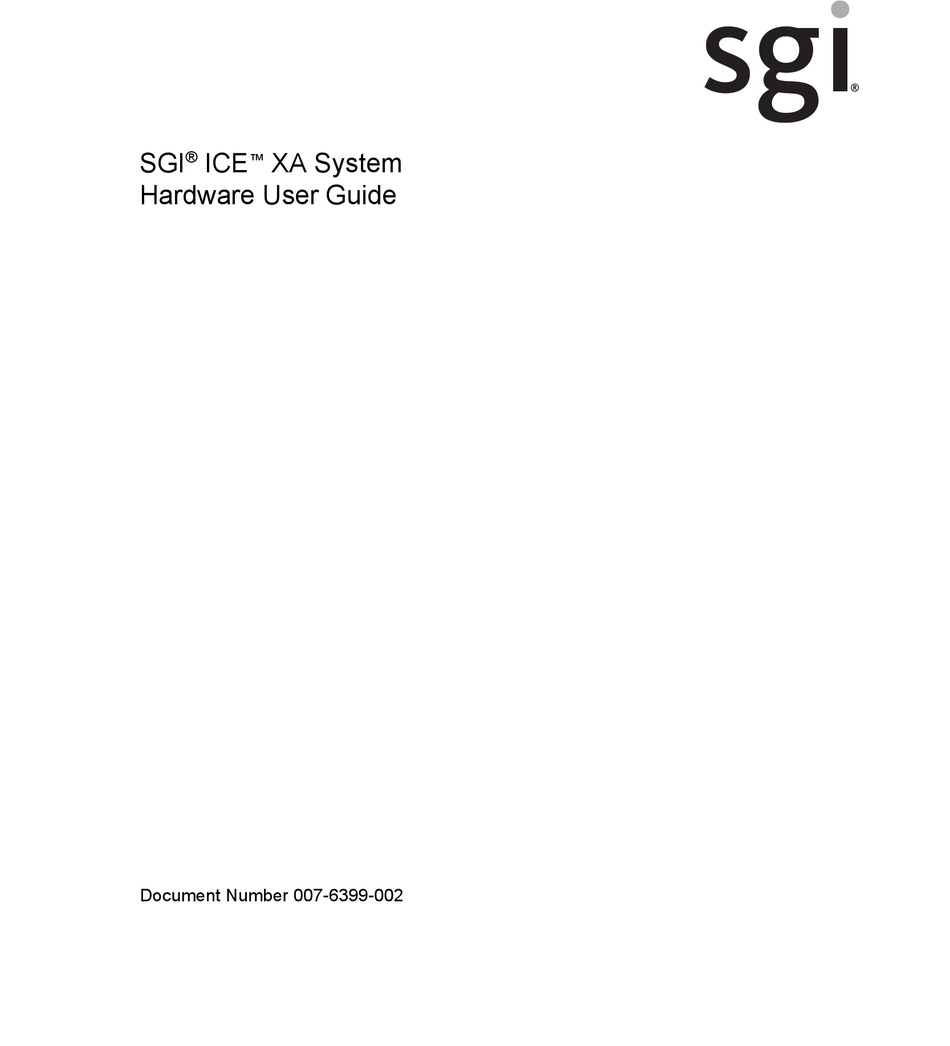

  • Page 1 XA System  ® ™  Hardware User Guide Document Number 007-6399-002...
  • Page 2 Contractor/manufacturer is SGI, 900 North McCarthy Blvd. Milpitas, CA 95035. TRADEMARKS AND ATTRIBUTIONS SGI, and the SGI logo are registered trademarks and Rackable, SGI Lustre and SGI ICE are trademarks of, Silicon Graphics International, in the United States and/or other countries worldwide.
  • Page 3 Record of Revision Version Description -001 May, 2015 First release -002 July, 2015 Second release covering updated cpower commands 007-6399-002...
  • Page 5: Table Of Contents

    Contents List of Figures . . ix List of Tables . xi Audience. . xiii Important Information . . xiii Chapter Descriptions . xiv Related Publications . . xv Conventions . .xvii Product Support . .xvii Reader Comments . xviii Operation Procedures .
  • Page 6 System Power Status . . 19 System Overview . 21 System Models . . 22 SGI ICE XA System and Blade Architectures . . 26 IP125 Blade Architecture Overview . 26 IP139 Blade Architecture Overview . 27 QuickPath Interconnect Features.
  • Page 7 Optional System Components . . 44 Rack Information . . 45 Overview . 45 SGI ICE XA Series D-Rack (42U) . . 46 ICE XA D-Rack Technical Specifications . . 49 SGI ICE XA E-Cell Rack Assemblies . . 50 E-Cell Functional Overview .
  • Page 8 System-level Specifications . . 65 D-Rack Physical and Power Specifications . . 66 D-Rack System Environmental Specifications . . 67 ICE XA E-Rack Technical Specifications . . 68 Ethernet Port Specification . . 70 Safety Information and Regulatory Specifications . . 71 Safety Information .
  • Page 9: List Of Figures

    Figure 1-2 Eight-Outlet Single-Phase PDU Example Figure 1-3 Three-Phase PDU Example . Figure 1-4 SGI ICE XA System Admin and Service Node Network Access Example . 16 Figure 2-1 E-rack System Chassis Management Diagram (With CDU). . 18 Figure 2-2 SGI ICE XA Series System E-Cell Assembly Example .
  • Page 10 List of Figures Ethernet Port . . 70 Figure A-1 VCCI Notice (Japan Only) . 75 Figure B-1 Chinese Class A Regulatory Notice . . 75 Figure B-2 Korean Class A Regulatory Notice . 75 Figure B-3 007-6399-002...
  • Page 11 SGI ICE XA E-Rack Technical Specifications . . 51 Table 4-2 SGI ICE XA E-Cell Cooling-Rack Specifications . . 52 Table 4-3 SGI ICE XA Cooling Distribution Unit (CDU) Specifications . . 53 Table 4-4 SGI ICE XA Series Configuration Ranges . . 65 Table A-1 ICE XA System D-Rack Physical Specifications .
  • Page 13: Audience

    To avoid problems that could void your warranty, your SGI or other approved service technician should perform all the setup, addition, or replacement of parts, cabling, and service of your SGI ICE XA series system, with the exception of the following items that you can perform yourself: •...
  • Page 14: Chapter Descriptions

    Chapter 4, “Rack Information,” describes the system’s rack features. • Chapter 5, “SGI ICE XA Administration/Leader Servers” describes all the controls, connectors and LEDs located on the front of the stand-alone administrative, rack leader and other support server nodes. An outline of the server functions is also provided.
  • Page 15: Related Publications

    ICE XA system. It may also be ordered configured as a login, or batch server, or other type of support server used with the ICE XA series of computer systems. The C1104-GP2 variation uses four 3.5-inch internal drives and the C1110-GP2 uses ten internal 2.5-inch drives.
  • Page 16 • SGI Management Center Administration Guide for Clusters, (P/N 007-6358-00x) This document is intended for people who manage and administer the operation of SGI ICE XA systems. The management center software is also used to administer other non-ICE SGI clusters or systems.
  • Page 17: Conventions

    Conventions Conventions The following conventions are used throughout this document: Convention Meaning This fixed-space font denotes literal items such as commands, files, Command routines, path names, signals, messages, and programming language structures. variable The italic typeface denotes variable entries and words or concepts being defined.
  • Page 18: Reader Comments

    About This Guide Reader Comments If you have comments about the technical accuracy, content, or organization of this document, contact SGI. Be sure to include the title and document number of the manual with your comments. (Online, the document number is located in the front matter of the manual. In printed manuals, the document number is located at the bottom of each page.) You can contact SGI in the following ways: •...
  • Page 19: Operation Procedures

    Chapter 1 Operation Procedures This chapter explains how to operate your new system in the following sections: • “Precautions” on page 1 • “Console Connections” on page 3 • “Powering the System On and Off” on page 4 • “Monitoring Your Server” on page 12 Precautions Before operating your system, familiarize yourself with the safety information in the following sections:...
  • Page 20: Safety Precautions

    1: Operation Procedures Safety Precautions Warning: Before operating or servicing any part of this product, read the “Safety Information” on page 69. Danger: Keep fingers and conductive tools away from high-voltage areas. Failure to follow these precautions will result in serious injury or death. The high-voltage areas of the system are indicated with high-voltage warning labels.
  • Page 21: Console Connections

    Console Connections Console Connections The flat panel console option (see Figure 1-1) has the following listed features: Slide Release - Move this tab sideways to slide the console out. It locks the drawer closed when the console is not in use and prevents it from accidentally sliding open. 2.
  • Page 22: Powering The System On And Off

    1: Operation Procedures A console is defined as a connection to the system (to the administrative server) that provides administrative access to the cluster. SGI offers a rackmounted flat panel console option that attaches to the administrative node’s video, keyboard and mouse connectors. The rackmounted console option is always installed in the air-cooled rack used for administrative, RLC and service node units.
  • Page 23: Preparing To Power On

    Powering the System On and Off When using the SGI cluster manager software, you can monitor and manage your server from a remote location. See the SGI Management Center Administration Guide for Clusters,  (P/N 007-6358-00x). Preparing to Power On To prepare to power on your system, follow these steps: Check to ensure that the cabling between the rack’s power distribution units (PDUs) and the wall power-plug receptacle is secure.
  • Page 24: Figure 1-3 Eight-Outlet Single-Phase Pdu Example

    1: Operation Procedures Power distribution unit (PDU) Power source Figure 1-3 Eight-Outlet Single-Phase PDU Example Figure 1-4 on page 7 shows an example of the three-phase PDU. 007-6399-002...
  • Page 25: Figure 1-4 Three-Phase Pdu Example

    Powering the System On and Off Figure 1-4 Three-Phase PDU Example 007-6399-002...
  • Page 26: Powering On And Off

    Console Management Power (cpower) Commands This section provides an overview of the console management power (cpower) commands for the SGI ICE XA system. The cpower commands allow you to power on, power off, reset, and show the power status of multiple or single system components or individual racks.
  • Page 27 Powering the System On and Off Table 1-1 (continued) cpower option, action, target type and target list descriptions Argument Description Target_type Apply the action to a node or nodes. Nodes can be blade compute nodes node (inside a blade enclosure), admin server nodes, rack leader controller nodes or service nodes.
  • Page 28 1: Operation Procedures Table 1-1 (continued) cpower option, action, target type and target list descriptions Argument Description halt Halts and then powers-off the target(s). Halts the target by issuing a halt command via ssh. Valid target types are: leader, node, system. If the target type is system, ICE compute nodes are halted first;...
  • Page 29: Table 1-2 Cpower Example Command Strings

    Powering the System On and Off Table 1-2 cpower example command strings Command Status/result Powers on all nodes in the system. # cpower system on or # cpower node on "r*i*n*" # cpower node status "r1i*n*" Determines the power status of all nodes in rack 1 (except CMCs).
  • Page 30: Monitoring Your Server

    These console connections enable you to view the status and error messages generated by your SGI ICE XA system. You can also use these consoles to input commands to manage and monitor your system. See the section “System Power Status” on page 17, for additional information.
  • Page 31: Pcie Subsystem Control

    These are the most easily configurable I/O system interfaces for the SGI ICE XA systems. See the particular server’s user guide for detailed information on installing optional I/O cards or other components.
  • Page 33: System Management

    Figure 2-1 shows an example remote LAN-connected console communication path to an SGI (D-rack) containing the administration, RLC and other service nodes for the SGI ICE XA series system. The E-Cell compute and cooling rack assembly is not shown in this diagram.
  • Page 34: Figure 2-1 Sgi Ice Xa System Admin And Service Node Network Access Example

    2: System Management Remote workstation monitor Local Area Network (LAN) Local Area Network (LAN) SGI ICE XA system admin Cat-5 Ethernet and service node rack Figure 2-1 SGI ICE XA System Admin and Service Node Network Access Example 007-6399-002...
  • Page 35: Using The 1U Console Option

    Note: While the 1U console is normally plugged into the administrative controller server in the SGI ICE XA system, it can also be connected to a rack leader controller server in the system for terminal access purposes.
  • Page 36: Chassis Manager Interconnects

    2: System Management Chassis Manager Interconnects The chassis manager in each blade enclosure connects to the system administration, rack leader and service node servers via Gigabit Ethernet switches. See the example in Figure 2-2. Use of a CDU is required in all E-Cell configurations as of the time of publication of this document.
  • Page 37: Chassis Management Control (Cmc) Functions

    System Power Status Chassis Management Control (CMC) Functions The following list summarizes the control and monitoring functions that the CMCs perform. Most functions are common across multiple blade enclosures: • Controls and monitors blade enclosure fan speeds • Reads system identification (ID) PROMs •...
  • Page 38 2: System Management # cpower iru off r1i0 This command powers off all the nodes in IRU (blade enclosure) 0 in rack 1. Note that this command does not power-off the system administration node (server), rack leader controller server or other service nodes. See “Console Management Power (cpower) Commands”...
  • Page 39: System Overview

    System Overview This chapter provides an overview of the physical and architectural aspects of your SGI Integrated Compute Environment (ICE) XA series system. The major components of the SGI ICE XA systems are described and illustrated. Because the system is modular, it combines the advantages of lower entry-level cost with global scalability in processors, memory, InfiniBand connectivity and I/O.
  • Page 40: System Models

    The SGI ICE XA series systems can run parallel programs using a message passing tool like the Message Passing Interface (MPI). The SGI ICE XA blade system uses a distributed memory scheme as opposed to a shared memory system like that used in the SGI UV series of high-performance compute servers.
  • Page 41: Figure 3-1 Sgi Ice Xa Series System E-Cell Assembly Example

    Figure 3-1 SGI ICE XA Series System E-Cell Assembly Example The compute rack enclosures within the SGI ICE XA system are 10.5U 9-blade units. Each enclosure supports between two and nine compute blade assemblies, up to nine power supplies, one chassis management controller (CMC) and up to four InfiniBand based I/O fabric switch interface blades.
  • Page 42 3: System Overview SGI ICE XA systems require a minimum of one 42U tall D-rack with PDUs installed to support standard and optional servers or storage units used with the ICE XA system. Figure 3-2 shows a diagram of the D-rack and typical support hardware that would be installed in the rack.
  • Page 43: Figure 3-2 D-Rack Standard And Optional Components Example

    System Models 42U High Rack Service node Admin server Rack leader controller 1U Gig-E switch 1U console kbd/monitor Optional service node Optional storage units Figure 3-2 D-rack Standard and Optional Components Example 007-6399-002...
  • Page 44: Sgi Ice Xa System And Blade Architectures

    3: System Overview SGI ICE XA System and Blade Architectures The SGI ICE XA series of computer systems are based on an FDR InfiniBand I/O fabric. This concept is supported and enhanced by using the SGI ICE XA blade-level technologies described in the following subsections.
  • Page 45: Ip139 Blade Architecture Overview

    SGI ICE XA System and Blade Architectures The two processors on each node in an IP125 blade maintain an interactive communication link using the Intel QuickPath Interconnect (QPI) technology. This high-speed interconnect technology provides data transfers between the on-board processors. See the section “QuickPath Interconnect Features”...
  • Page 46: Quickpath Interconnect Features

    The IP139 compute blade cannot be plugged into and cannot be used in “previous generation” SGI ICE X, Altix ICE 8200 or 8400 series blade enclosures. Usage of ICE XA blade enclosures in non SGI ICE XA racks may be restricted/unsupported due to thermal requirements.
  • Page 47: Blade Memory Features

    32 DDR4 RDIMMs. Memory increments are in groups of four DIMMs per processor socket. Each Intel processor in an ICE XA IP139 blade uses four DDR4 memory channels with one or more memory DIMMs on each channel (depending on the configuration selected). Each of these blades uses four processors and up to 16 DIMMs.
  • Page 48: Memory Channel Recommendation

    One, two or four fourteen-data-rate (FDR) InfiniBand switch blades can be used with each blade enclosure pair configured in the SGI ICE XA system. The switch blades plug into the rear of the blade enclosure, which reduces latency and improves air flow. The switch blades provide the interface between compute blades within the same blade enclosure and also between compute blades in separate blade enclosures.
  • Page 49: System Features And Major Components

    System Features and Major Components System Features and Major Components The main features of the SGI ICE XA series server systems are introduced in the following sections: • “Modularity and Scalability” on page 31 • “Reliability, Availability, and Serviceability (RAS)” on page 38 Modularity and Scalability The SGI ICE XA series systems are modular, blade-based, scalable, high-density cluster systems.
  • Page 50: System Administration Server

    Each SGI ICE XA system will have one system administration controller, at least one rack leader controller (RLC) and at least one service node. All ICE XA systems require one RLC for every eight CMCs in the system. Figure 3-3 shows an overview of the SGI ICE XA system management and component network interaction.
  • Page 51: Rack Leader Controller

    “backup” admin server. The second (backup) server runs the same system management image as the primary server. The server is used to install SGI ICE XA system software, administer that software and monitor information from all the compute blades in the system. Check with your SGI sales or service representative for information on “cold spare”...
  • Page 52: The Rlc As Fabric Manager

    Administration and RLC Cabling to Chassis Managers The RLC as Fabric Manager In some SGI ICE XA configurations the fabric management function is handled by the rack leader controller (RLC) node. The RLC is an independent server that is not part of the blade enclosure pair.
  • Page 53: Service Nodes

    (MPI) applications run in the system. An MPI job is started from the login node and the sub-processes are distributed to the ICE XA system’s compute nodes. Another operating factor for a login server is the file system structure. If the node is NFS-mounting a network storage system outside the ICE system, input data and output results will need to pass through for each job.
  • Page 54: Batch Server Node

    The I/O gateway server function may be combined with login or other service nodes for many configurations. If required, the I/O gateway server function can be hosted on an optional 1U or 2U stand-alone server within the ICE XA system. 007-6399-002...
  • Page 55: Optional Lustre Nodes Overview

    NFS. Optional Lustre Nodes Overview The nodes in the following subsections are used when the SGI ICE XA system is set up as a Lustre file system configuration. In SGI ICE XA installations the MDS and OSS functions are generally on separate nodes within the ICE XA system and communicating over a network.
  • Page 56: Oss Node

    The object storage server (OSS node) is one of the elements of a Lustre File Storage system. The OSS is managed by the SGI ICE XA management network. The OSS stores file data on one or more object storage targets (OSTs). Depending on the server’s hardware, an OSS node typically serves between two and eight OSTs, with each OST managing a single local disk filesystem.
  • Page 57: Optional Sgi Remote Services (Sgi Rs)

    Optional SGI Remote Services (SGI RS) – Nodes within each blade enclosure exceed SECDED standards by detecting and correcting 4-bit and 8-bit DRAM failures. – Detection of all double-component 4-bit DRAM failures occur within a pair of DIMMs. – 32-bits of error checking code (ECC) are used on each 256 bits of data. –...
  • Page 58: Sgi Remote Services Benefits

    3: System Overview SGI Remote Services Benefits • Improved uptime and system availability • Proactive identification of issues before they create an outage • Increase system stability by monitoring hardware and software version compatibility • Reduced time to resolve support cases •...
  • Page 59: Sgi Knowledgebase

    Optional SGI Remote Services (SGI RS) Figure 3-7 SGI Remote Services Process Overview SGI Knowledgebase SGI Knowledgebase is a database of solutions to problems and answers to questions that can be searched by sophisticated knowledge management tools. You can log on to SGI Knowledgebase at any time to describe a problem or ask a question.
  • Page 60: Sgi Warranty Levels

    3: System Overview SGI Warranty Levels SGI Electronic Support services are available to customers who have a valid SGI Warranty or optional support contract. Additional electronic services may become available after publication of this document. To purchase a support contract that allows you to use all available SGI Electronic Support services, contact your SGI sales representative.
  • Page 61: System Components

    42U D-rack. This is an SGI rack used for support nodes, optional storage, switches and I/O in the SGI ICE XA series. Note that each ICE XA system must have a dedicated I/O rack holding GigE switches, RLCs, Admin servers and additional service nodes. Water-cooled D-racks are optionally available.
  • Page 62: Optional System Components

    Optional System Components Availability of optional components for the SGI ICE XA series of systems may vary based on new product introductions or end-of-life components. Some options are listed in this manual, others may be introduced after this document goes to production status.
  • Page 63: Rack Information

    “E-Cell Functional Overview” on page 51 Overview At the time this document was published only specific SGI ICE XA racks were approved for ICE XA systems shipped from the SGI factory. See Figure 4-4 on page 54 for an example. Contact your SGI sales or support representative for more information on configuring SGI ICE XA systems in non-ICE XA factory rack enclosures.
  • Page 64: Sgi Ice Xa Series D-Rack (42U)

    4 outlets for administration and RLC servers – 2 outlets for each service node (minimum of one server) – two outlets for each optional storage unit Optional single-phase PDUs can be used in SGI ICE XA racks dedicated to service node or I/O functionality. 007-6399-002...
  • Page 65: Figure 4-1 D-Rack Front Lock Example

    SGI ICE XA Series D-Rack (42U) Figure 4-1 D-Rack Front Lock Example 007-6399-002...
  • Page 66: Figure 4-2 Optional Water-Chilled Door Panels On Rear Of Ice Xa D-Rack

    4: Rack Information Figure 4-2 Optional Water-Chilled Door Panels on Rear of ICE XA D-Rack 007-6399-002...
  • Page 67: Ice Xa D-Rack Technical Specifications

    ICE XA D-Rack Technical Specifications ICE XA D-Rack Technical Specifications Table 4-1 lists the technical specifications of the SGI ICE XA series D-Rack. Table 4-1 Tall SGI ICE XA D-Rack Technical Specifications Characteristic Specification Height 82.25 in (208.9 cm) with 2U top Width 24 in.
  • Page 68: Sgi Ice Xa E-Cell Rack Assemblies

    4: Rack Information See “System-level Specifications” in Appendix A for a more complete listing of SGI ICE XA system operating specifications and environmental requirements. SGI ICE XA E-Cell Rack Assemblies SGI ICE XA system configurations require the use of enhanced “closed-loop” cooling and the compute rack assemblies are generally referred to as an “E-Cell”.
  • Page 69: E-Cell Functional Overview

    SGI ICE XA E-Cell Rack Assemblies a cooling distribution unit CDU (tower). See Figure 4-4 on page 54 for an example E-Cell configuration with single CDU. E-Cell Functional Overview An E-Cell consists of two E-racks and a dedicated cooling rack and also a special cooling distribution rack (CDU).
  • Page 70: E-Cell Cooling Rack Specifications

    4: Rack Information Table 4-2 SGI ICE XA E-Rack Technical Specifications (continued) Characteristic Specification Hold time 16 ms Power cable 8 ft. (2.4 m) pluggable cords E-Cell Cooling Rack Specifications There is one dedicated cooling rack for every two E-racks in an E-Cell assembly. The cooling rack circulates conditioned air through the E-racks to cool the components within the E-rack assembly.
  • Page 71: Cooling Distribution Unit (Cdu) Rack Specifications

    All functions, such as switching pumps (if applicable), controlling water temperature, etc., are automatic. Table 4-4 SGI ICE XA Cooling Distribution Unit (CDU) Specifications Characteristic Specification CDU height 74.2 in.
  • Page 72: Figure 4-4 E-Cell Rack Assembly Example (Cdu On Left)

    4: Rack Information Figure 4-4 E-Cell Rack Assembly Example (CDU on Left) 007-6399-002...
  • Page 73: Sgi Ice Xa Administration/Leader Servers

    For purposes of this chapter “administration/controller server” is used as a catch-all phrase to describe the stand-alone servers that act as management infrastructure controllers. The specialized functions these servers perform within the SGI ICE XA system primarily include: • Administration and management •...
  • Page 74: Overview

    The administrative controller server (also known as the system admin controller) is at the top of the distributed management infrastructure within the SGI ICE XA system. The overall SGI ICE XA series management is hierarchical (see the following subsection “System Hierarchy” and also Figure 5-1 on page 58), with the RLC(s) communicating with the compute nodes via CMC interconnect.
  • Page 75: Communication Hierarchy

    Overview Communication Hierarchy Communication within the overall management framework is as follows: Admin Node The Admin node communicates with the following: • All rack leader controllers (RLCs) • All cooling rack controllers (CRCs) • All optional cooling distribution units (CDUs) Rack Leader Controller (RLC) The RLCs within a “logical rack”...
  • Page 76: Figure 5-1 Sgi Ice Xa System Administration Hierarchy Example Diagram

    Up to 4 BMCs per blade Compute blade Each RLC talks to a maximum of 8 CMCs A maximum of 72 compute blades per rack leader controller Customer LAN Figure 5-1 SGI ICE XA System Administration Hierarchy Example Diagram 007-6399-002...
  • Page 77: 1U Rack Leader Controller And Administration Server

    Figure 5-2 1U Rack Leader Controller (RLC)/Administration Server Front Panel The system administrative controller unit acts as the SGI ICE XA system’s primary interface to the “outside world”, typically a local area network (LAN). The server is used by administrators to provision and manage cluster functions using SGI cluster management software.
  • Page 78: 1U Service Nodes

    5: SGI ICE XA Administration/Leader Servers Batch or login functions most often run on individual separate “service” nodes, especially when the system is a large-scale multi-rack installation or has a large number of users. The 1U server may also be used as a separate (non-RLC/admin) login, batch, I/O, MDS, OSS or fabric management node.
  • Page 79: Figure 5-4 Sgi Rackable C1104-Gp1 1U Service Node Front And Rear Panel Example

    1U Service Nodes System Four disk drive bays LEDs System Main reset power IPMI PCIe low-profile Full-height PCIe slot expansion slot LAN 2 ports port LAN 1 Figure 5-4 SGI Rackable C1104-GP1 1U Service Node Front and Rear Panel Example Figure 5-5 SGI Rackable C1104-GP1 System Control Panel and LEDs From left to right the LED indicators are:...
  • Page 80: 2U Service Nodes

    5: SGI ICE XA Administration/Leader Servers 2U Service Nodes For systems using a separate login, batch, I/O, fabric management, or Luster service node; the following SGI 2U servers are also available as options. C2112-GP2 Service Node The SGI Rackable C2112-GP2 standard-depth servers are 2U rackmount service nodes. Each model of the server has two main subsystems: the 2U server chassis and a dual-processor serverboard.
  • Page 81: Sgi Uv 30 2U Service Node

    2U Service Nodes SGI UV 30 2U Service Node The 2U-high SGI UV 30 server is available as a four-processor ICE XA service node. This 2U service node uses four Intel E5-4600 v3 Xeon processors and supports up to 48 DIMM memory modules plus multiple I/O modules and storage adapters.
  • Page 83: Technical Specifications And Pinouts

    “D-Rack System Environmental Specifications” on page 67 • “ICE XA E-Rack Technical Specifications” on page 68 • “Ethernet Port Specification” on page 70 System-level Specifications Table A-1 summarizes the SGI ICE XA series configuration ranges. Table A-1 SGI ICE XA Series Configuration Ranges Category Minimum Maximum...
  • Page 84: D-Rack Physical And Power Specifications

    A: Technical Specifications and Pinouts D-Rack Physical and Power Specifications Table A-2 shows the physical specifications of the SGI ICE XA service and storage node D-Rack. Table A-2 ICE XA System D-Rack Physical Specifications System Features (single rack) Specification Height 82.25 in (208.9 cm) with 2U top...
  • Page 85: D-Rack System Environmental Specifications

    Ambient air or optional water cooling Heat dissipation to air Approximately 115.63 kBTU/hr maximum (based on 33.89 kW - 100% dissipation to air) Air-cooled ICE XA (rack) Heat dissipation to air Approximately 5.76 kBTU/hr maximum (based on 33.89 kW - 5% dissipation to air)
  • Page 86: Ice Xa E-Rack Technical Specifications

    Table A-4 provides information on the individual physical specifications of the compute racks used in an E-Cell assembly. Table A-5 on page 69 lists the environmental specifications for an individual E-rack. Table A-4 SGI ICE XA E-Rack Physical Specifications Characteristic Specification Height 93 in.
  • Page 87: Table A-5 Environmental Specifications (Single E-Rack)

    System-level Specifications Table A-5 Environmental Specifications (Single E-Rack) Feature Specification +5 C (41 F) to +35 C (95 F) (up to 1500 m / 5000 ft.)  Temperature tolerance +5 C (41 F) to +30 C (86 F) (1500 m to 3000 m /5000 ft. to 10,000 ft.) (operating with 95-Watt processors) +5 C (41 F) to +28 C (82.4 F) (up to 1500 m / 5000 ft.) ...
  • Page 88: Ethernet Port Specification

    A: Technical Specifications and Pinouts Ethernet Port Specification The system auto-selects the Ethernet port speed and type (duplex vs. half-duplex) when the server is booted, based on what it is connected to. Figure A-1 shows the Ethernet port. Pin 4 Pin 5 Pin 6 Pin 3...
  • Page 89: Safety Information And Regulatory Specifications

    Appendix B Safety Information and Regulatory Specifications This appendix provides safety information and regulatory specifications for your system in the following sections: • “Safety Information” on page 71 • “Regulatory Specifications” on page 73 Safety Information Read and follow these instructions carefully: Follow all warnings and instructions marked on the product and noted in the documentation included with this product.
  • Page 90 B: Safety Information and Regulatory Specifications 9. Do not attempt to service this product yourself except as noted in this guide. Opening or removing covers of node and switch internal components may expose you to dangerous voltage points or other risks. Refer all servicing to qualified service personnel. 10.
  • Page 91: Regulatory Specifications

    Regulatory Specifications Regulatory Specifications The following topics are covered in this section: • “CMN Number” on page 73 • “CE Notice and Manufacturer’s Declaration of Conformity” on page 73 • “Electromagnetic Emissions” on page 73 • “Shielded Cables” on page 76 •...
  • Page 92: Fcc Notice (Usa Only)

    B: Safety Information and Regulatory Specifications FCC Notice (USA Only) This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: • This device may not cause harmful interference. • This device must accept any interference received, including interference that may cause undesired operation.
  • Page 93: Vcci Notice (Japan Only)

    Regulatory Specifications Cet appareil numérique német pas de perturbations radioélectriques dépassant les normes applicables aux appareils numériques de Classe A préscrites dans le Règlement sur les interferences radioélectriques établi par le Ministère des Communications du Canada. VCCI Notice (Japan Only) Figure B-1 VCCI Notice (Japan Only) Chinese Class A Regulatory Notice...
  • Page 94: Shielded Cables

    B: Safety Information and Regulatory Specifications Shielded Cables This SGI system is FCC-compliant under test conditions that include the use of shielded cables between the system and its peripherals. Your system and any peripherals you purchase from SGI have shielded cables. Shielded cables reduce the possibility of interference with radio, television, and other devices.
  • Page 95: Lithium Battery Statements

    Regulatory Specifications Warning: Advertencia: Radiación láser invisible al ser abierto. Evite exponerse a los rayos. Warning: Advarsel: Laserstråling vedåbning se ikke ind i strålen Warning: Varo! Lavattaessa Olet Alttina Lasersåteilylle Warning: Varning: Laserstrålning når denna del år öppnad ålå tuijota såteeseenstirra ej in i strålen.
  • Page 96 B: Safety Information and Regulatory Specifications Warning: Advarsel: Eksplosjonsfare ved feilaktig skifte av batteri. Benytt samme batteritype eller en tilsvarende type anbefalt av apparatfabrikanten. Brukte batterier kasseres i henhold til fabrikantens instruksjoner. Warning: Varning: Explosionsfara vid felaktigt batteribyte. Anvãnd samma batterityp eller en ekvivalent typ som rekommenderas av apparattillverkaren.
