EASI
Product introduction

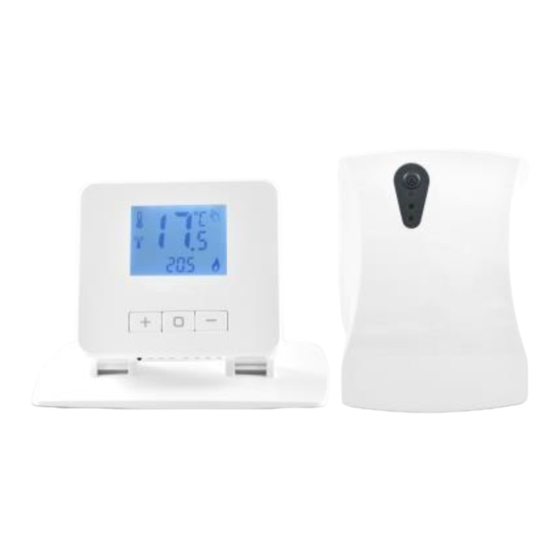

The EASI Controller is user-friendly, practical controller with
an included wireless receiver. It makes controlling far-infrared
panels simple but can also be used with:
• Boilers
• Oil , gas, warm water heating and electric space heating
• Actuators of floor heating systems or radiators
• Circulating pumps
• Heat pumps
Technical Specification:
Power source
Room temperature setting range 5℃~35℃
Accuracy
Ambient temperature-operation
Ambient temperature-storage
Dimensions
Radio frequency
Frequency range
Colour
Main Features:
�
Smart shape, easy to operate
�
Wireless thermostat, no programming
�
Battery powered
�
Locking function
�
Can be used with different systems
Caution!
1
01205 821 796
INSTRUCTION
MANUAL
SAS918WHB-0-DF
SAS2010DE Receiver
0.1℃
0℃~+50℃
-10℃~+60℃
Controller: 85 mm × 75 mm × 23mm
Wireless Receiver:113 mm × 82 mm × 30 mm
868MHz(FSK)
100m (unobstructed environment)
White
1
www.warm4less.com
2 AA size 1.5V alkaline
batteries
100-240VAC 50/60Hz
office@warm4less.com
Advertisement
Related Manuals for Warm4Less EASI
Summary of Contents for Warm4Less EASI
- Page 1 INSTRUCTION EASI MANUAL Product introduction The EASI Controller is user-friendly, practical controller with an included wireless receiver. It makes controlling far-infrared panels simple but can also be used with: • Boilers • Oil , gas, warm water heating and electric space heating •...
-
Page 2: Installation
INSTRUCTION EASI MANUAL The wireless receiver must be only be installed by a qualified electrician in compliance with the circuit diagram enclosed with these instructions to the latest regulations. To achieve protection class II, adequate installation measures must be taken. The wireless receiver which can be installed separately, is designed exclusively for temperature control in dry and closed rooms and normal living environments. - Page 3 INSTRUCTION EASI MANUAL Change battery: a. Take out the cover of the battery b. Remove the battery Installing the Receiver: Select a position where it is away from the direct influence of fire or sunlight, other appliances giving off heat.
- Page 4 INSTRUCTION EASI MANUAL Receiver Wall Installation: Bring the thermostat to a distance 2-3 m from receiver and initiate RF Communication Test. This confirms that receiver is wired correctly and that both devices are bound (linked) to each other. If this test does not work, the 2 units must be reset and bound to each other by following Description of receiver connection for Binding / Re- binding.
- Page 5 INSTRUCTION EASI MANUAL Electrical heating wiring system: Boiler wiring system: office@warm4less.com www.warm4less.com 01205 821 796...
-
Page 6: Keyboard And Display Description
INSTRUCTION EASI MANUAL Electric heating system Water heating system Boiler heating system Keyboard and display description Room temperature Temperature display area office@warm4less.com www.warm4less.com 01205 821 796... - Page 7 INSTRUCTION EASI MANUAL Temperature measurement Manual operation mode Low battery reminder Heating mode ECO mode Setting temperature display area Comfort mode 10) Child lock sign 11) Wireless RF operate sign 12) ‘Up’ button 13) Switch button/ Configuration menu setting button 14) ‘Down’ button...
- Page 8 INSTRUCTION EASI MANUAL Make sure the receiver’s off, and Make sure the thermostat is off and press down the button then press “Power button” for seconds, the indicator C will be conds, admitting into coding illuminated. status. If connecting is successful,...
-
Page 9: Configuration Menu
INSTRUCTION EASI MANUAL Save and exit - 1. Press down the “Power button” for 3 seconds, and then the receiver will save the settings and exit automatically. 2. If there has been no button pressed within 8 seconds, the receiver will save the settings... - Page 10 INSTRUCTION EASI MANUAL Backlight display Adjust displayed temperature to — suit personal needs (calibration) output Proportional constant temperature output Select the control accuracy (it is — only valid with the HP control mode) Valve-protect function 1) Select maximum temperature set point This feature provides a maximum set point temperature.
