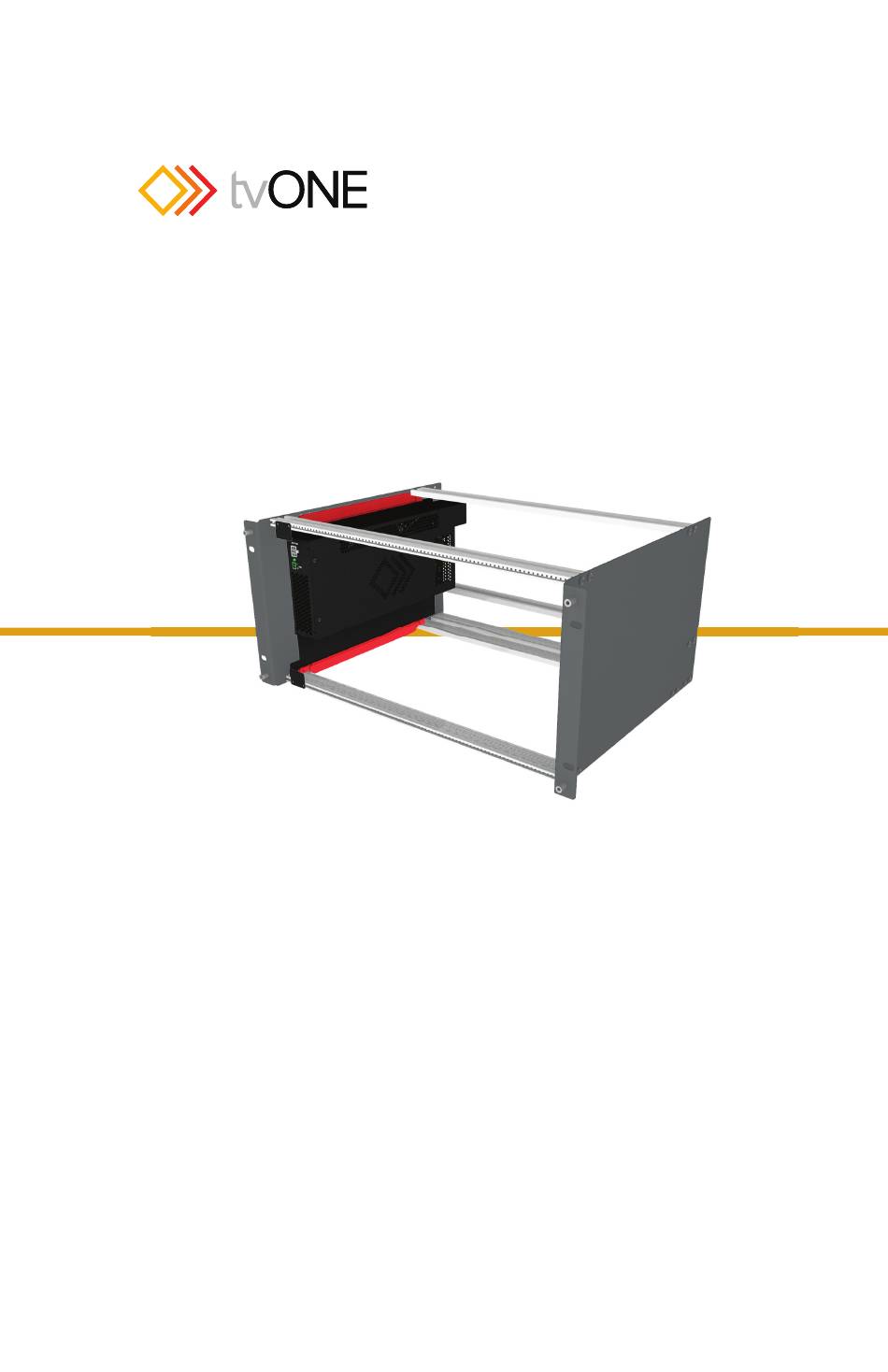

- Page 1 ® ® We Engineer Confidence We Engineer Confidence ® ® 1RK-PSU ONErack internal power supply Installation Guide V1.30 MNL-1RK-PSU-V1.30 Mar 2019...
-
Page 3: Table Of Contents
In this guide In the box Fitting the ONErack internal power supply Powering modules outside your ONErack with the service cable Safety information for the internal power supply and the dual-redundant PSU Contact us... -
Page 4: In The Box
4 M3 screws (Note: if your module has only the lower tab, you only need 2 screws) 1 power lead, AC (appropriate for your region) 1 service cable 1 A3 template In the unlikely event that a component is missing or damaged, please contact tech.usa@tvone.com or tech.europe@tvone.com. Tools Pozidriv® PZ1 crosshead screwdriver tvONE... -
Page 5: Fitting The Onerack Internal Power Supply
ONErack chassis. The guide is available from the Downloads tab at tvone.com/onerack. You can place the internal power supply anywhere in your ONErack chassis. If you decide to mount the internal power supply at the right-hand end of the chassis, leave a minimum of 10 numbered holes to the right of the guide rail. - Page 6 You only need to connect a daisy-chain cable to the upper port if you need to provide 250 W to the lower rail, or if you intend to create an upper rail with extra voltage selectors, sold separately. Ask your sales representative about 1RK-XTRA-RAIL and 1RK- XTRA-PWR. tvONE...
- Page 7 The green LED on the front of the internal power supply lights Read more about installing modules in the installation guide for ONErack modules. The guide is available from the Downloads tab at tvone.com/onerack. MNL-1RK-PSU-V1.30...
-
Page 8: Powering Modules Outside Your Onerack With The Service Cable
ONErack power supply. The service cable allows you to remove a module and connect it directly to your ONErack power supply. Your devices are powered, and serviceable. 1. Remove the module from the chassis. tvONE... - Page 9 2. Connect the service cable to the voltage selector of the module. 3. Connect the service cable to the internal power supply, or dual-redundant PSU. MNL-1RK-PSU-V1.30...
-
Page 10: Safety Information For The Internal Power Supply And The Dual-Redundant Psu
Do not block the vents of the internal power supply or dual-redundant PSU. If a power supply overheats, it shuts down and will not restart. Before you connect the service cable to a module, make sure the connector is up the right way. tvONE... -
Page 11: Contact Us
Copyright © 2019 tvONE™. All rights reserved. Registered in the U.S. Patent and Trademark Office. MNL-1RK-PSU-V1.30... - Page 12 CAPTIVATE your AUDIENCE best technology for creating eye-catching visual experiences We Engineer Confidence We Engineer Confidence...
