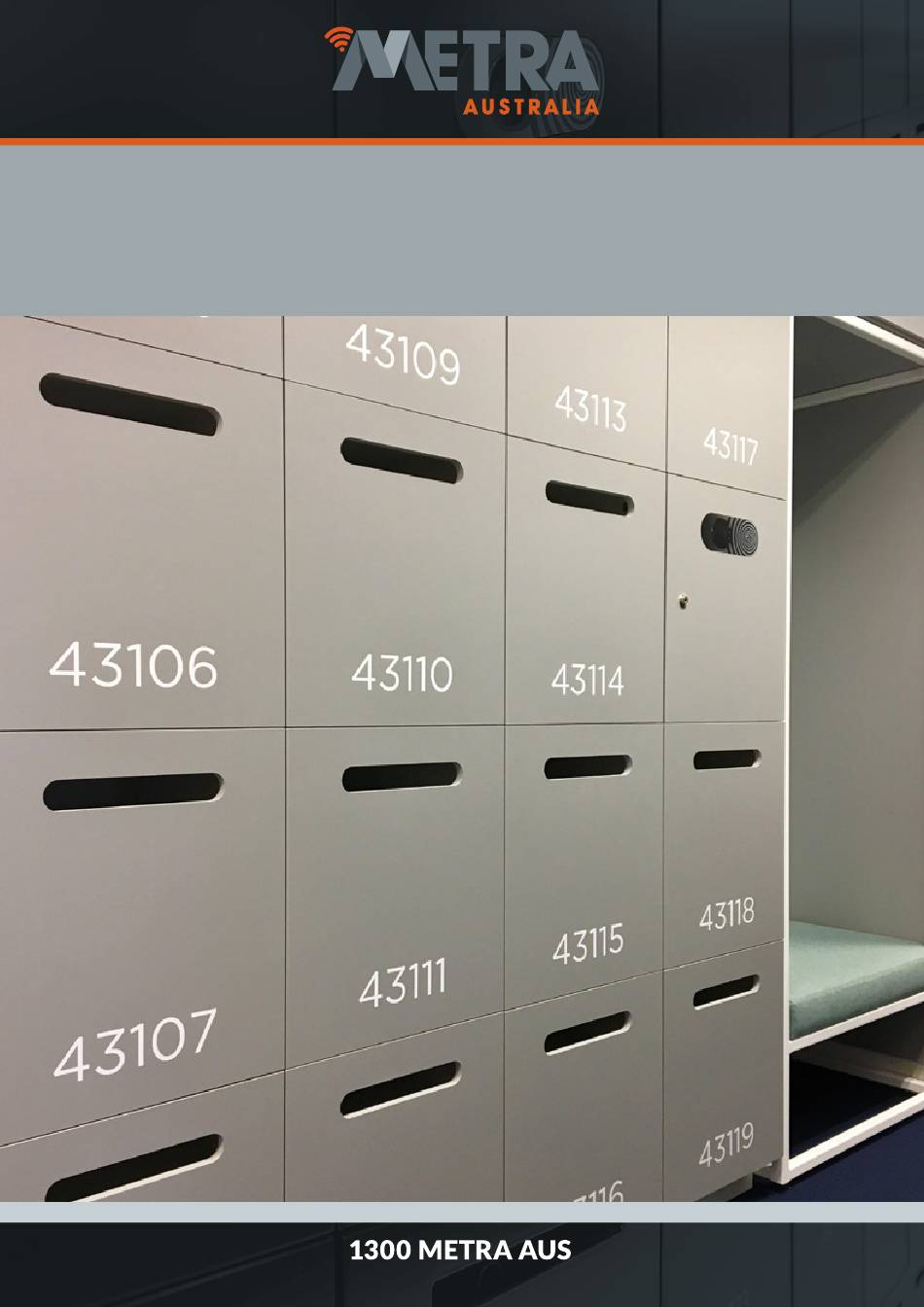

- Page 1 ELS Delivery HARDWARE PO Box 531, Moonee Ponds, Victoria, Australia 3039 www.metraaus.com.au...
-
Page 2: Additional Requirements
Metra ELS Delivery – Hardware Delivery Combo System Demo Kit includes the following hardware: Qty. Hardware Order code Network Controller TCP/IP NCTCP Locker Controller 16 ELS Delivery LC16AEDMF Display Combo Mifare DDMF Connection cable for Metra devices 3m SM040003 Power Supply 12 V DC / 2.5 A... - Page 3 Metra ELS Delivery – Connection Schematic Connect all devices including in the DEMO kit according to one of two schematics below. *Metra Electronic Locks are not included in the package. **Additionally Required hardware. Metra Delivery software is installed by Metra technical support via remote connection, which you will need to provide.
- Page 4 Metra ELS Delivery – Adding a Recipient. STEP 1: Select “Create New” button on the Recipients page of the Metra Delivery Portal, and then fill in the recipients details. A valid email address is required for notification of package delivery.
- Page 5 STEP 3: The Package is now ready for delivery. A label with bar code and Package Identification Number can be printed for affixing to the parcel. The delivery courier will require this number when delivering the package. PO Box 531, Moonee Ponds, Victoria, Australia 3039 www.metraaus.com.au...
- Page 6 Metra ELS Delivery – User Manual (Courier) NOTE: It is not required, but it is highly recommended that courier closes all the opened lockers when leaving the location. STEP 1: Approach the Delivery key (RFID media) to the antenna field. Reading distance is 2 – 5 centimetres from the device surface.
- Page 7 STEP 3: In the Delivery mode all the unoccupied and closed lockers are listed. You can move to the next locker by pressing any of the number keys. To unlock a locker move to the locker number and press the key.
- Page 8 STEP 6: Type-in a package identification number and confirm it with the key. NOTE: Sign "|" is displayed for each Pin digit entered. NOTE: If you want to cancel the procedure press key. Locker will unlock and open. Device will return to Delivery mode of operation.
- Page 9 Metra ELS Delivery – User Manual (Customer) System generated PIN code can be used by user to unlock the locker. Delivery notification includes locker number, location and if PIN code is chosen to unlock the locker also randomly generated 4-digit PIN code.
- Page 10 STEP 2: Sign "Pin" is flashing and beep acoustic signal is activated. Enter the PIN code and confirm it with key. NOTE: Sign "|" is displayed for each PIN digit entered. NOTE: key deletes last entry. STEP 3: If correct PIN code is entered, locker number is displayed and corresponding locker is unlocked and opened.
