DENECKE DCODE TS-C Quick Start Manual

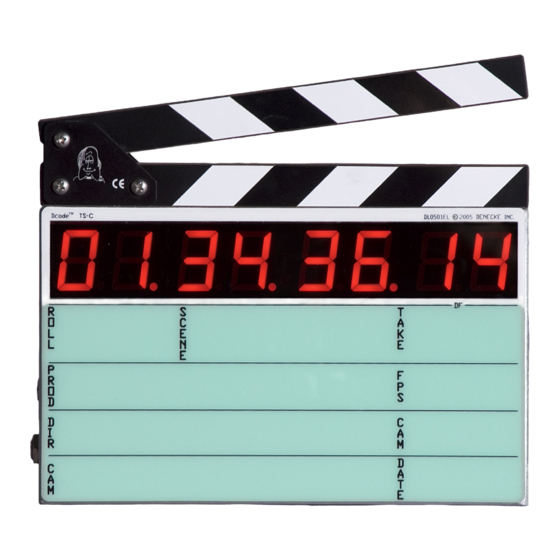

The Denecke TS-C is a compact full featured smart slate,
capable of reading, generating and displaying SMPTE/EBU
LTC time code. Its' new form factor makes the TS-C ideal
for documentary work or anywhere a big slate is too
cumbersome. The TS-C jams to all standard frame rates,
including 23.976 for HD. User Bits are set automatically
when jammed to an external time code. In manual set
mode, frame rates can be cross jammed. Auto set mode
automatically jams to the same frame rate as the incoming
time code. In time code reader mode, both ascending and
descending time code are read. The TS-C reads and
displays off speed time code used in special situations such
as music video playback. The time code reader can also be
configured as a "+1 frame reader" to display the time code
in real time (not a frame late). The TS-C is the first
Denecke product to support Aaton serial protocol. A high
precision TCXO is combined with a 16 bit microprocessor,
ensuring both extremely low drift and high accuracy. The
standard EL backlit face plate is very useful in low light
situations. The new Denecke TS-C compact slate is
affordably priced. Your choice of black and white or color
clapper sticks.
© 2005 Denecke, Inc.
Patent Pending
D
CODE
D
ENECKE
25030 Avenue Stanford • Suite 240 • Valencia, CA 91355 • (661)607-0206
www.denecke.com • email: info@dencke.com
®

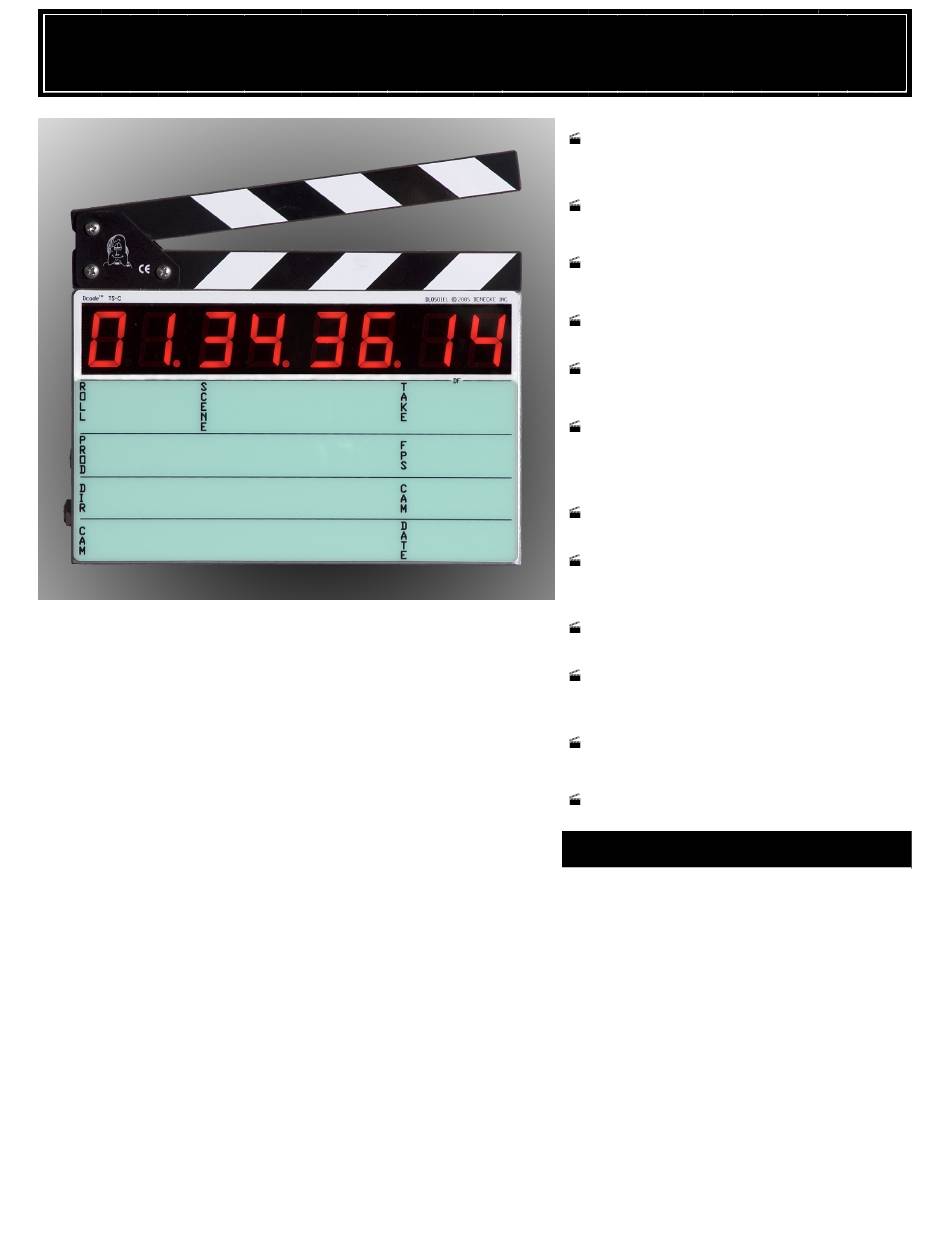

TS-C
Aaton serial communication via 5 pin Lemo
connector.
Electro-Luminescent (EL) backlit face plate.
Light weight – under 2 lbs. with batteries.
1/3 smaller than the TS-3.
Display intensity variable in 12 steps. Each step
is precisely equal to 1/2 f-stop in exposure.
16 Bit Flash microprocessor produces greater
accuracy and simplifies future firmware
upgrades.
Ability to auto set to incoming frame rates.
Battery voltage and low battery warning
readout.
Re-jam without powering down.
Sliding access door to controls and improved
quick load battery pack.
Sync error warning of differing frame rates.
Choice of either B&W or Color clapper sticks.
Size:
Weight:
TCXO:
Input:
Ext. Power:
Battery Pack:
[Note: Remove batteries when using external power!]
, I .
NC
SPECIFICATIONS
5.00" x 8.25" x 1.24"
1.90 lbs. with batteries
Typical ±0.2 ppm @ 23° C
±1 ppm @ -30° to +75° C
-15 db at 4.7k.
5.7v to 16v DC
6 alkaline "AA" batteries.
CE and FCC approved
