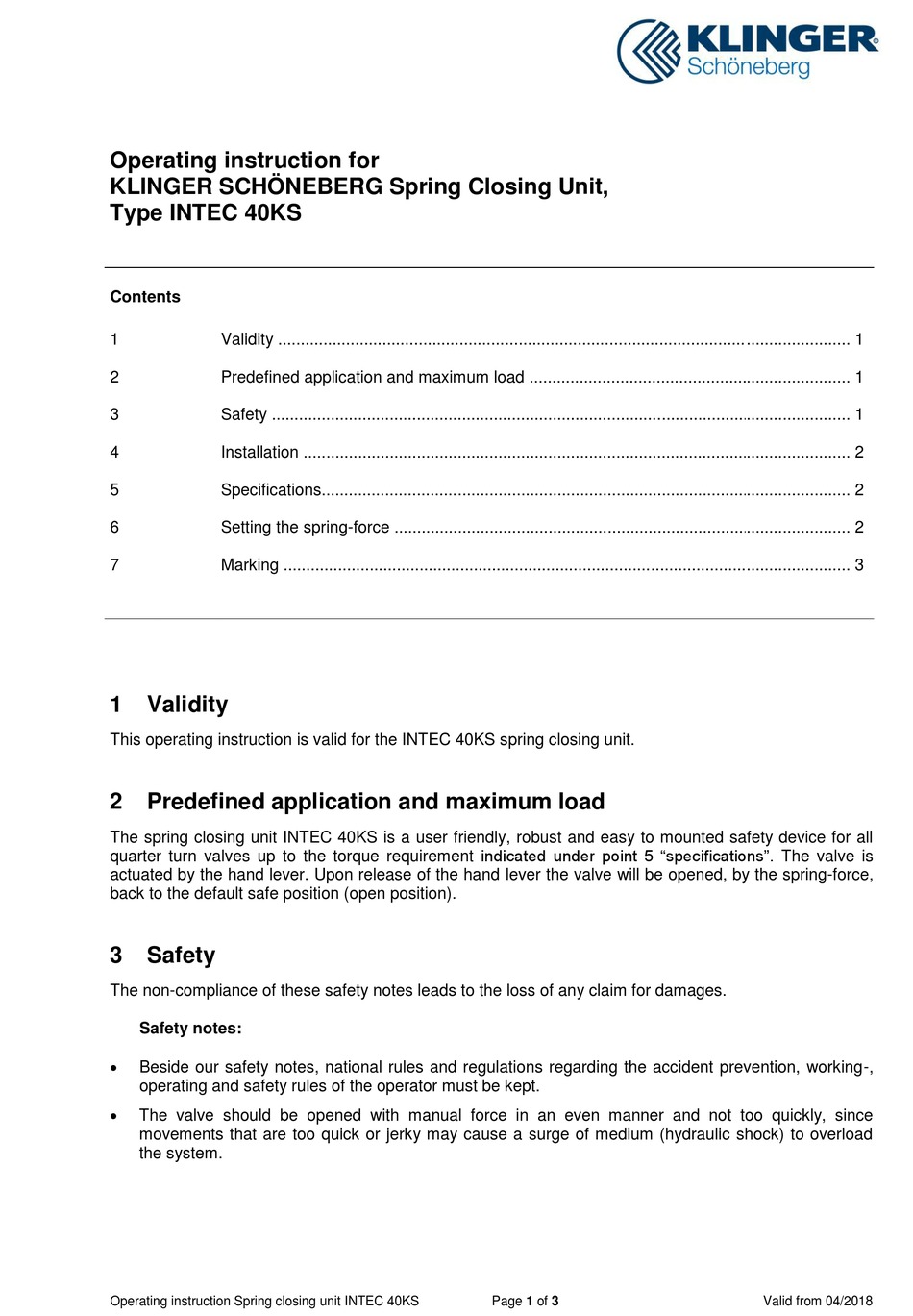

KLINGER INTEC 40KS Operating Instruction

Operating instruction for
KLINGER SCHÖNEBERG Spring Closing Unit,
Type INTEC 40KS
Contents
1

Validity ....................................................................................................... ........................ 1

2

Predefined application and maximum load ................................................ ........................ 1

3

Safety ......................................................................................................... ........................ 1

4 Installation .................................................................................................. ........................ 2
5 Specifications.............................................................................................. ........................ 2
6 Setting The Spring-Force .............................................................................. ........................ 2
7 Marking ...................................................................................................... ........................ 3
1 Validity
This operating instruction is valid for the INTEC 40KS spring closing unit.
2 Predefined application and maximum load
The spring closing unit INTEC 40KS is a user friendly, robust and easy to mounted safety device for all
quarter turn valves up to the torque requirement indicated under point 5 "specifications". The valve is
actuated by the hand lever. Upon release of the hand lever the valve will be opened, by the spring-force,
back to the default safe position (open position).
3 Safety
The non-compliance of these safety notes leads to the loss of any claim for damages.
Safety notes:

Beside our safety notes, national rules and regulations regarding the accident prevention, working-,
operating and safety rules of the operator must be kept.

The valve should be opened with manual force in an even manner and not too quickly, since
movements that are too quick or jerky may cause a surge of medium (hydraulic shock) to overload
the system.
Operating instruction Spring closing unit INTEC 40KS Page 1 of 3 Valid from 04/2018
