Blink SQUARE SENSE Instructions

Instructions SQUARE SENSE

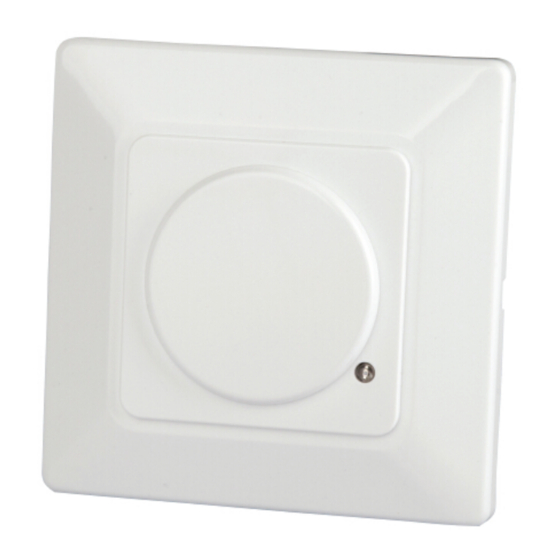

The Square Sense is a new product adopting the microwave sensor with high frequency electromagnetic waves (5.8Ghz),
gathering automatism, convenience, safety and energy saving in a smaller size. When someone enters its detection field,
it can start almost instantly and identify if its day or night.
It can detect through glass and thin walls.
I. Specifications
Power Sourcing 220-240 V/AC
Power Frequency 50Hz
Detection Range 180º
Detection Distance 5-15m (<adj.)
Ambient light 3-2000LUX (adj.)
Min. 10sec. 3sec. ±
Time Delay
Max. 12min. 2min. ±
Max. 1200W
Rated Load
300W
-20~+40
Working Temperature
Working Humidity <0.2mW
approx.0.9W
Power Consumption
Installation Heigh 1-1.8m
Detection Moving Speed 0.6-1.5m/s
HF System 5.8GHz CW radar
ISM band
II. Functions
The Square Sense can be set on two different time modes: Day and Night (explained in detail further on).
Sensibility adjustment, the Square Sense can set its detection range, changing it as the needs arise. If low sensitivity
is needed just set to 5 meters, otherwise change it to 15 meters.
Time-Delay is added continually: When it receives the second induction signal within the time frame of the first, it will
add up from the first signal.
The time that the lamp stays on, can be set manually, being the minimum 10s and the maximum 12 min.
NOTE:
The installation must be done by a qualified professional, which follows this instructions rigorously.
Before using, read this instructions carefully.
The high-Frequency output is lower than 0.2Mw.
All responsabilities for defects or damages are hereby rejected if caused by: incorrect assembling
of the product, incorrect supply, use of lamps not suitable for this product, external agents. BLI/209.EN
EU Reg nº 003469376 EU Reg nº 003469376
www.blink.com.pt www.blink.com.pt
III. Installation
Switch off the power.
Open the Square Sense faceplate and adjust the time and Lux knob (figure 1).
Loosen the screws on the connection terminal and conect the power cables as shown in the diagram (figure 4).
The Square Sensor permits instalation in circular and square holes. Round holes put it in and splay bolt on both sides
for square holes, put it on the hole and fix the srews trough the mounting hole (figure 3).
Put back the faceplate, and switch on the power.
IV. Caution
Do not install the Square Sense on uneven or shaky surfaces.
Be sure there aren't any object in front of the Square Sense, so the object doesn't obstruct the sensor.
Do not install the Square Sense near metal or glass, so it doesn't affect it.
For your safety, please don't open the case if you're feeling itching after the installation.
To avoid damage to the Square Sense, please use a safety device, such as a fuse (6A) when installing the sensor.
NOTE:
All responsabilities for defects or damages are hereby rejected if caused by: incorrect assembling
of the product, incorrect supply, use of lamps not suitable for this product, external agents. BLI/209.EN
Fig 1 Fig 2
Fig 4
When testing during daytime,turn the control dial towards the sun simbol otherwise the lamp won't turn on.
Fig 3
