Summary of Contents for Everyday Essentials PC22A

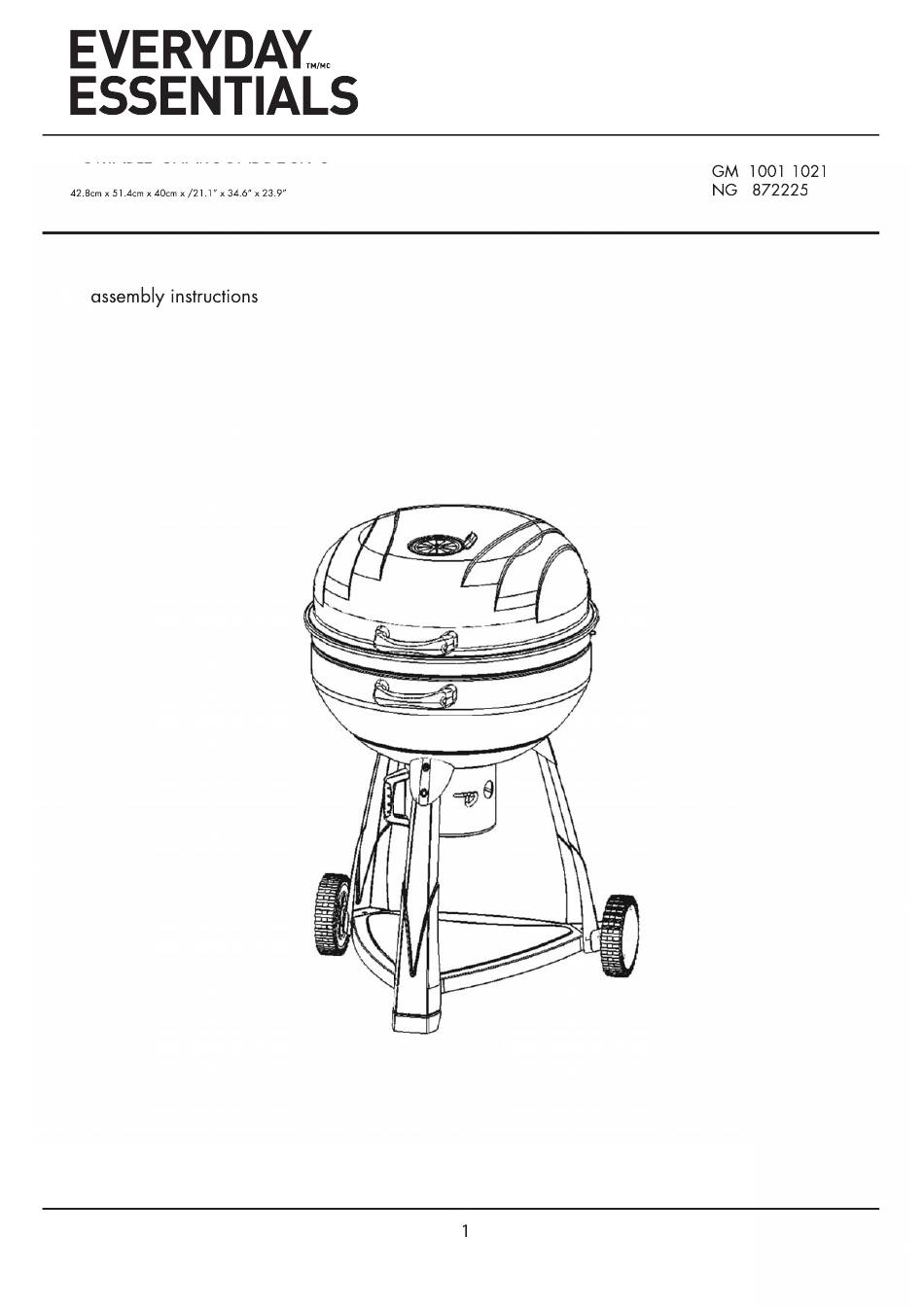

- Page 1 PORTABLE CHARCOAL DECK GRILL GM 1001 1021 NG 872225 42.8cm x 51.4cm x 40cm x /21.1” x 34.6” x 23.9” assembly instructions IMAGE OF PRODUCT LINE DRAWING...
- Page 2 PORTABLE CHARCOAL DECK GRILL WARNING: Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. Read the installation, operation and maintenance instructions thoroughly before installing or servicing this equipment. DANGER: Failure to follow these instructions could result in fire or explosion that could cause property damage, personal injury or death.
-
Page 3: Table Of Contents
Table of Contents For Your Safety........................3 Hardware list .........................4 Illustrated Parts List........................5 Assembly Instructions.........................6 Lighting Your Grill........................11 Award- Winning Barbecue Recipes..........12 Warranty Program..............13 For Your Safety WARNING 1. This grill is for outside use only, and should not be used in a building, garage or any other enclosed area. 2. -
Page 4: Hardware List
PC22A Hardware list AA 26PCS BB 18PCS CC 30PCS 6.2× 12×1.0 M6×12 Bolt M6 Nut Flat Washer DD:30PCS EE:2PCS FF:2PCS 6.2× 9×1.2 Wrench M8 Nut Spring Washer M5 Nut 5.2× 12×1.0 M5×12 Bolt Flat Washer 5.2× 8×1.2 Hair pin Screw driver... -
Page 5: Illustrated Parts List
Lid vent…..…1pc Cooking grid……1pc Right back leg…1pc … … … … … … Right up hinge……1 pc Left down hinge……1pc Caster ……2pcs Left up hinge……1 pc Right down hinge…1pc Caster cap……2pcs Lid handle……2 pcs Firebox ……1pc Axle……1pc Warming rack……1pc Ash pail ……1pc Cart bottom plate…1pc Warming rack support…1pc Left back leg…1pc... -
Page 6: Assembly Instructions
Assembly Instructions For Best Results Remove all contents from packaging and make sure all parts are present before attempting to assemble. Tighten all bolt connections by hand first. Once the grill is fully assembled, go back and tighten with screwdriver. Estimated Assembly Time: Approximately 10 to 15 minutes. - Page 7 Step 3 1. Put the firebox (L) onto top of three legs. 2. Align the holes on the firebox (L) with the holes on the top of three legs. 3. Insert one M6x12 bolt (AA), flat washer (CC) and spring washer (DD) into each pre- drilled holes by hand 4.
- Page 8 Step 6 1. Place charcoal grid (I) into fireboex (E) 2. Place cooking grid (H) onto charcoal grid (I) Step 7 1. Align the holes on the lid handle(E) with the holes on the lid (B) 2. Insert one M6 nut (BB), flat washer (CC) and spring washer (DD) into each pre-drilled holes by hand 3.
- Page 9 Step 8 Insert hair pin (KK), lid pin(MM) and M5 nut (NN).into each pre-drilled holes as lest shown, keeping firebox (E) and lid (B) connect together Step 9. 1. Place warning rack support (G) onto firebox (E) 2. Insert tip of the warmning rack onto wall of lid (B) and firebox (E) ９...
- Page 10 Step 10. Open the lid (B) Step 11 All full assembly １０...
-
Page 11: Lighting Your Grill
Lighting your grill 1. Make sure the lid and vents are open. 2. Remove the cooking grid. Pile adequate amounts of charcoal in the center of the charcoal grid and shape into a pyramid. 3. If you are using regular charcoal and intend to use lighter fluid, apply fluid according to the instruction on the container. Allow lighter fluid to soak into the charcoal for approximately 1 minute before lighting. -
Page 12: Award-Winning Barbecue Recipes
Award-Winning Barbecue Recipes Hardcore Grilled Trout Never Fail Barbecue Sauce Ingredients: Ingredients: ¼ cup Finely Chopped Onion 1/4 cup Lemon or Lime Juice 2 tablespoons Butter or Margarine 2 tablespoons Melted Butter 2 tablespoons Vegetable Oil ¼ cup Brown Sugar, Firmly Packed 2 tablespoons Chopped Parsley 1 tablespoon... -
Page 13: Warranty Program
Warranty Program Proof of purchase is required to access this warranty program, which is in effect from the date of purchase. Inability to provide proof of purchase or after the warranty has expired, customers will be subject to parts, shipping and handling fees. Full 30-Day Warranty Any missing parts can be replaced at no charge within 30 days from the date of purchase, with a valid proof of purchase.
