Matchmaster 34MM-IRKIT Instruction Manual

34MM-IRKIT
INSTRUCTION MANUAL

CONTENTS

1x 34MM-IRCM - IR Extender Control Module
with RJ45 RX/TX
1x 34MM-IR-RX - IR Receiver
1x 34MM-IR-TX - Dual IR Transmitter
1x Power Supply 12V @ 1A DC

INSTALLATION

1. Connect a 12VDC @ 1A power supply to the power jack.
2. The green LED will be illuminated when powered. This will
power all of the IR components connected to the system.
3. Connect the IR receiver directly into the side of the
34MM-IRCM connecting block.
4. Connect the 34MM-IR-TX double emitters to any of
the 3x 3.5mm emitter ports as required.
5. Attach the emitter eye as close to the IR window on
the component as you can with the supplied
double sided tape.
Local
Extended
Multiple TV's
34MM-IR4X accessory sold separately
Multiple Sources
34MM-IR-TX accessory sold separately
PAGE 1 OF 2 | AU SUPPORT 1800 237 425 WWW.MATCHMASTER.COM.AU

IR Receiver Placement

IR Receiver Placement
Yellow
Green
Red

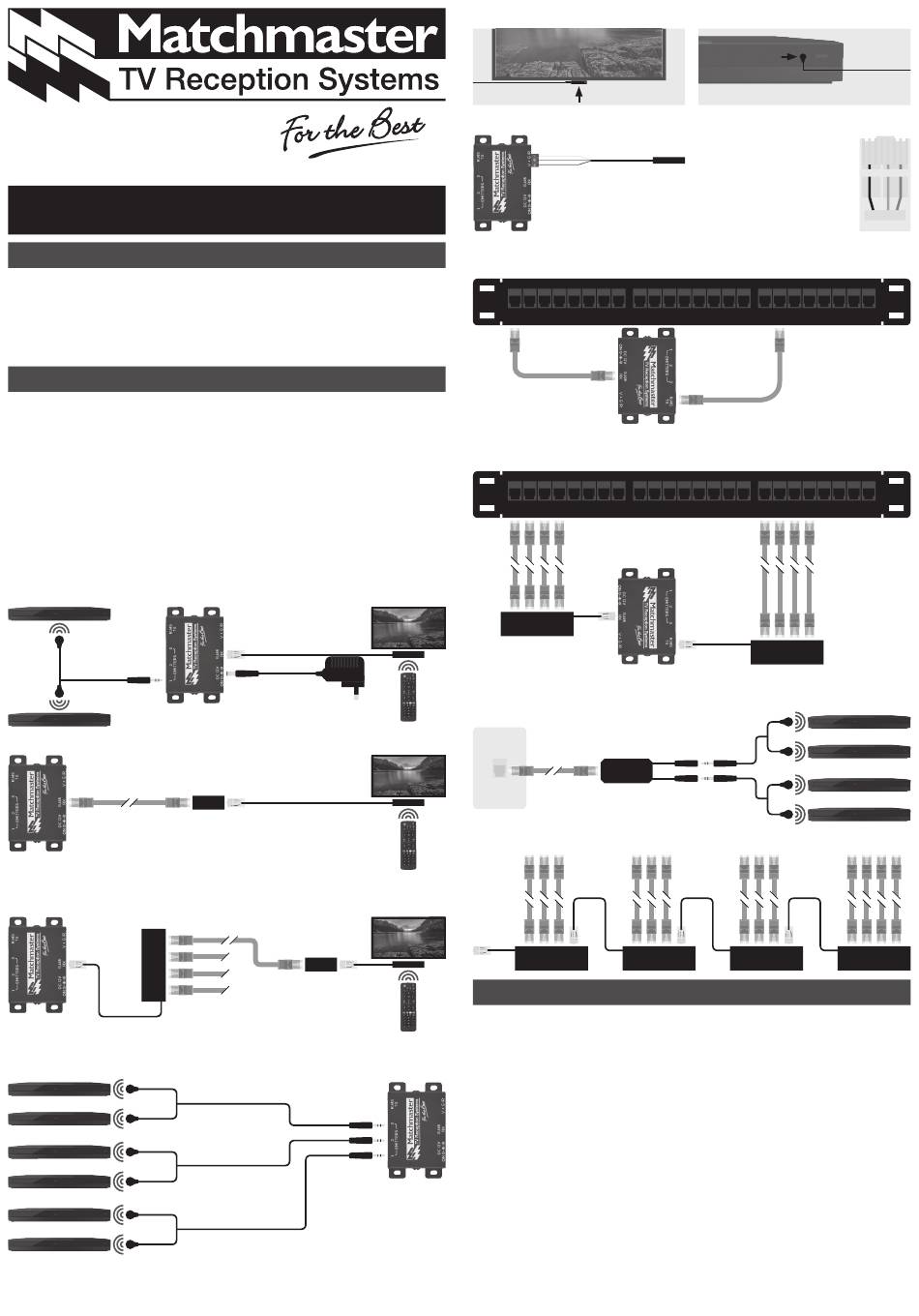

Distribution Over CAT5/6 Structured Cabling System

1x RX to 1x TX
1 2 3 4 5 6 7 8 9

Multiple RX to Multiple TX

34MM-IR4X accessory sold separately
1 2 3 4 5 6 7 8 9
Converting CAT5/6 Back to IR
34MM-IRMJ accessory sold separately
Daisy Chaining 34MM-IR4X

ACCESSORIES

34MM-IRCM IR Extender Control Module with RJ45 RX/TX
34MM-IR-TX IR Transmitter
34MM-IR-RX IR Receiver
34MM-IR4X IR Expansion Block 1x RJ45 Plug to
4x RJ45 Socket
34MM-IRMJ IR Adaptor 1x RJ45 Socket to 2x 3.5mm Socket
(Mini Jack)
| NZ SUPPORT 0800 237 425 WWW.MATCHMASTER.CO.NZ

IR Emitter Placement

IR WINDOW

RJ45 Pinout

1. Empty 5. Green
2. Black 6. Empty
3. Empty 7. Red
4. Yellow 8. Empty
