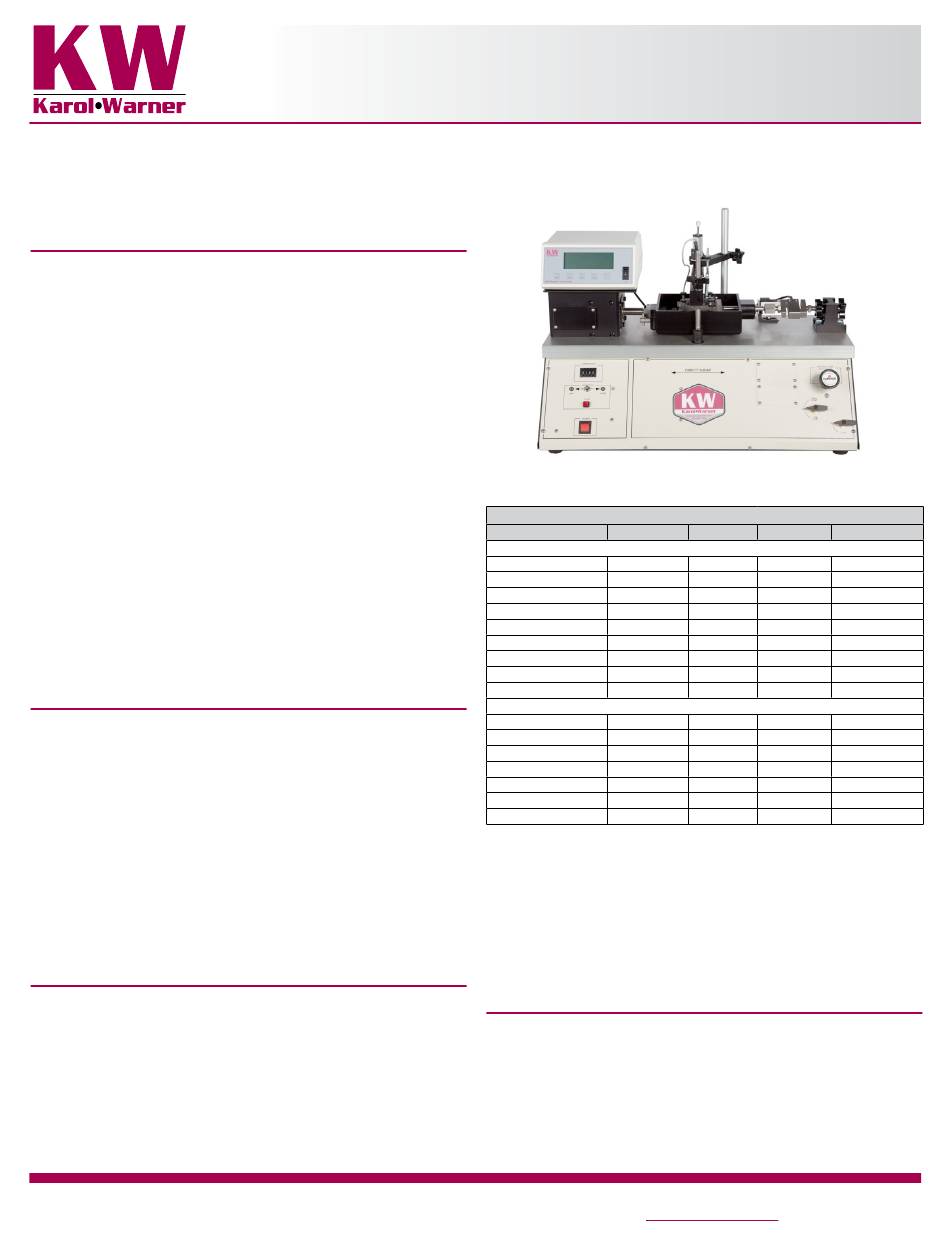

Model 2001-D, 2001-DF Direct Shear Machine

INTRODUCTION

The Karol Warner model 2001-D Direct Shear Machine
is a tabletop unit that provides direct or direct/residual
shear values for evaluating the strength and stability of
soils. This device utilizes a pneumatic loading piston
for applying the vertical load to the sample. A calibra-
tion chart is included for setting the high load or the low
load via the Fairchild Regulator while a built-in digital
readout displays the vertical load in psi.
This Direct Shear Unit has a strain rate of 0.0001 – 0.3
in/min (0.0025 – 7.62 mm/min) with a maximum shear
displacement of 0.8in (20.3mm) and the travel speed
is set with the thumbwheels on the left side of the unit.
The residual shear force is determined by a load cell
and while real time load settings and peak load are dis-
played on the digital readout. Consolidation and shear
displacement are measured with Displacement trans-
ducers and displayed on a digital readout.

FEATURES

Total shear capacity of 1,500lbf (6.67kN)
Stepper motor controls strain rates to +/- 1% from
0.0001 – 0.3in/min (0.0025 – 7.62mm/min
• T eflon coated anodized aluminum water chamber
with drainage port included.
Meets
requirements
AASHTO T 236

REQUIRED ACCESSORIES (purchased separately)

Direct Shear boxes are sold separately and are
available in a wide range of inch and metric sizes
with round or square shapes. See all options at
www.karolwarner.com and in chart below.
– Direct Shear Boxes and Accessories
PHONE: 800-999-SOIL (7645)
410-987-7330
for ASTM
D3080
PO Box 1213 Powell, OH 43065
E-mail: customerservice@karolwarner.com Product Web Page:
OPERATING MANUAL
Direct Shear Boxes & Accessories
Size
1.93 in (49mm)
1.97in (50mm)
2.0in (50.8mm)
2.36in (60mm)
2.42in (61.5mm)
2.5in (63.5mm)
2.76in (70mm)
3.94in (100mm)
4.0in (101.6mm)
1.97in (50mm)
2.0in (50.8mm)
2.36in (60mm)
2.42in (61.5mm)
2.5in (63.5mm)
3.94in (100mm)
4.0in (101.6mm)
A constant supply of compressed air at 90psi
(6.2 bar) is required for use.
and
A computer or laptop for connecting to the data
readout.
UNPACKING & SETUP
Inspect your Direct/Residual Shear Machine for
damage, remove from the pallet.
Place Direct Shear Machine on a sturdy, level sur-
face, such as a bench top or Model 2099 Rolling
Cart for Shear Machines.
1
2001D
Shear Box
Cutters
Extruders
Round Direct Shear Boxes
20050
-
-
20049
20149
2049DE
20051
20151
2050DE
20057
20157
2057DE
20052
20152
2052DE
20053
20153
2053DE
20059
20159
2059DE
20055
20155
2055DE
20054
20154
2054DE
Square Direct Shear Boxes
20049S
20149S
2049SE
20051S
20151S
2051SE
20057S
20157S
2057SE
20052S
20152S
2052SE
20053S
20153S
2053SE
20055S
20155S
2055SE
20054S
20154S
2054SE
www.karolwarner.com
Porous Stones
50191014
50195314
50198514
50234514
50240014
50248514
50274014
50393714
50398514
50195314S
50198514S
50234514S
50240514S
50248514S
50393714S
50398514S
Rev: 05/2020
FAX: 410-987-2124

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2001-D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for KW 2001-D

  • Page 1 OPERATING MANUAL Model 2001-D, 2001-DF Direct Shear Machine INTRODUCTION The Karol Warner model 2001-D Direct Shear Machine is a tabletop unit that provides direct or direct/residual shear values for evaluating the strength and stability of soils. This device utilizes a pneumatic loading piston for applying the vertical load to the sample.
  • Page 2 • Review the Connections section and install neces- for determining how much gap each screw has provid- sary components. ed. The screws should be turned evenly to maintain a proper gap. At the bottom of each screw is a nylon glide which keeps the top shear ring from dropping during the test.
  • Page 3 Limit Switches – These switches are located on the 6. Adjust the LVDT by raising or lowering the indicator platform behind the water chamber. rod and holder so the tip of the LVDT is resting on the cross arm pin. Adjustment of these switches is made by loosening the Phillips-head screws and moving the limit switch as- Consolidation...
  • Page 4 6. The water chamber with shear box will continue to move at the set rate until the limit switch is activated or the STOP button is pressed. 7. Load and Shear Displacement will be displayed on channels 1 and 2 of the digital readout box and transferred to an Excel file or the Direct Shear Data Acquisition Software on the users connected com- puter.
