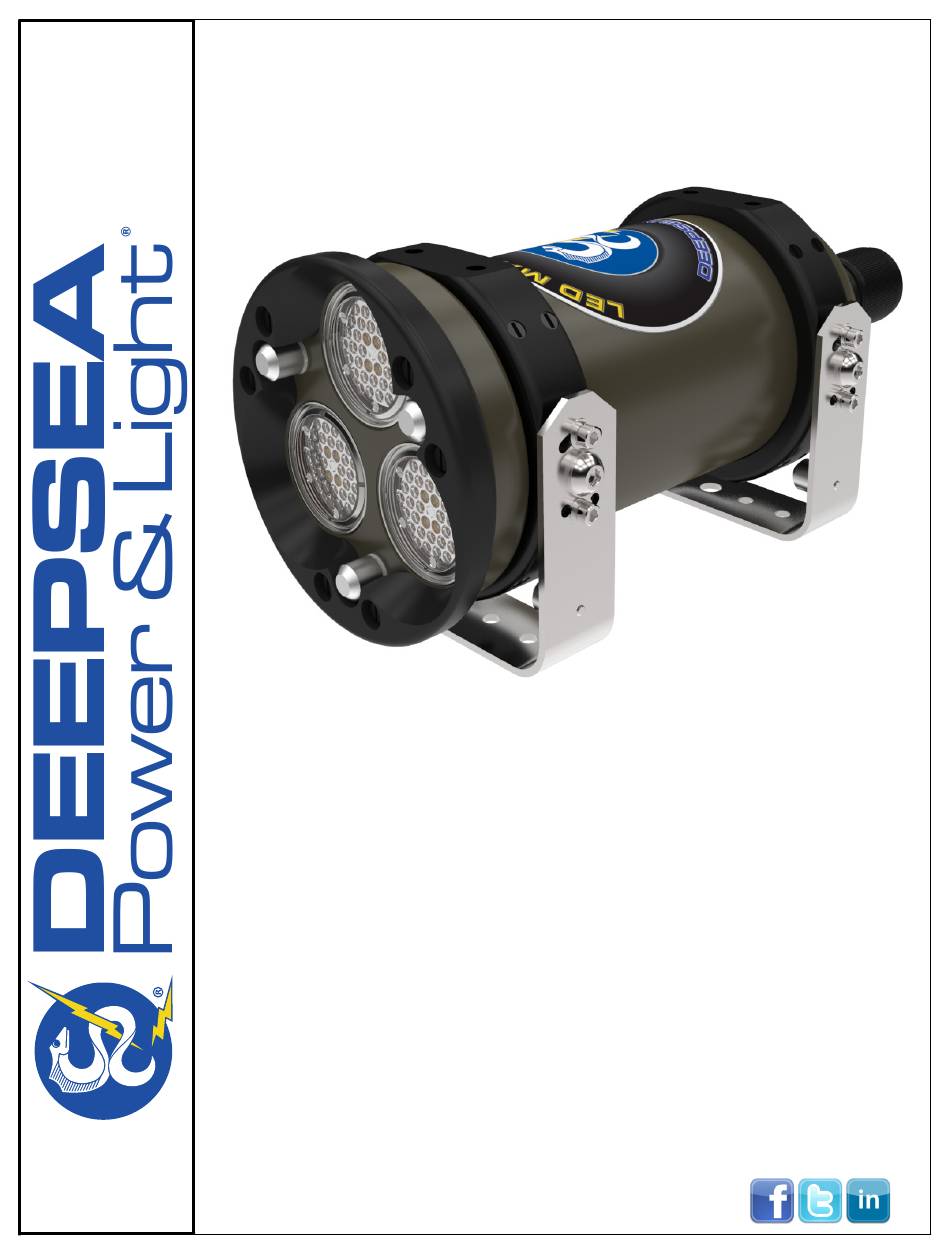

- Page 1 LED Matrix - 3 SeaLite ® ® Operator’s Manual 4033 Ruffin Road (858) 576-1261 www.deepsea.com San Diego, CA (858) 576-0219 sales@deepsea.com 92123- 1817 USA Rev. 08/27/18...
-
Page 2: Specification Overview
LED Matrix - 3 SeaLite Operator’s Manual ® ® Specification Overview Mechanical Specifications Body Material Hard Anodized Aluminum (7075) Window Material Sapphire Mounts High Strength Stainless Steel Yoke (standard) Air Weight 3.98 kg [8.8 lbs] Water Weight 1.84 kg [4.06 lbs] Implodible Volume 740 cm [45.16 in... -
Page 3: Table Of Contents
Operator’s Manual LED Matrix - 3 SeaLite ® ® Table of Contents Specification Overview Table of Contents Safety Symbols General Notes & Warnings Pre Dive Inspection Post Dive Inspection Troubleshooting and Maintenance Problems and Causes External Maintenance Recommended Spares Optional Spares Replacing Zinc Anodes Internal Maintenance RMA Procedure for Repair... -
Page 4: Safety Symbols
General Notes and Warnings persons and valuables. Corrosion Warning: The LED Matrix-3 SeaLite is made Do not run this LED Matrix-3 SeaLite outside the from superior strength aluminum alloy 7075 to make it as recommended voltage range. lightweight as possible. It has been hard anodized and... -
Page 5: Pre Dive Inspection
A Ground Fault Interrupt should be used whenever high voltage lights are being utilized; when divers are in the water If your LED Matrix-3 SeaLite is not operational, make this is especially critical! Do not operate certain power is being delivered to the mating connector AC-powered lights without a GFCI! on the appropriate pins. -
Page 6: Optional Spares
Tel: (858) 576-1261 Fax: 858-576-0219 Tools required: Flat blade screwdrivers, Pliers e-mail: RMA@deepsea.com 1. Be certain the LED Matrix-3 SeaLite is powered Limited Warranty off. 2. Using the flat blade screwdriver, remove the Seller warrants that the goods (except internal electronic 6 screws holding the crash guard to the body. -
Page 7: Appendix A: Beam Patterns
Operator’s Manual LED Matrix - 3 SeaLite ® ® Appendix A Beam Patterns Beam Pattern Radial Lux Distribution -85 -80 1400 FWHP Beam Angle: 51.0° Peak Illumination: 1240 Lux 1200 1000 Beam Pattern Angular Distribution 100% -90° -70° -50° -30° -10°...
