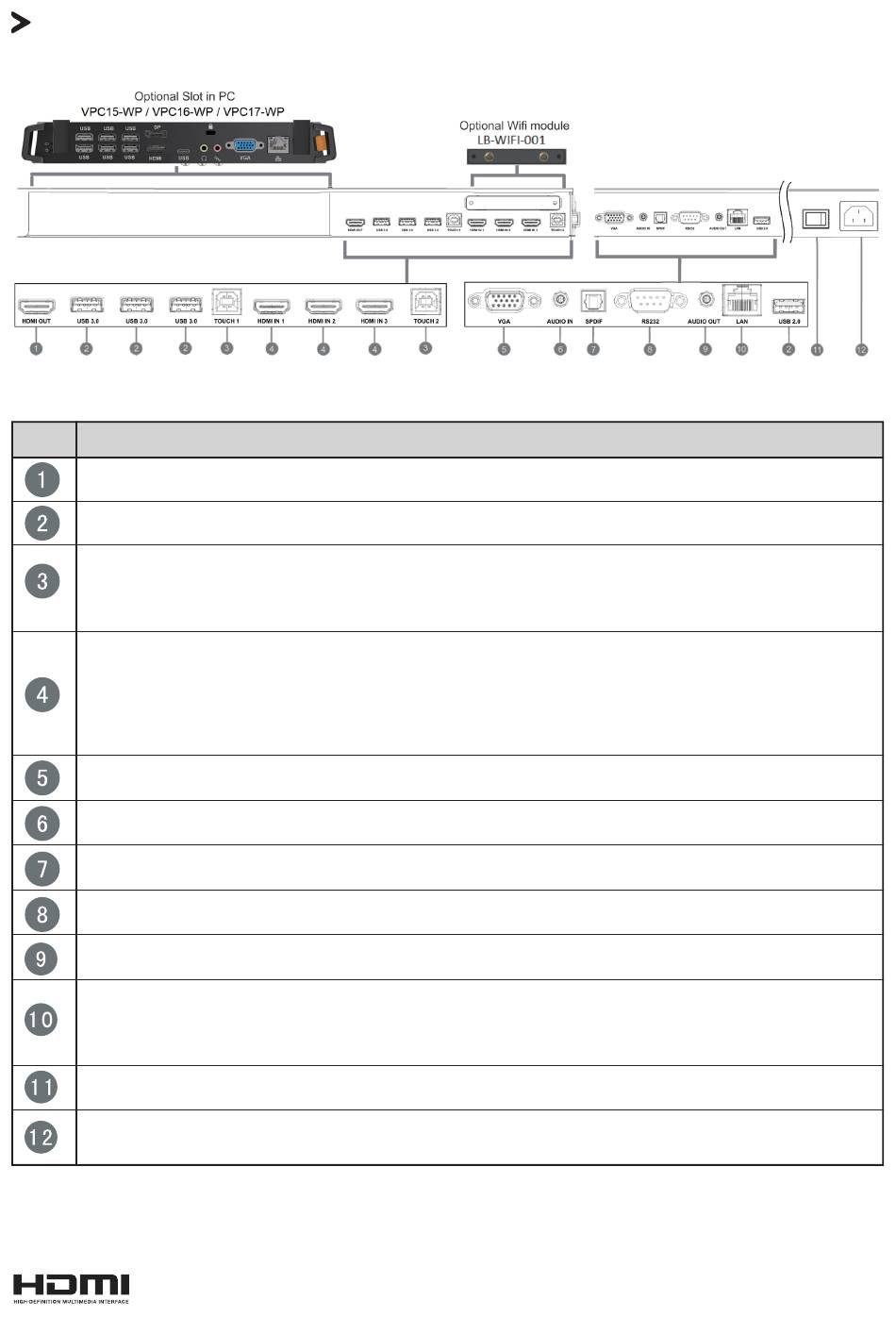

Terminal Interface Overview

Item Description
Extend content out to another display device
USB port for Embedded Player and internal PC
Touch signal output to the external PC
Touch 1 for HDMI IN 2 and 3
Touch 2 for HDMI IN 1 and VGA IN
High-defini�on mul�media interface signal input, connect to PC with HDMI output, set-top box, or other
video device
HDMI 1, 2, 3 support up to 3840x2160@60Hz, HDCP 2.2
HDMI 1, 2, 3 support HDMI CEC(One Touch Play, System Standby, par�al Remote Control Pass Through)
External computer image input
External computer audio input
SPDIF output
Serial interface, used for mutual transfer of data between devices
Audio output to the external speaker
Standard RJ45 (10M/100M/1G) Internet connec�on interface
• Used for the Embedded Player and Slot-in PC
Power On / Off switch
AC power input
